5.1.2 Installation and Removal
Attachment to DIN rail and removal from DIN rail
The FPΣ unit enables simple attachment to DIN rails.
Procedure of installation method
1
Fit the upper hook of the unit onto the DIN
rail.
2
Without moving the upper hook, press on the
lower hook to fit the unit into position.
1
2

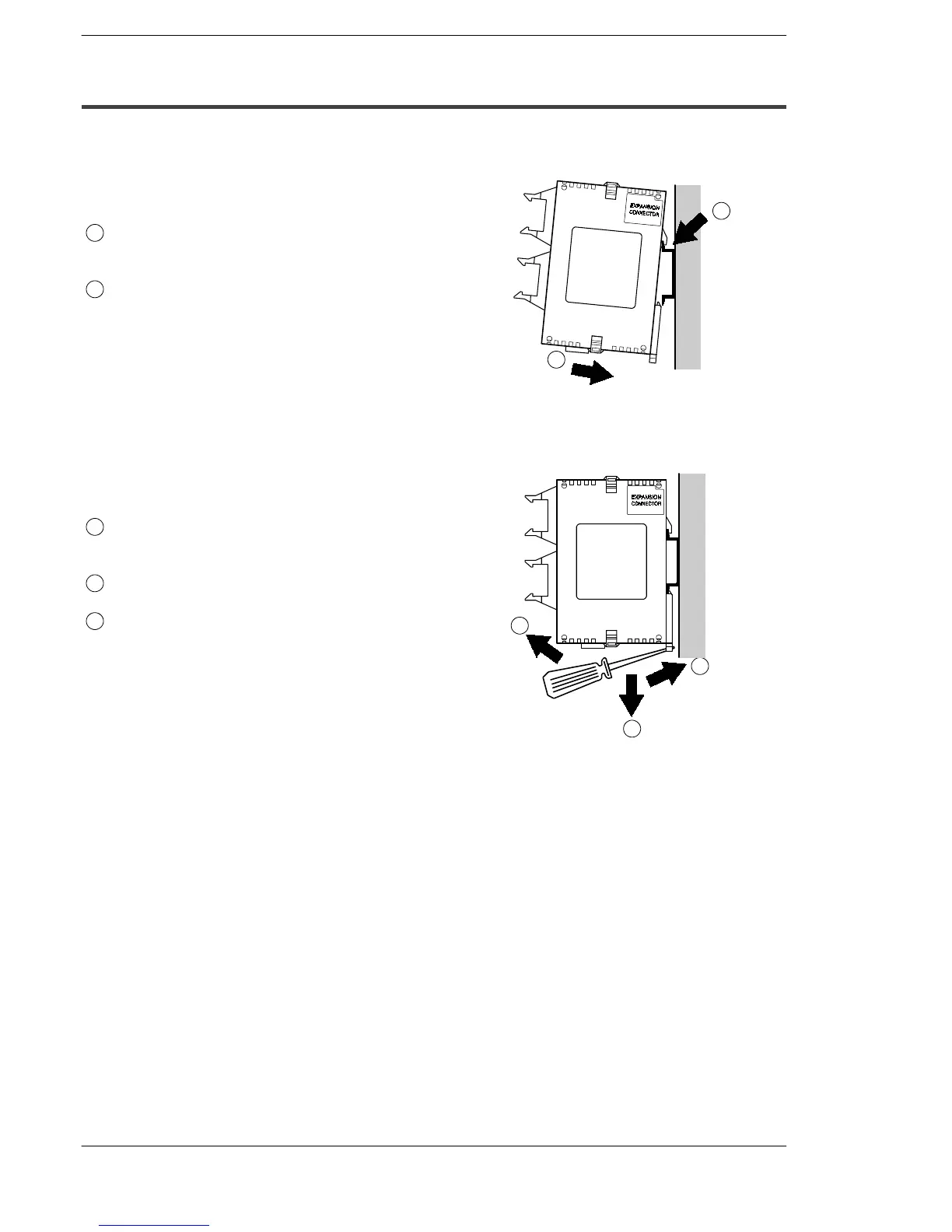

Figure 27: Installation method
Procedure of removal method
1
Insert a slotted screwdriver into the DIN rail
attachment lever.
2
Pull the attachment lever downwards.
3
Lift up the unit and remove it from the rail.
1
2
3
Figure
28: Removal method
