5.1 Installation
5-5
Installation space
Leave at least 50 mm/1.97 in. of space between the wiring ducts of the unit and other
devices to allow heat radiation and unit replacement.
50 mm/1.97 in.
or more
50 mm/1.97 in.
or more

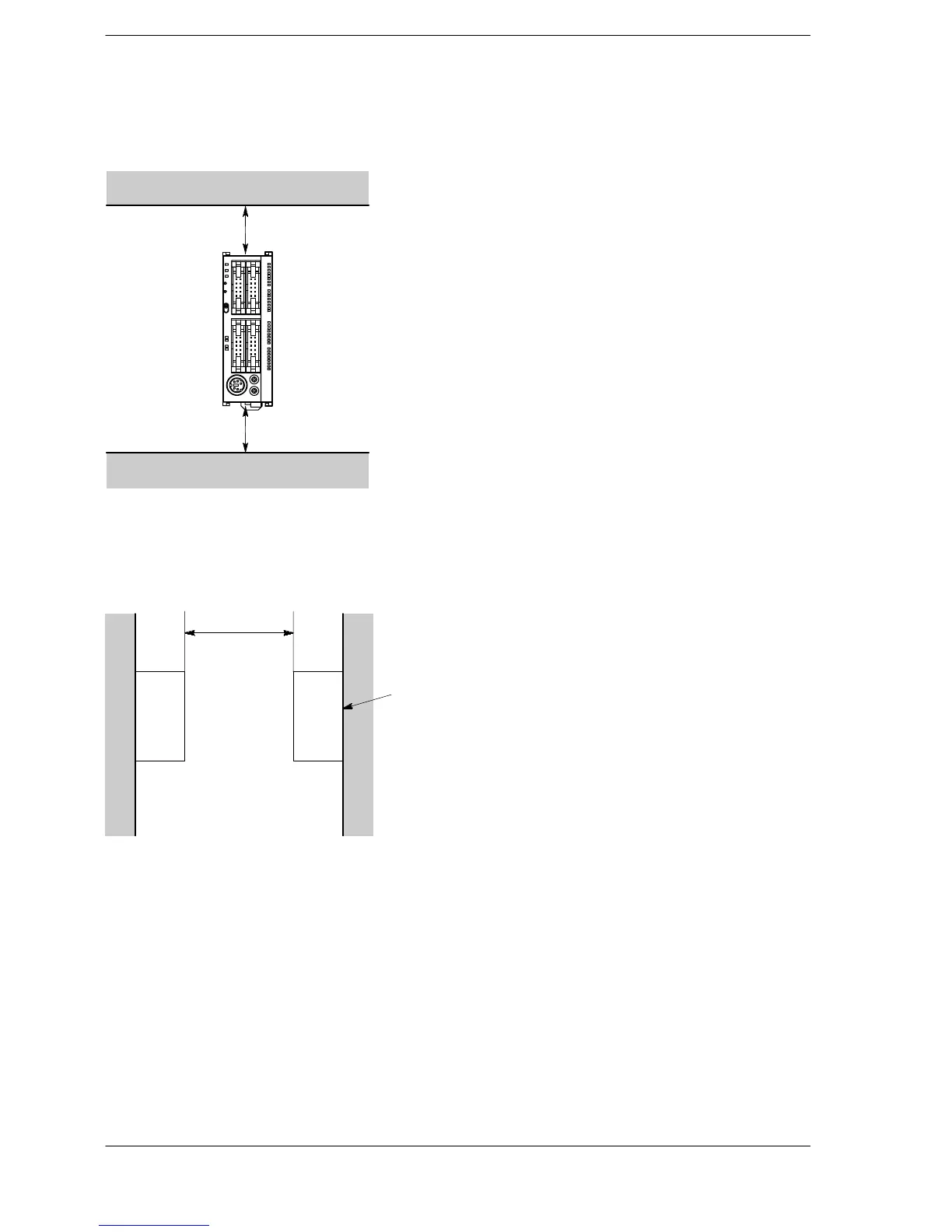

Figure 25: FPΣ Installation space-1
Maintainaminimumof 100mm/3.937 in.betweendevicesto avoidadverseaffectsfrom
noise and heat when installing a device or panel door to the front of the PLC unit.
100 m m/
3.937 in.
or more
PLC unit
Panel door
Other device
Figure 26: FPΣ Installation space-2
Keep the first 100 mm/3.937 in. from the front surface of the control unit open in order
to allow room for programming tool connections and wiring.
