NAiS FP Series User Manual

FPΣ
Installation and Wiring
5-20

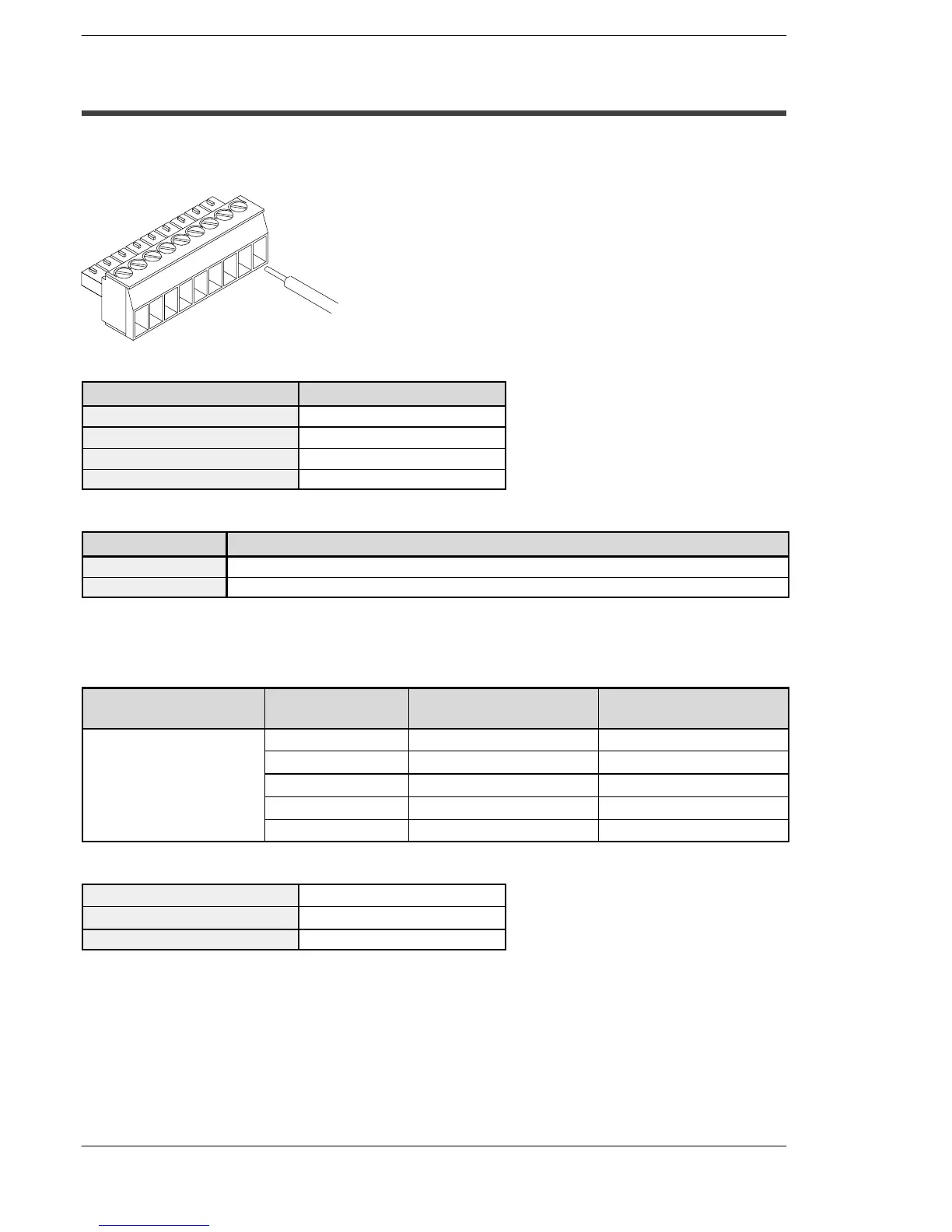

5.5 Wiring of Terminal Block Type
A screw-down connection type for terminal block is used. The suitable wires are given
below.
Terminal block socket
Item Description
Number of pin 9 pins
Manufacturer Phoenix Contact Co.
Model MC1,5/9-ST-3,5
Product number 1840434
Suitable wires
Size Nominal cross-sectional area
AWG #22 0.3 mm
2
AWG #24 to 16 0.2 to 1.25 mm
2
Pole terminal with a compatible insulation sleeve
If a pole terminal is being used, the following models are marketed by Phoenix Contact
Co.
Manufacturer
Cross-sectional
area (mm
2
)
Size Part No.
Phoenix Contact Co.
0.25
A
WG #24
AI 0,25 - 6YE
0.50
AWG #20
AI 0,5 - 6WH
0.75
AWG #18
AI 0,75 - 6GY
1.00
AWG #18
AI 1 - 6RD
0.5 x 2
AWG #20 (for 2 pcs.)
AI - TWIN 2 x 0.5 - 8WH
Pressure welding tool for pole terminals
Manufacturer
Phoenix Contact Co.
Part No.
CRIMPFOX UD6
Product number
12 04 43 6
Whentighteningtheterminalsofthe terminalblock,useascrewdriver(PhoenixContact
Co., Product No. 1205037)with a blade size of 0.4 × 2.5. The tightening torque should
be 0.22 to 0.25 N
⋅
m (2.3 to 2.5 kgf
⋅
cm) or less.
