1.3 Restrictions on Unit Combinations
1-7
1.3 Restrictions on Unit Combinations
This section contains restrictions on unit combinations.
1.3.1 Restrictions on the Number of Expansion Units
(for FP0 expansion unit)
Control unit Unit 1 for expansion
(Maximum possible
expansion is with a
total of three units)
Unit 2 for expansion Unit 3 for expansion

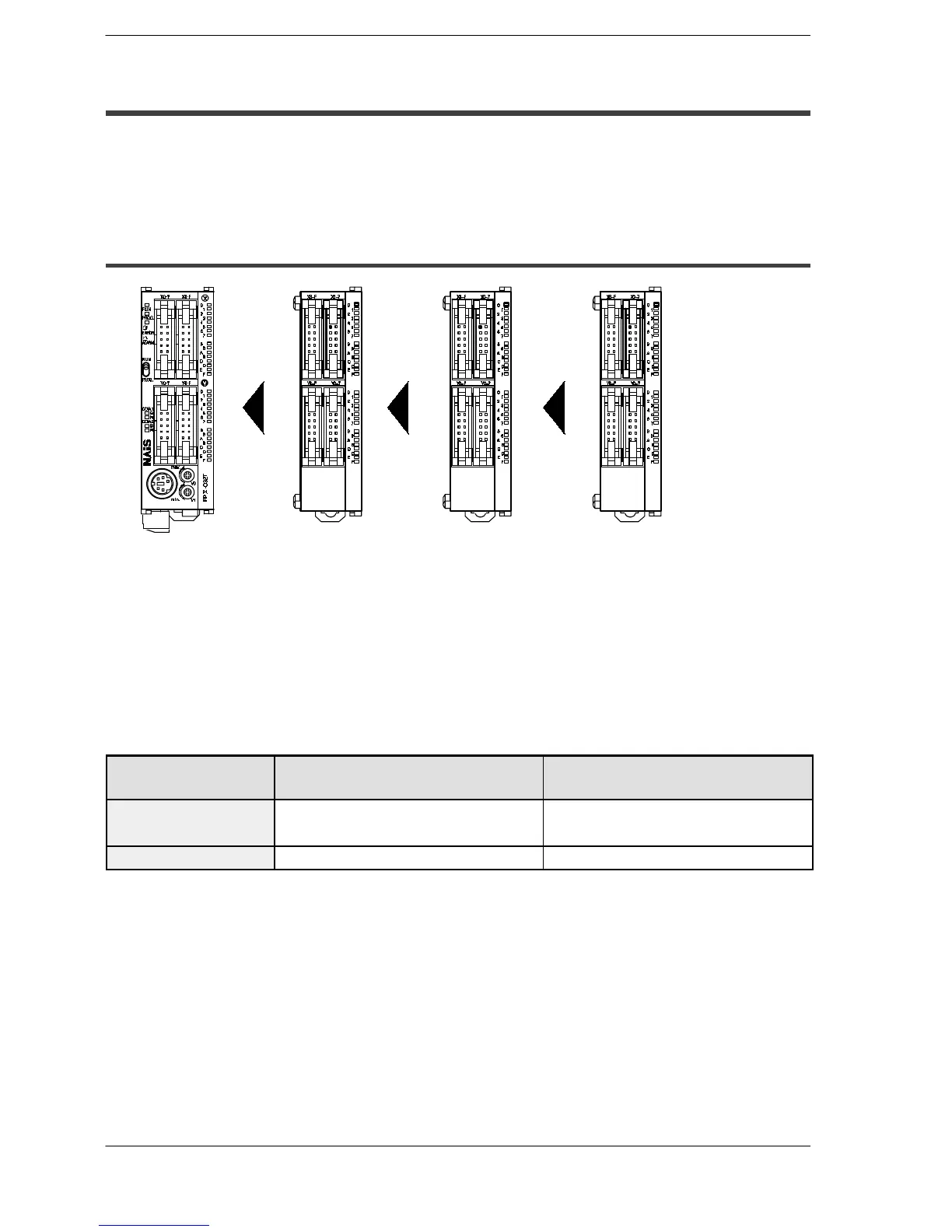

Figure 6: Restriction on unit combinations
Up to three expansion units can be added at the right of the FP
Σ
, these expansion units being
either expansion units or intelligent units from the earlier FP0 series, or a combination of the
two.
There are no restrictions on the type and the order in which expansion units are installed.
A combination of relay output types and transistor output types is also possible.
Controllable I/O Points
Type of control unit
Number of I/O points when using
control unit
Number of I/O points when using
FP0 expansion unit
FPG-C32T
FPG-C32T2
32 points Max. 128 points
FPG-C24R2 24 points Max. 120 points
