NAiS FP Series User Manual

FPΣ
5.4 Wiring of MIL Connector Type
5-17

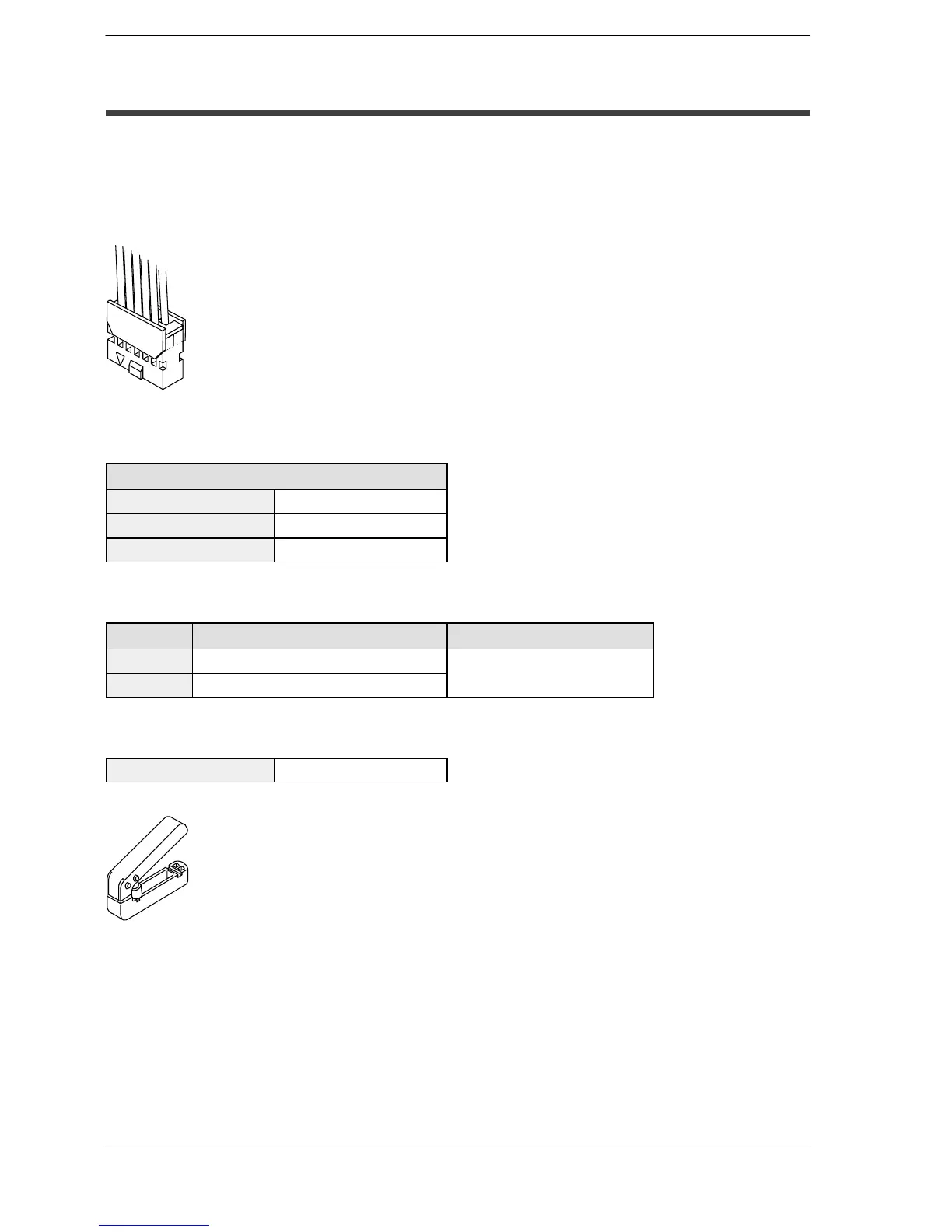

5.4 Wiring of MIL Connector Type
Supplied connector and Suitable wires
The connector “housings,semi-cover and welders” listed below come supplied with the
FP
Σ
control unit.
Use the suitable wires given below. Also, use the required pressure
connection tools for connecting the wires.
Figure 47: FPΣ Supplied MIL connector
Supplied connector (AFP0807)
Type and Product No.
Housing 10-pin type only
Semi-cover AXW61001
Welder (contact) AXW7221
Suitable wires
Size Conductor cross-sectional area Insulation thickness
AWG#22 0.3 mm
2
dia. 1.5 to dia. 1.1
AWG#24 0.2 mm
2
Pressure connection tool
Product No. AXY52000
Figure 48: FPΣ Pressure connection tool
