FPΣ
Installation and Wiring
5-18

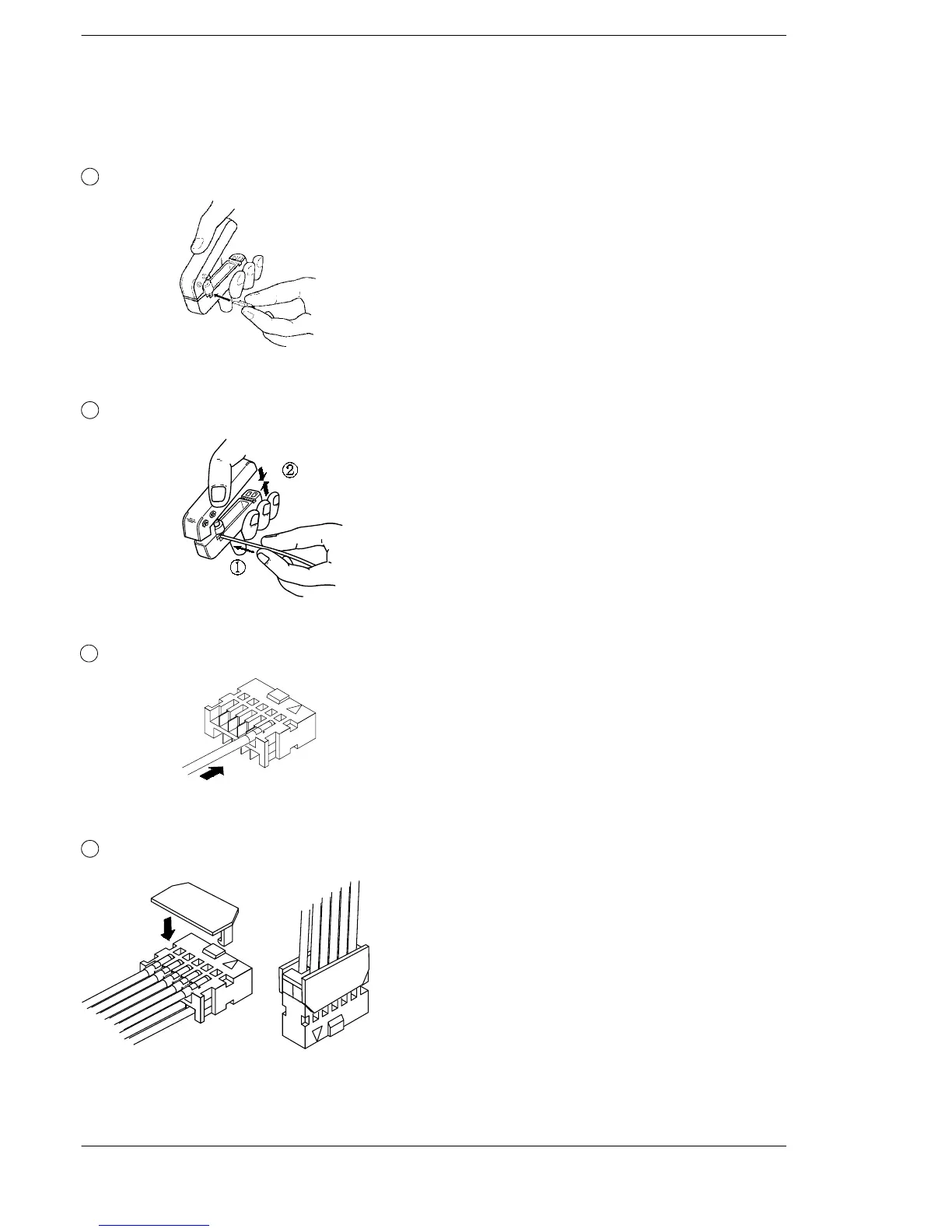

Procedure of assembly (Wiring method)
The wire end can be directly crimped without removing the wire’s insulation, saving
labor.
1
Bend the welder (contact) back from the carrier, and set it in the pressure connection
tool.
Figure 49: FPΣ MIL connector assembly procedure-1
2
Insert the wire without removing its insulation until it stops, and lightly grip the tool.
Figure 50: FPΣ MIL connector assembly procedure-2
3
After press-fitting the wire, insert it into the housing.
Figure 51: FPΣ MIL connector assembly procedure-3
4
When all wires has been inserted, fit the semi-cover into place.
Figure 52: FPΣ MIL connector assembly procedure-4
