FPΣ
Specifications
13 - 22

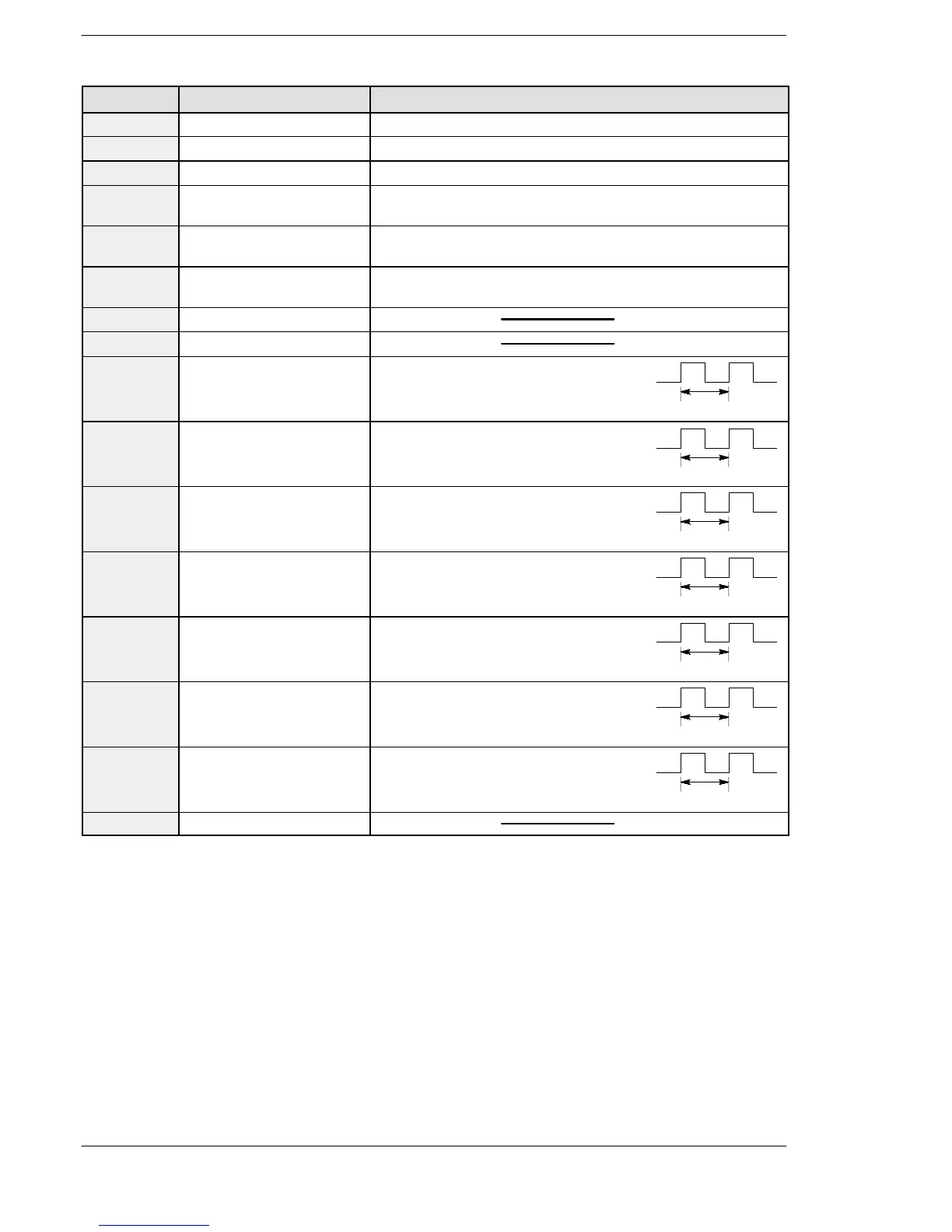

Relay No. Name Description
R9010 Always on relay Always on.
R9011 Always off relay Always off.
R9012 Scan pulse relay Turns on and off alternately at each scan
R9013 Initial (on type) pulse relay This goes on for only the first scan after operation (RUN) has been
started, and goes off for the second and subsequent scans.
R9014 Initial (off type) pulse relay This goes off for only the first scan after operation (RUN) has been
started, and goes on for the second and subsequent scans.
R9015 Step ladder initial pulse relay
(on type)
Turns on for an instant only in the first scan of the process the mo-
ment the step ladder process is opened.
R9016 Not used
R9017 Not used
R9018 0.01 s clock pulse relay
Repeats on/off operations in 0.01 s cycles.
0.01 s
R9019 0.02 s clock pulse relay
Repeats on/off operations in 0.02 s cycles.
0.02 s
R901A 0.1 s clock pulse relay
Repeats on/off operations in 0.1 s cycles.
0.1 s
R901B 0.2 s clock pulse relay
Repeats on/off operations in 0.2 s cycles.
0.2 s
R901C 1 s clock pulse relay
Repeats on/off operations in 1 s cycles.
1s
R901D 2 s clock pulse relay
Repeats on/off operations in 2 s cycles.
2s
R901E 1 min clock pulse relay
Repeats on/off operations in 1 min cycles.
1 min
R901F Not used
