operating your appliance
This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a
continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s
carbon footprint as well as reducing its annual fuel consumption and operating costs.
In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote
or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is
satisfi ed), the main burner and pilot fl ame will shut down.
The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in
colder climates and extreme weather by keeping the system warm when the main burner is not in use. However,
the timer feature provides the convenience that the appliance automatically switches off the pilot when the
appliance has not been used for seven days to save unnecessary fuel consumption.
When the CPI function is turned on, the pilot will remain on after the main burner
is turned off. A timer will then begin the countdown for approximately seven days
before shutting off the pilot if the appliance is not used. This countdown will reset
anytime the appliance main burner is used. Therefore, if the appliance is regularly
used day to day, the pilot will remain on. However, this system does not require
the user to remember to turn the pilot off as summer approaches and avoids
unnecessary fuel consumption while still readily turned back on when the cold
weather returns.

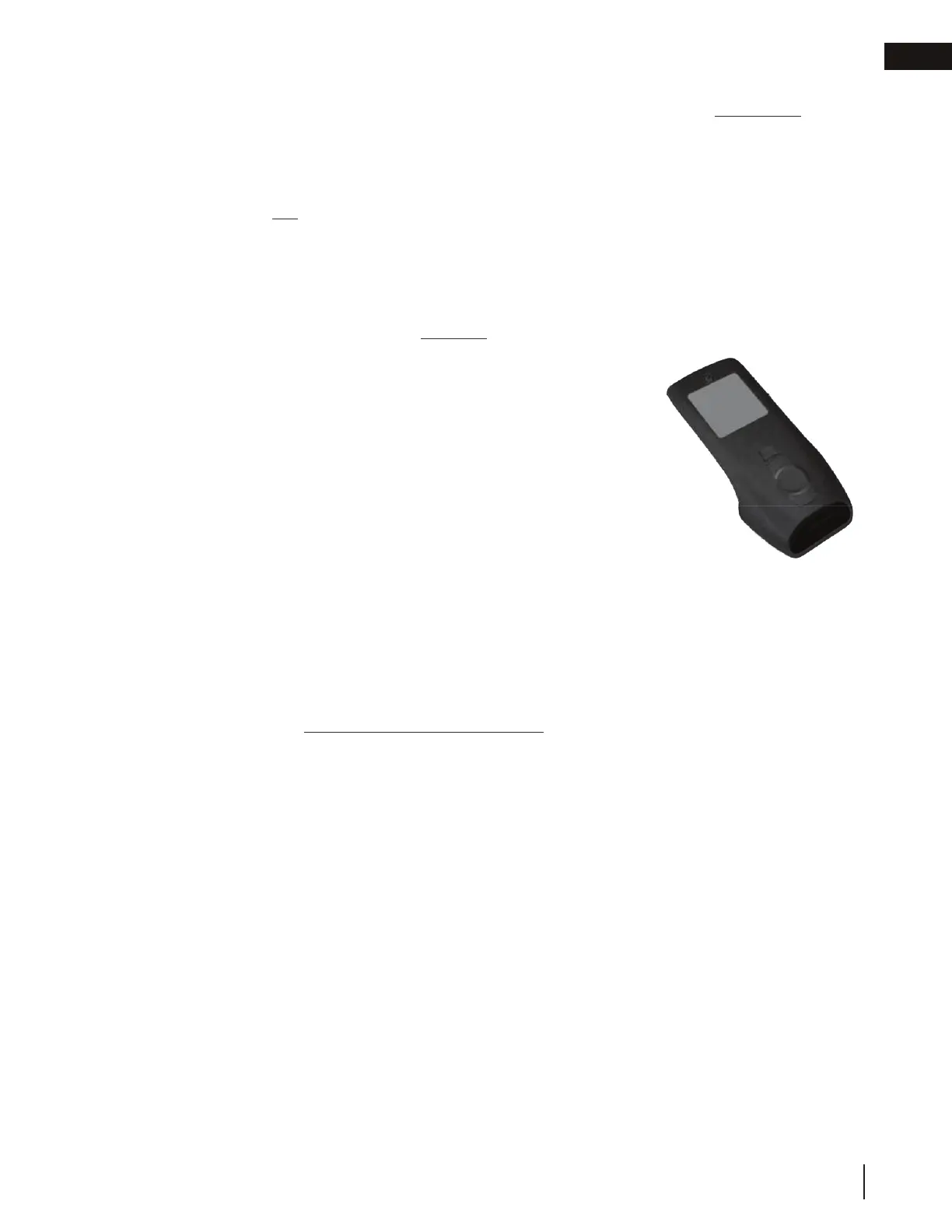

Your appliance may be equipped with an ACS or remote control device which
enables you to select IPI or CPI modes.
If your appliance is equipped with an ACS switch, it has the option to change
modes. If installed with the blue wire facing up, fl ipping the switch UP turns on the
continuous pilot with timer and fl ipping the switch DOWN turns on the intermittent
pilot ignition. If installed with the white wire facing up, the opposite is true.
If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote
operating instructions.
In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off
will reactivate the continuous pilot mode and reset the seven day timer.
For further information, refer to www.napoleon.com/pilotondemand.
• Do not turn on if children or other at risk individuals are near the appliance.
• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the
pilot by hand.
• Before operating, smell all around the appliance area for gas and next to the fl oor because some gas is
heavier than air and will settle on the fl oor.
• Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician
to inspect the appliance and replace any part of the control system and any gas control which has been
underwater.
FOR YOUR SAFETY READ BEFORE LIGHTING
WHAT TO DO IF YOU SMELL GAS
LIGHTING INSTRUCTIONS
TO TURN OFF GAS
A. Stop! Read the above safety information on this label.
B. Remove batteries from the transmitter and set thermostat to lowest setting, if
equipped.
C. Turn off all electrical power to the appliance.
D. Open the glass door, if equipped.
E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is
located on the fl ex connector).
F. Wait fi ve (5) minutes to clear out any gas. If you smell gas including near the
fl oor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU
SMELL GAS” section. If you don’t smell gas; close the glass door and go to
the next step.
G. Turn the manual shut-off valve counter clockwise to the “ON” position.
H. Turn on all electrical power to the appliance and re-install the batteries into the
transmitter. Set thermostat to desired setting, if equipped.
I. Turn on the remote wall switch to the appliance.
J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and
call your service technician or gas supplier.
A. Set thermostat to lowest setting, if equipped.
B. Turn off the remote wall switch to the appliance.
C. Turn off all electric power to the appliance if service is to be performed.
D. Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.
• Turn off all gas to the appliance.
• Open windows.
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fi re department.
• If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal
injury, or loss of life.
• If applicable, always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door
opened or removed.
add gas knob
add gas valve
Ensure that a continuous gas fl ow is at the burner before installing the door. When lit for the fi rst time, the
appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of
paints and lubricants used in the manufacturing process and will not occur again. After extended periods of
non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a
few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to
suffi ciently ventilate the room.
This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the
pilot by hand.
note:
ADD TITLE: PILOT-ON-DEMAND
2.4 pilot-on-demand (electronic)
