appliance overview
The term “access side” is used in this manual and refers to the open side of the fireplace where the firebox glass
door is located.
In the case of see-thru appliances, there are firebox glass doors on both sides of the appliance. One of these
doors is fixed and cannot be removed. The access side can be identified with the pilot location.

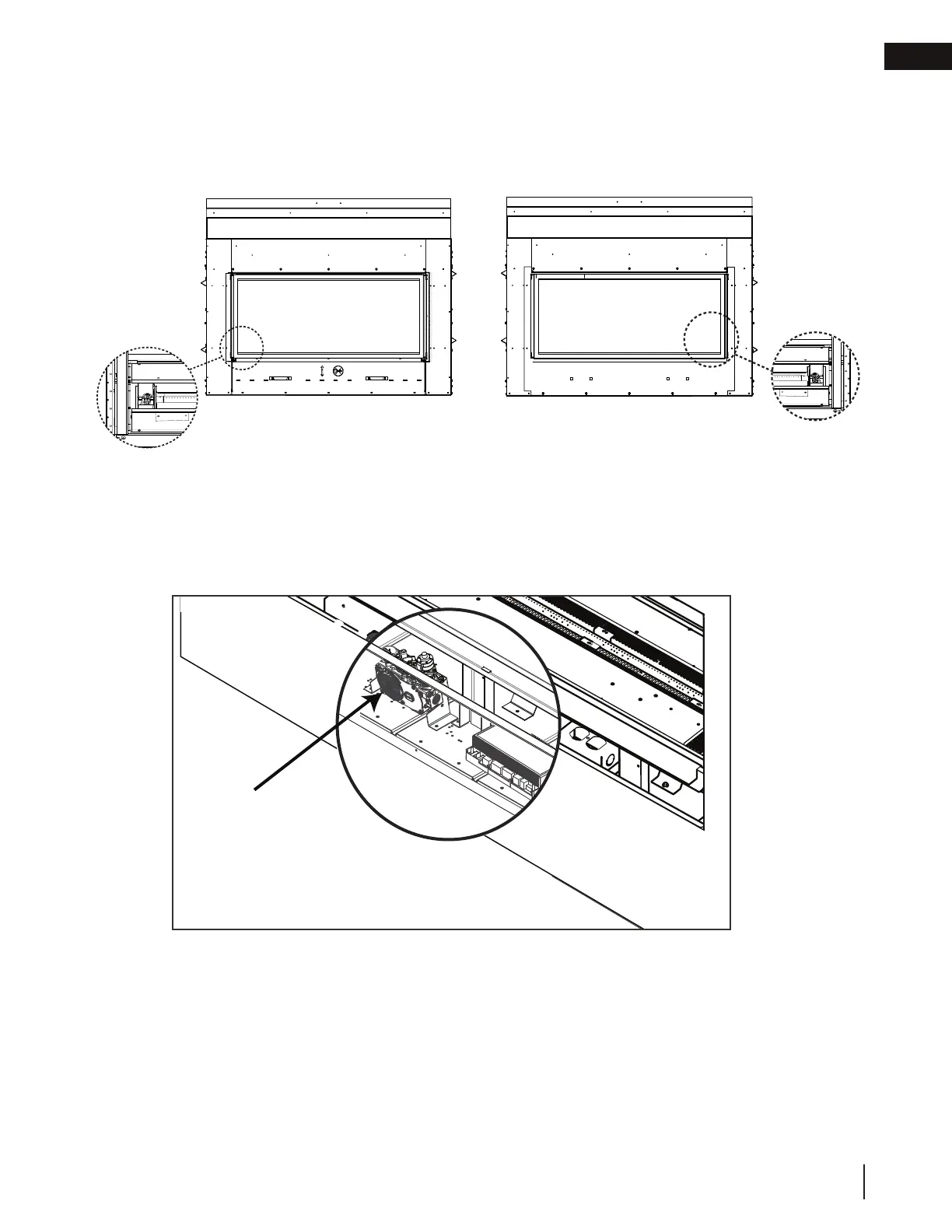

access side
fixed side
pilot location
pilot location
Access to the control can be done by removing the safety barrier (LV models) or glass guard (LVX models),
glass door, door trim and control cover (see “maintenance” section for instructions on how to remove these
components).
ELECTRICAL
BOX
CONTROL
MODULE
VALVE
PRE-FINISHING
ACCESS PANEL
LV50 ILLUSTRATED
1.1 control access
PRE-FINISHING
ACCESS PANEL
ELECTRICAL
BOX
LV50 ILLUSTRATED
VALVE
CONTROL
MODULE
