maintenance

6.3 glass guard assembly (GGA-1) removal / installation (LVX models only)

WARNING

• The polystyrene / styrofoam packaging materials may scratch the glass if the GGA-1 is not covered by the

plastic layer.

• Adequate steps must be taken to protect the appliance and Dynamic Heat Control™ (DHC) openings from

dirt, debris and damage during ﬁnishing.

• The GGA-1 installation and/or removal will require 2 people.

• The GGA-1 should be preliminarily ﬁtted and adjusted before ﬁnish framing and ﬁnishing the appliance. It is

much easier to make adjustments with the appliance pre-ﬁnishing access panel removed. It is recommended

that the GGA-1 is removed after preliminary adjustment and stored safely in the original packaging whilst

ﬁnishing is complete. Take precautions to protect the appliance during ﬁnishing.

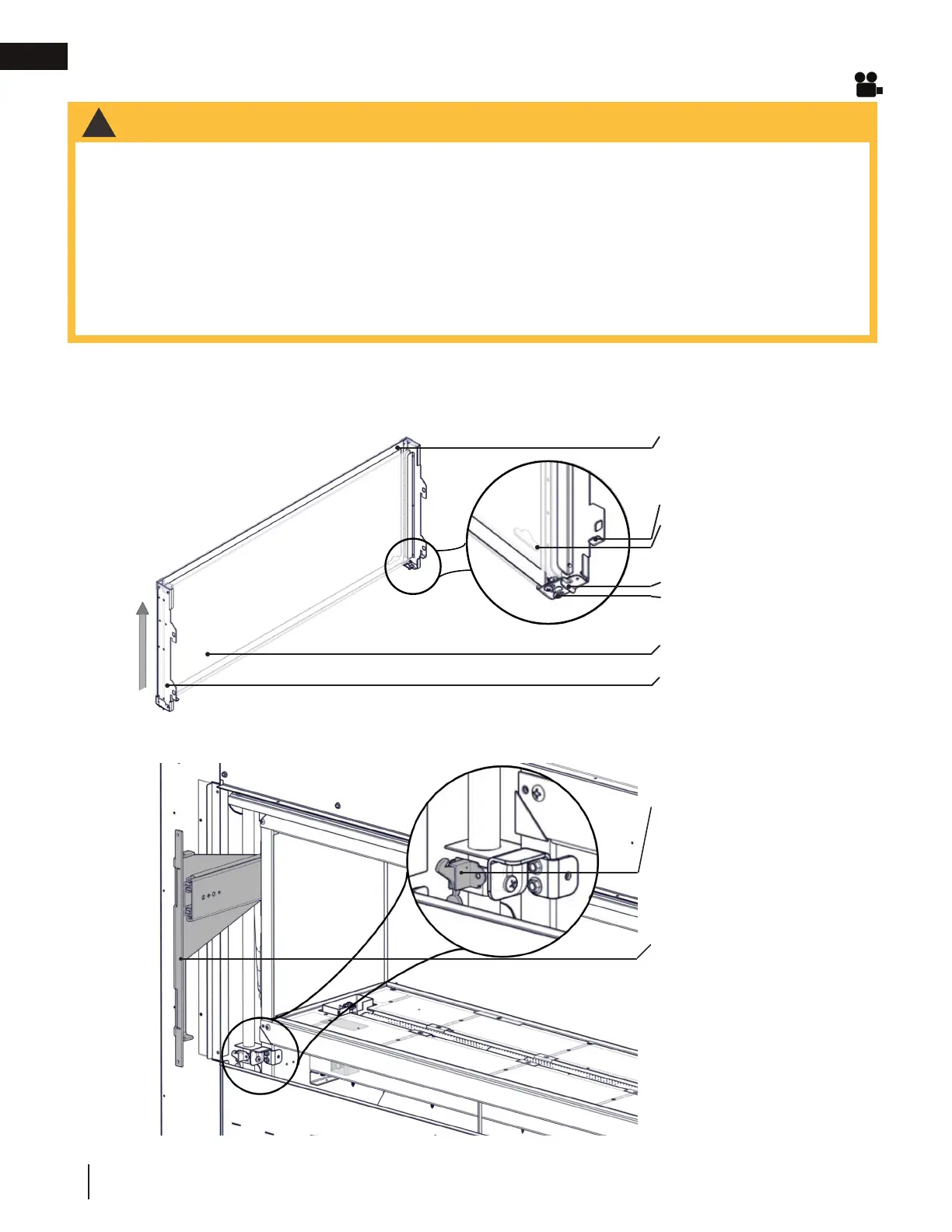

Key Components

• Horizontal tab

• Napoleon logo

(afﬁxed to

intermediate glass)

• GGA-1 catch

securing screws

• Intermediate glass

• GGA-1 mount

bracket

• Outer glass

• Latch

• GGA-1 slider bracket

Rear view of GGA-1

Access side view of appliance

THIS WAY UP

Fig. 1

Fig. 2
