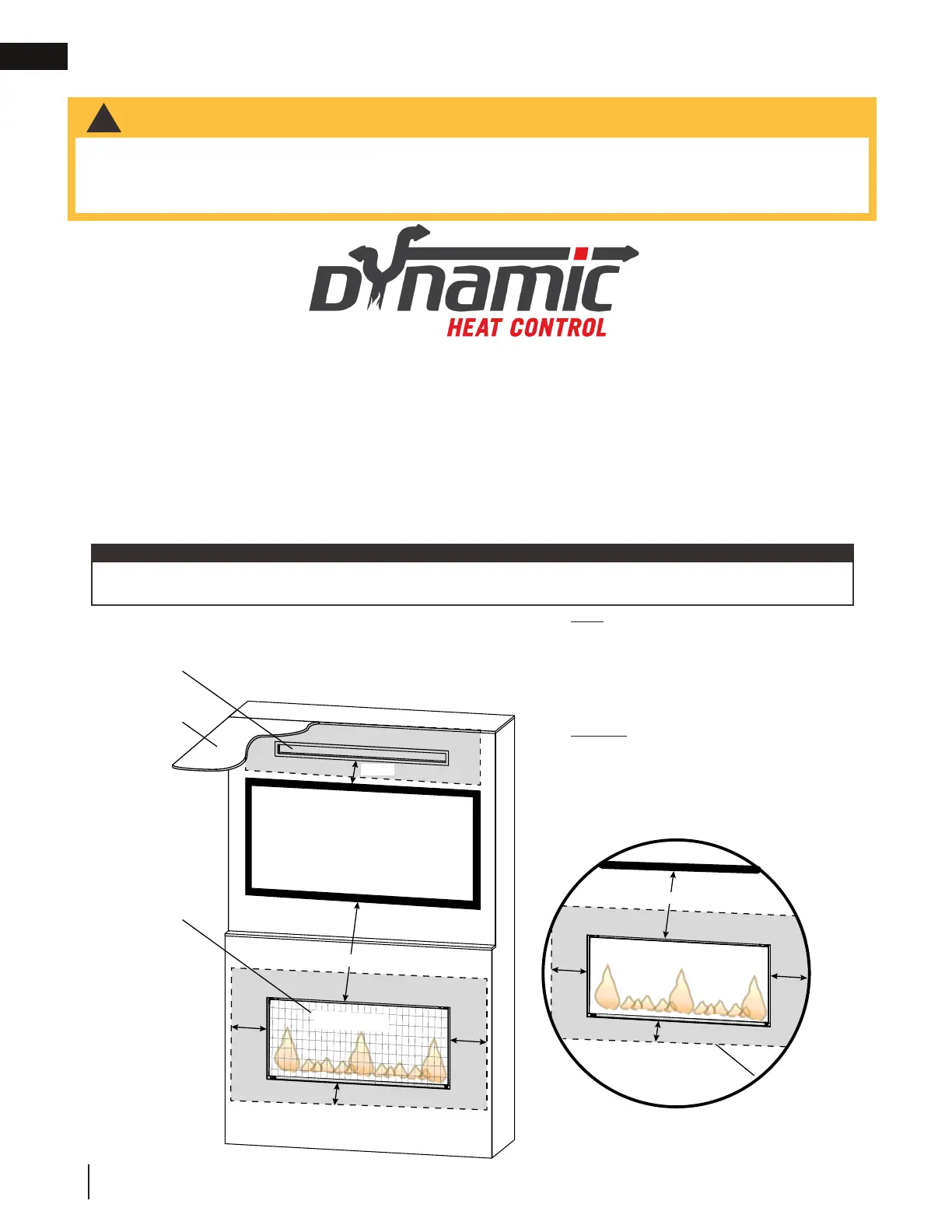

clearances around fireplace
Dynamic Heat Control™ is a system for managing the heat produced by the appliance at and around the fireplace
opening. The purpose of Dynamic Heat Control™ is to move the heat away from the fireplace to allow it to
circulate more effectively within the living space. By installing the Dynamic Heat Control™, you gain considerable
benefits:
• Heat is circulated more consistently throughout the living space increasing comfort in front of the fireplace.
• Increased real world efficiency as heat is moved into the room rather than retained inside the fireplace
enclosure.
• Complete flexibility in selection of finish materials.
• Ability to place a TV, sound bar or artwork above the fireplace.
5.1 Dynamic Heat Control™ (LV optional / LVX included)
The Dynamic Heat Control™ system should be installed with the appliance. It is not practical as an upgrade
after installation and finishing completed.
note:
DOS
• Screw into studs (see “Dynamic Heat
Control™.
• Maintain at least the minimum clearances
illustrated.
DON’TS
• Place objects too close to air outlet
• Place objects too close to air inlet.
• Screw into the appliance.
!
WARNING
• When fitted with DHC, your appliance, gas/electrical connections, venting and various key components are
hidden behind the wall. It is critical that no screws penetrate the areas illustrated below. Failure to follow
instructions may cause improper operation, damage, personal injury or fire. Always use a stud finder and only
screw into studs (see illustration in “Dynamic Heat Control™ section).
6” min.
Ceiling
Air inlet (LV models)
(LV illustrated w/ optional DHC)
(LVX illustrated)
Safety Barrier
6” min.
Dynamic Heat
Control™
(LVX models)
Glass Guard
2” min.
2” min.
6” min.
6” min.
6” min.
6” min.
PATENT PENDING
Image not to scale.
