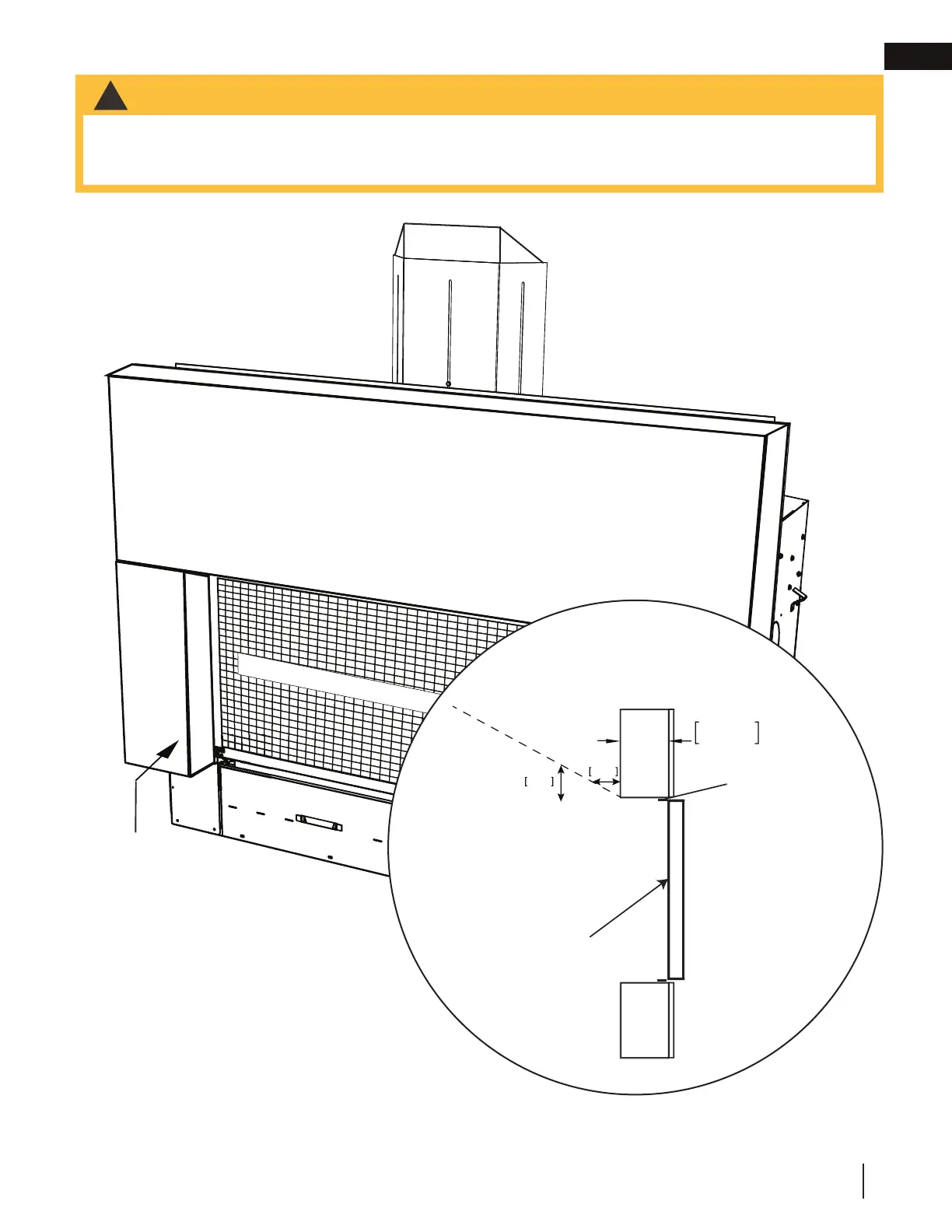

• Non-combustible fi nishing material tight to the frame around the safety barrier (PSB) frame must not project
more than 4” (10cm) from the face of the safety barrier (above the door and sides only). If greater projections
are needed, increase the clearance to the sides and top by 2” (51mm) for every 1” (25mm) projection.
!
WARNING
4" (10cm)
Maximum
protrusion
(must not encroach
on finishing flange)
SAFETY BARRIER
SAFETY
BARRIER
finishing
flange all
around
SIDE VIEW
4"
10cm
Max
1"
25mm
2"
51mm
Non-combustible protrusion
