EN
W415-4121 / B / 04.20.23
59
maintenance
A. Remove the safety screen and glass door, refer to the “safety barrier installation / removal” and “door
installation / removal” sections for details.

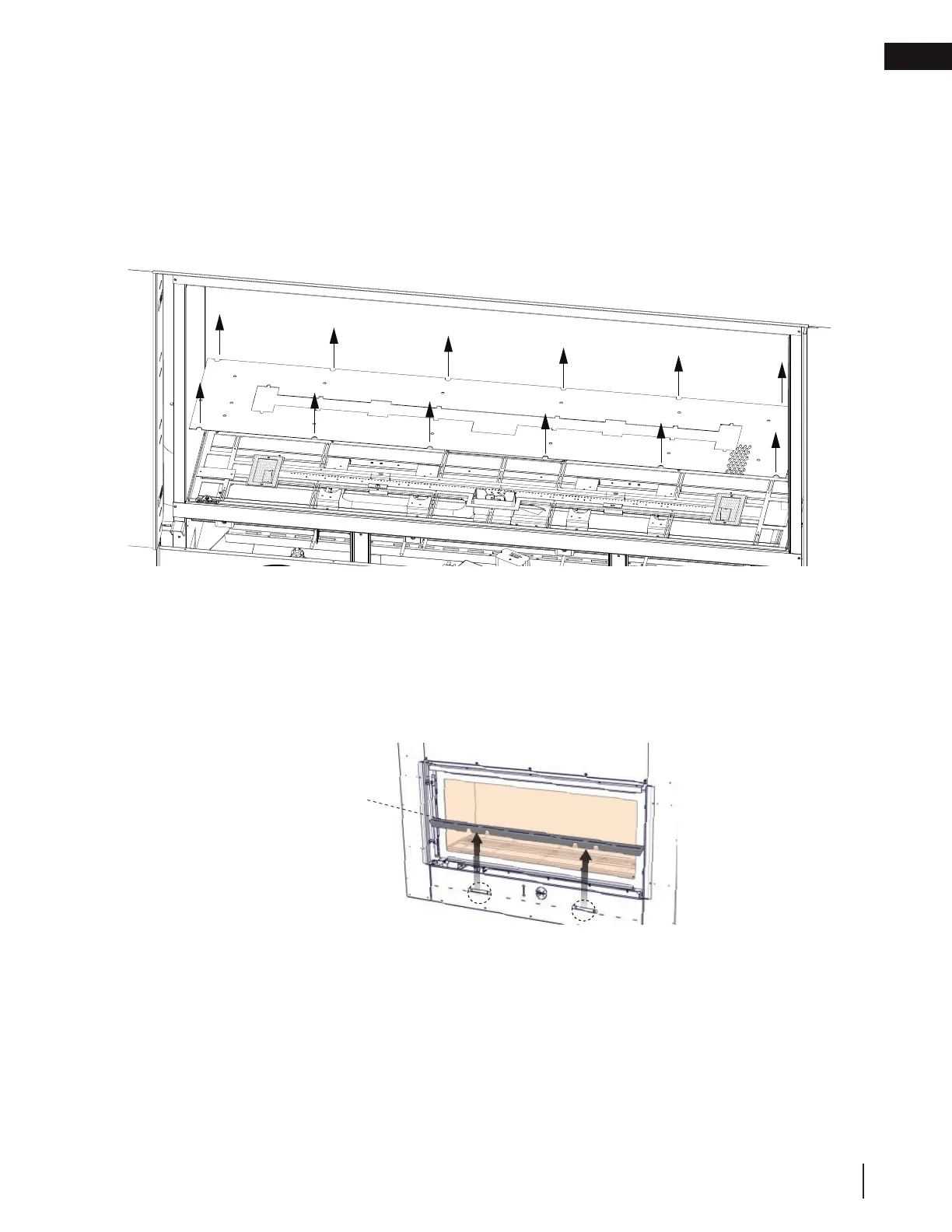

B. Remove the control cover from the appliance by sliding it up and out of the clips of the front cover.
C. Remove the media tray and burner assembly, refer to the “burner removal” section for details.
13.3 burner removal
A. Remove the safety screen and glass door, refer to the “safety barrier installation / removal” and “door
installation / removal” sections for details.
B. Remove the media from the appliance.
C. Remove the pilot housing by removing the screws.
D. Remove the screws that secure the media tray in place. Lift the burner assembly up and out of the
appliance.
TLV50 Illustrated
Control
Cover
13.4 valve removal
