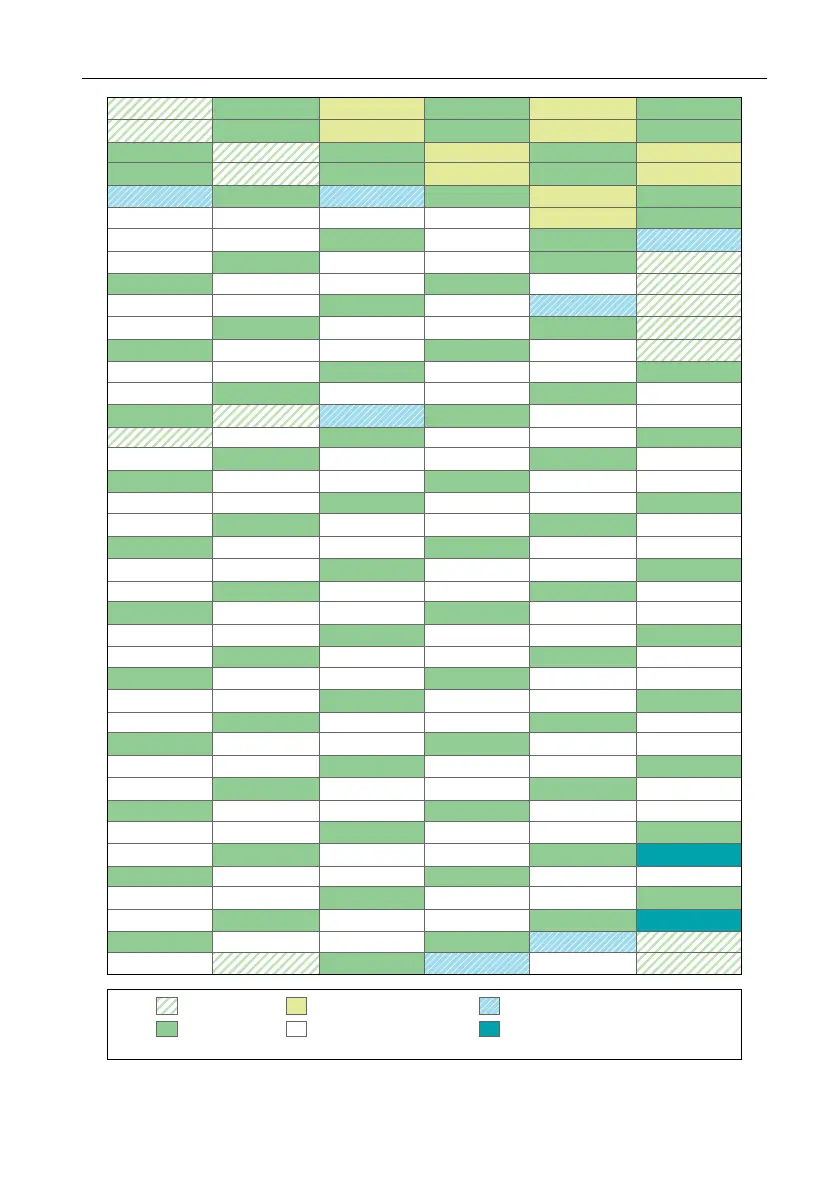

Figure 21. RMC Connector Pin Listing
Power
GND
Differential IO
Singled Ended IO
Reserved
Routed to FPGA Global Clock
Resources on the Host System
1 - VIN_Filtered
7 - VIN_Filtered
13 - GND
19 - GND
25 - RESERVED
31 - GBE_SPEED_LEDy
37 - GBE_SPEED_LEDg
43 - SYS_RST#
49 - GND
55 - SPICS#_DIO5[1]
61 - SPI_CLK[1]
67 - GND
73 - SPICS#_DIO5[2]
79 - SPI_CLK[2]
85 - GND
91 - 5V C Series
97 - DIO95
103 - GND
109 - DIO94
115 - DIO93
121 - GND
127 - DIO92
133 - DIO91
139 - GND
145 - DIO90
151 - DIO89
157 - GND
163 - DIO88
169 - DIO87
175 - GND
181 - DIO86
187 - DIO85
193 - GND
199 - DIO84
205 - DIO83
211 - GND
217 - DIO82
223 - DIO81
229 - GND
235 - DIO80
2 - GND
8 - GND
14 - VIN_Filtered
20 - VIN_Filtered
26 - GND
32 - GBE_ACT_LEDg
38 - RST#
44 - GND
50 - DONE#_DIO2[1]
56 - MOSI_DIO7[1]
62 - GND
68 - DONE#_DIO2[2]
74 - MOSI_DIO7[2]
80 - GND
86 - 5V C Series
92 - DIO63
98 - GND
104 - DIO62
110 - DIO61
116 - GND
122 - DIO60
128 - DIO59
134 - GND
140 - DIO58
146 - DIO57
152 - GND
158 - DIO56
164 - DIO55
170 - GND
176 - DIO54
182 - DIO53
188 - GND
194 - DIO52
200 - DIO51
206 - GND
212 - DIO50
218 - DIO49
224 - GND
230 - DIO48
236 - VBAT
3 - GBE_MDI0+
9 - GBE_MDI0-
15 - GND
21 - GND
27 - RESERVED
33 - USB_CPEN
39 - GND
45 - SLEEP[1]
51 - SLEEP[2]
57 - GND
63 - ID_SELECT#[2]
69 - CVRT#_DIO3[2]
75 - GND
81 - MISO_DIO6[2]
87 - RESERVED
93 - GND
99 - DIO31
105 - DIO30
111 - GND
117 - DIO29
123 - DIO28
129 - GND
135 - DIO27
141 - DIO26
147 - GND
153 - DIO25
159 - DIO24
165 - GND
171 - DIO23
177 - DIO22
183 - GND
189 - DIO21
195 - DIO20
201 - GND
207 - DIO19
213 - DIO18
219 - GND
225 - DIO17
231 - DIO16
237 - GND
4 - GND
10 - GND
16 - GBE_MDI1+
22 - GBE_MDI1-
28 – GND
34 - USB_MODE
40 - ID_SELECT#[1]
46 - CVRT#_DIO3[1]
52 - GND
58 - OSCLK_DIO0[1]
64 - TRIG_DIO1[1]
70 - GND
76 - OSCLK_DIO0[2]
82 - TRIG_DIO1[2]
88 - GND
94 - DIO79
100 - DIO78
106 - GND
112 - DIO77
118 - DIO76
124 - GND
130 - DIO75
136 - DIO74
142 - GND
148 - DIO73
154 - DIO72
160 - GND
166 - DIO71
172- DIO70
178 - GND
184 - DIO69
190 - DIO68
196 - GND
202 - DIO67
208 - DIO66
214 - GND
220 - DIO65
226 - DIO64
232 - GND
238 - RESERVED
6- GND
12 - GND
18 - GBE_MDI3+
24 - GBE_MDI3-
30 - GND
36 - GND
42 - RESERVED
48 - 3.3V_AUX
54 - 5V
60 - 5V
66 - 5V
72 - 5V
78 - GND
84 - USB_VBUS
90 - DIO15
96 - GND
102 - DIO14
108 - DIO13
114 - GND
120 - DIO12
126 - DIO11
132 - GND
138 - DIO10
144 - DIO9
150 - GND
156 - DIO8
162 - DIO7
168 - GND
174 - DIO6
180 - DIO5
186- GND
192 - DIO4
198 - DIO3
204 - GND
210 - DIO2
216 - DIO1
222 - GND
228 - DIO0
234 - FPGA_VIO
240 - FPGA_VIO
5 - GBE_MDI2+
11 - GBE_MDI2-
17 - GND
23 - GND
29 - USB_D+
35 - USB_D-
41 - GND
47 - GND
53 - SPIFUNC_DIO4[1]
59 - RESERVED
65 - GND
71 - MISO_DIO6[1]
77 - SPIFUNC_DIO4[2]
83 - GND
89 - DIO47
95 - DIO46
101 - GND
107 - DIO45
113 - DIO44
119 - GND
125 - DIO43
131 - DIO42
137 - GND
143 - DIO41
149 - DIO40
155 - GND
161 - DIO39
167 - DIO38
173 - GND
179 - DIO37
185 - DIO36
191 - GND
197 - DIO35
203 - DIO34
209 - GND
215 - DIO33
221 - DIO32
227 - GND
233 - RESERVED
239 - FPGA_CONF
