National Instruments sbRIO-9607 - Panel or Plate Mounting

Mounting on a Panel or Plate with Conduction Path
If possible, NI recommends that you mount the sbRIO-9607 on a panel or plate, such that a
thermal solution provides a conduction path from the primary side components and is secured
to or made from the panel or plate, as shown in the following figure.

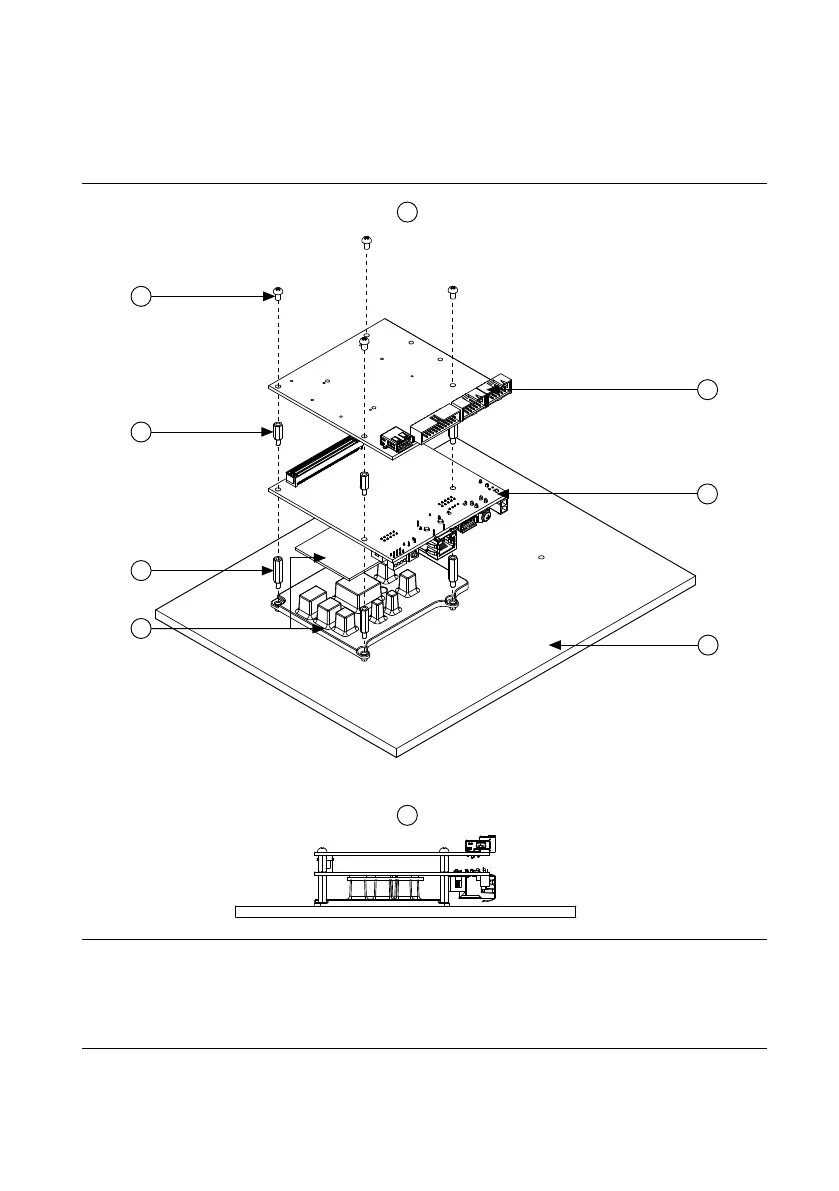

Figure 7. Mounting on a Panel or Plate
2
3
4
5
7
8
9
6
1
1. Exploded view of all mounting components
2. Complete assembled and mounted view
3. Mounting screws
4. Standoff, 9.65 mm (0.38 in.)
5. Standoff, 16.00 mm (0.63 in.)
6. Thermal Kit for NI sbRIO-9607/9627/9637
(153901-02)
7. RMC board
8. NI sbRIO-9607
9. Mounting surface
