Mounting on a Panel or Plate with Convection Path
Alternatively, the thermal solution can be used for convection to natural or forced air flow or
used in conjunction with a heat sink optimized for the environment.

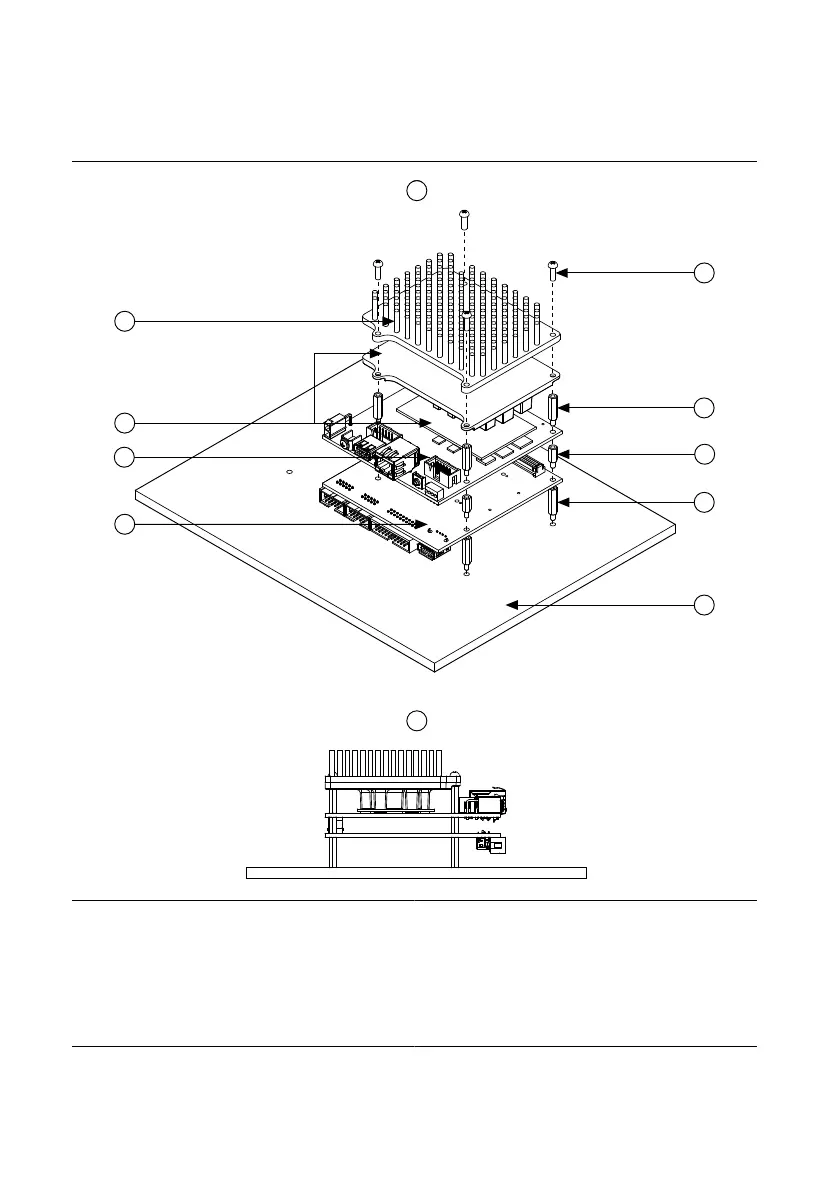

Figure 8. Mounting on a Panel or Plate
1
2
1
2
3
4
5
7
8
10
11
9
6
1. Exploded view of all mounting components
2. Complete assembled and mounted view
3. Heatsink
4. Thermal Kit for NI sbRIO-9607/9627/9637
(153901-02)
5. NI sbRIO-9607
6. RMC board
7. Mounting screws
8. Standoff, 16.00 mm (0.63 in.)
9. Standoff, 9.65 mm (0.38 in.)
10. Standoff
11. Mounting surface
