KOMPLETEAUDIO6–Manual–35
ENGLISH
7 UsingtheKOMPLETEAUDIO6(SetupScenarios)
Inthis chapter, you will learn howto connect the KOMPLETE AUDIO6 invarious setup
scenarios.Althoughwecannotcoverallimaginablesetupshere,theexamplesaregeneral
enoughtoapplytheinformationtomostsituations.

PleasemakesuretohaveinstalledtheKOMPLETEAUDIO6driverasdescribedinchap-
ter3priortoconnectingtheKOMPLETEAUDIO6toyourcomputer.Thedevicewillnot
workproperlyotherwise.
7.1 ConnectingSpeakers
7.1.1 ConnectingActiveMonitorSpeakers

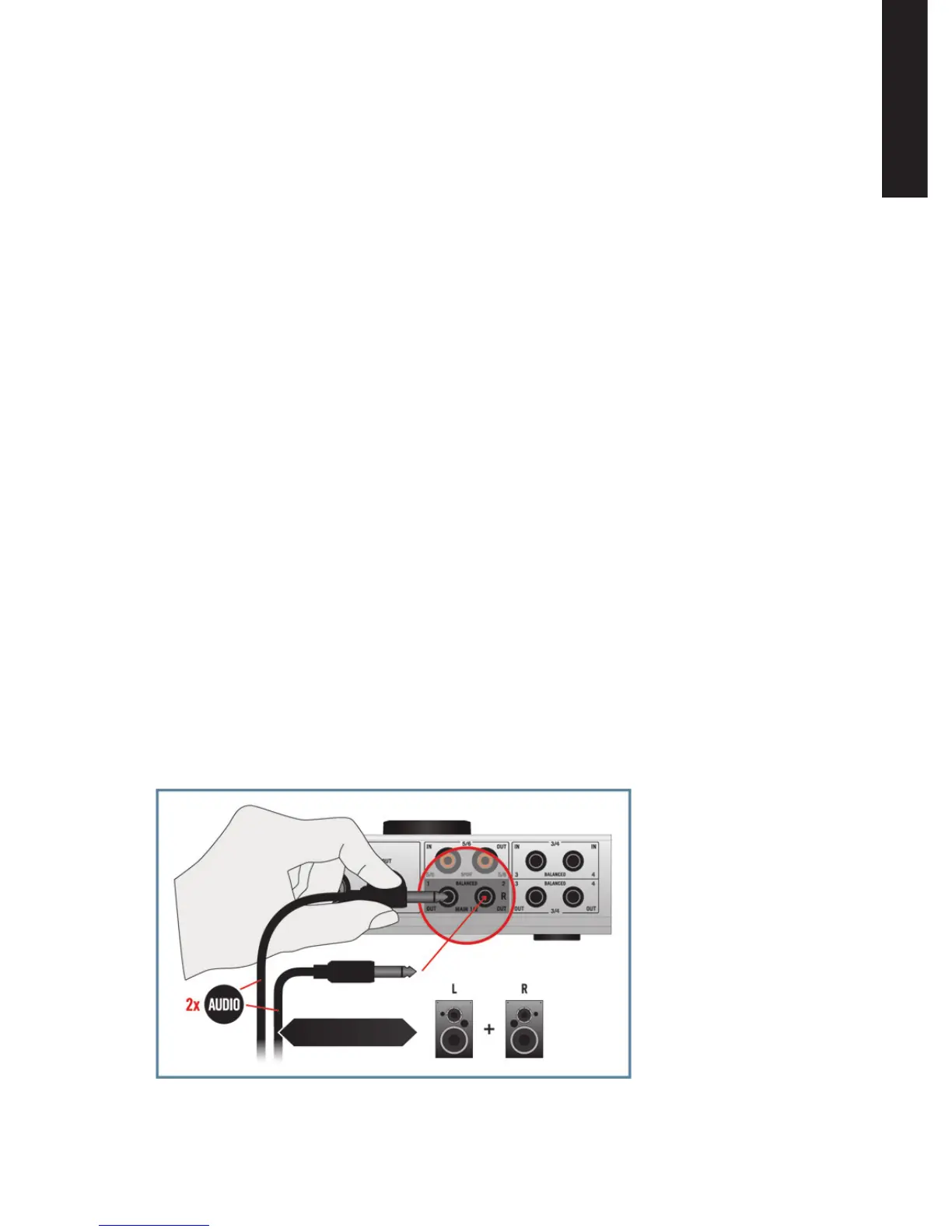

7.1KOMPLETEAUDIO6setupwithactivemonitors.
Make sure theKOMPLETEAUDIO6isconnectedtoyourcomputerasdescribedduringthe
installationchapter(chapter3),andconguredasyourcomputer’smainaudiooutputdevice
(seechapter4).
Touseactivespeakers(self-poweredspeakerswithabuilt-inamplier)withyourKOMPLETE
AUDIO6:
1. TurntheVolumeControlknob(MAINVOLUME1/2)onthetoppaneloftheKOMPLETE
AUDIO6totheleft-endstoptosetthevolumetominimum.
2. Connectthemainoutputs(MAIN1/2)ontherearpaneloftheKOMPLETEAUDIO6to
youractivespeakerswithstereo1/4”cables.First,connecttheLoutputchannelwith
theleftspeaker,thentheRoutputchanneltotherightspeaker.
3. Onceyouhaveconnectedthespeakerstothedevice,setthegainknobonyouractive
boxestotheappropriatelevel(0dB)andturnthemon.

Native Instruments Komplete Audio 6 Specifications

General

Audio Resolution	24-bit/192kHz
Power Supply	USB bus powered
Audio Interface Type	USB
Simultaneous I/O	6 x 6
Number of Preamps	2
A/D Resolution	24-bit/192kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Phantom Power	Yes
Digital Inputs	1 x Coax (S/PDIF)
Digital Outputs	1 x Coax (S/PDIF)
Headphone Output	1 x 1/4" TRS
Software Included	Komplete Elements
Outputs	4 x analog (2 x TRS, 2 x RCA)
