(6)Inputs 3/4: The Input 3/4 sockets are balanced 1/4” jack sockets. They are used with
synths,tapedecks,CDplayers,oranyotherdevicesorinstrumentsthatdon’trequirephan-
tompowering.
(7)InputandOutput5/6:TheRCA(phono)sockets5/6 areusedfordigitalinput/output,and
syncingtoexternaldigitalclocks.Typically,DATtapedecksorsynthesizerswithdigitalins/
outsutilizethesesockets.
5.3 TopPanel

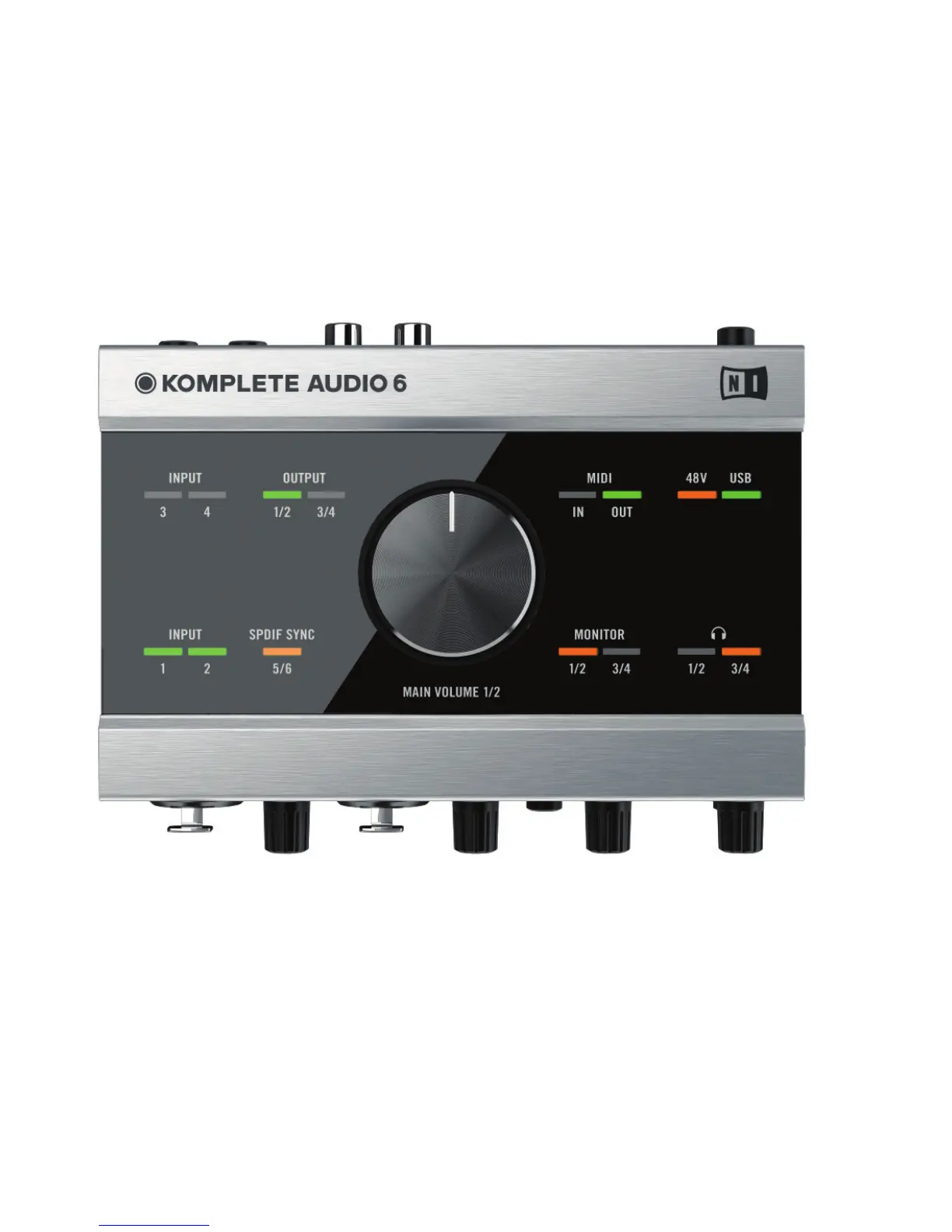

5.3ThetoppaneloftheKOMPLETEAUDIO6.
• Volumecontrolknob(MAINVOLUME1/2):Theknobatthecenterofthetoppanelprovidesa
mastervolumecontrolforthemainoutputs(MAIN1/2).
• Status LEDs:ThestatusLEDssurroundingtheVolumeControlKnoballowyoutoquickly
identifythestatusofalltheconnectionsgoinginandoutofthedevice,especiallyin
lowlightingenvironments,wheresetupandtroubleshootingcanbecumbersome.See
thefollowinglistfortheLED’stasksinmoredetail:
• INPUT 1,2,3,and4:Lightgreenwhenincomingsignalontherelevantchannelis
detected.TheLEDslightredwhenthereistoomuchsignalpresent,i.e.clipping.
• OUTPUT1/2 and 3/4:Lightsgreenwhenthereisanoutgoingaudiosignal.

Native Instruments Komplete Audio 6 Specifications

General

Brand	Native Instruments
Model	Komplete Audio 6
Category	Recording Equipment
Language	English
