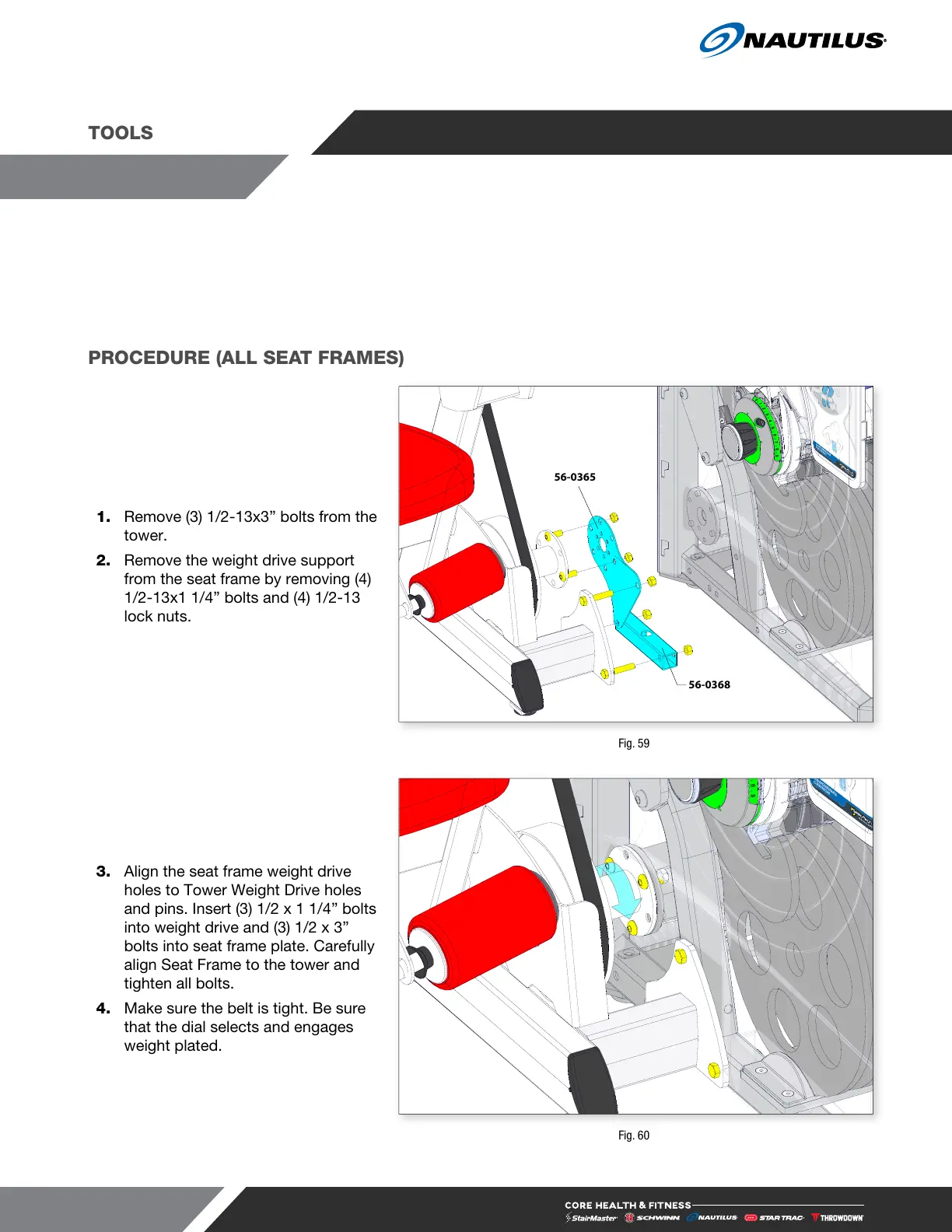

PROCEDURE (ALL SEAT FRAMES)
1. Remove (3) 1/2-13x3” bolts from the
tower.
2. Remove the weight drive support
from the seat frame by removing (4)
1/2-13x1 1/4” bolts and (4) 1/2-13
lock nuts.
56-0365
56-0368
Fig. 59
3. Align the seat frame weight drive
holes to Tower Weight Drive holes
and pins. Insert (3) 1/2 x 1 1/4” bolts
into weight drive and (3) 1/2 x 3”
bolts into seat frame plate. Carefully
align Seat Frame to the tower and
tighten all bolts.
4. Make sure the belt is tight. Be sure
that the dial selects and engages
weight plated.
Fig. 60
TOOLS
Required Tools:
• 3/4” Socket Wrench
• Adjustable Wrench
ASSEMBLY
