2. Installation and Connections

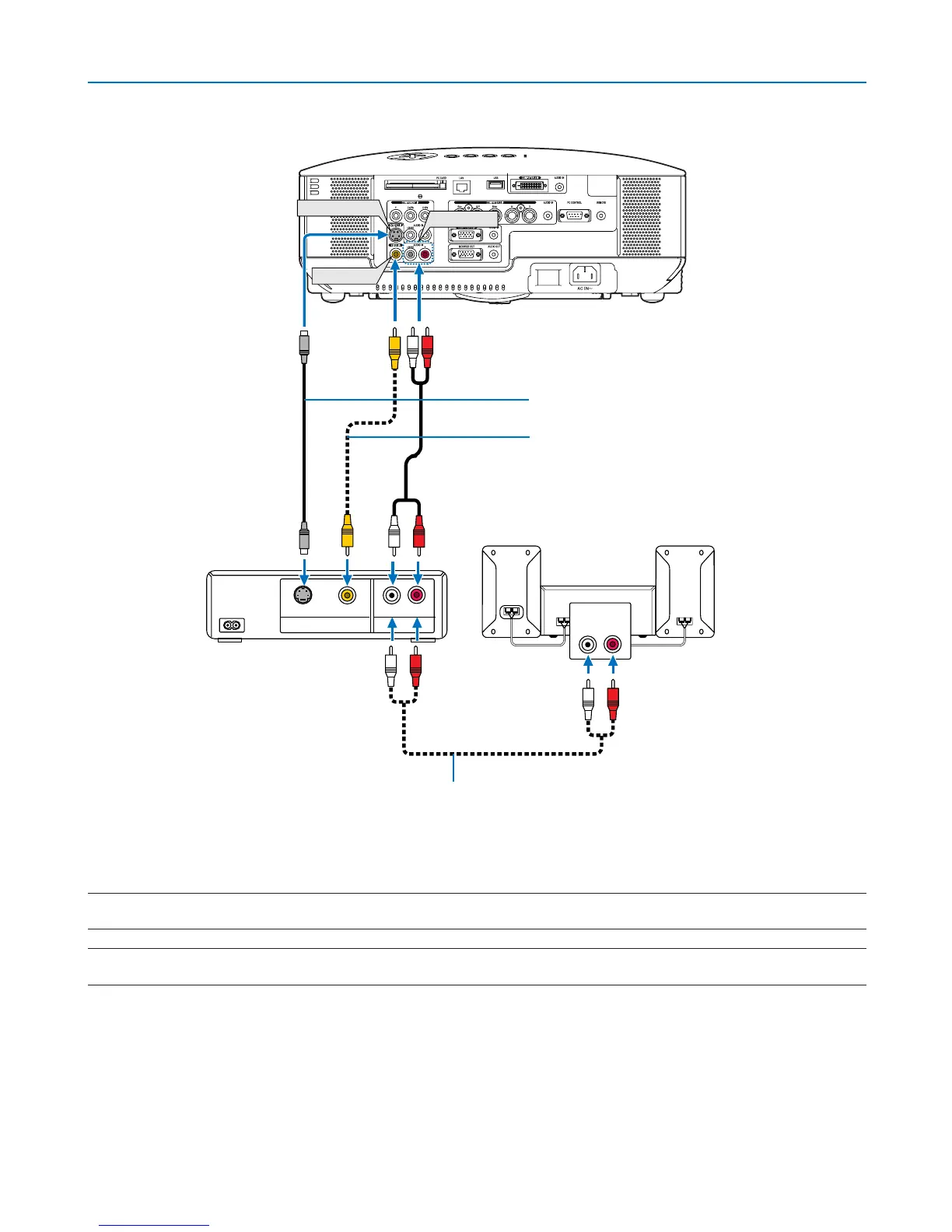

Connecting Your VCR or Laser Disc Player
S-Video cable (not supplied)
Video cable (not supplied)
VCR/ Laser disc player
Audio equipment
Audio cable (not supplied)
TIP:
You can connect a video cable to the "Y" connector of the COMPONENT connectors to display a VCR source. To do so, from the
menu, select [Setup]
→
[Options]
→
[Signal Select]
→
[Component]
→
[Video].
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output require-
ments.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a
scan converter.
