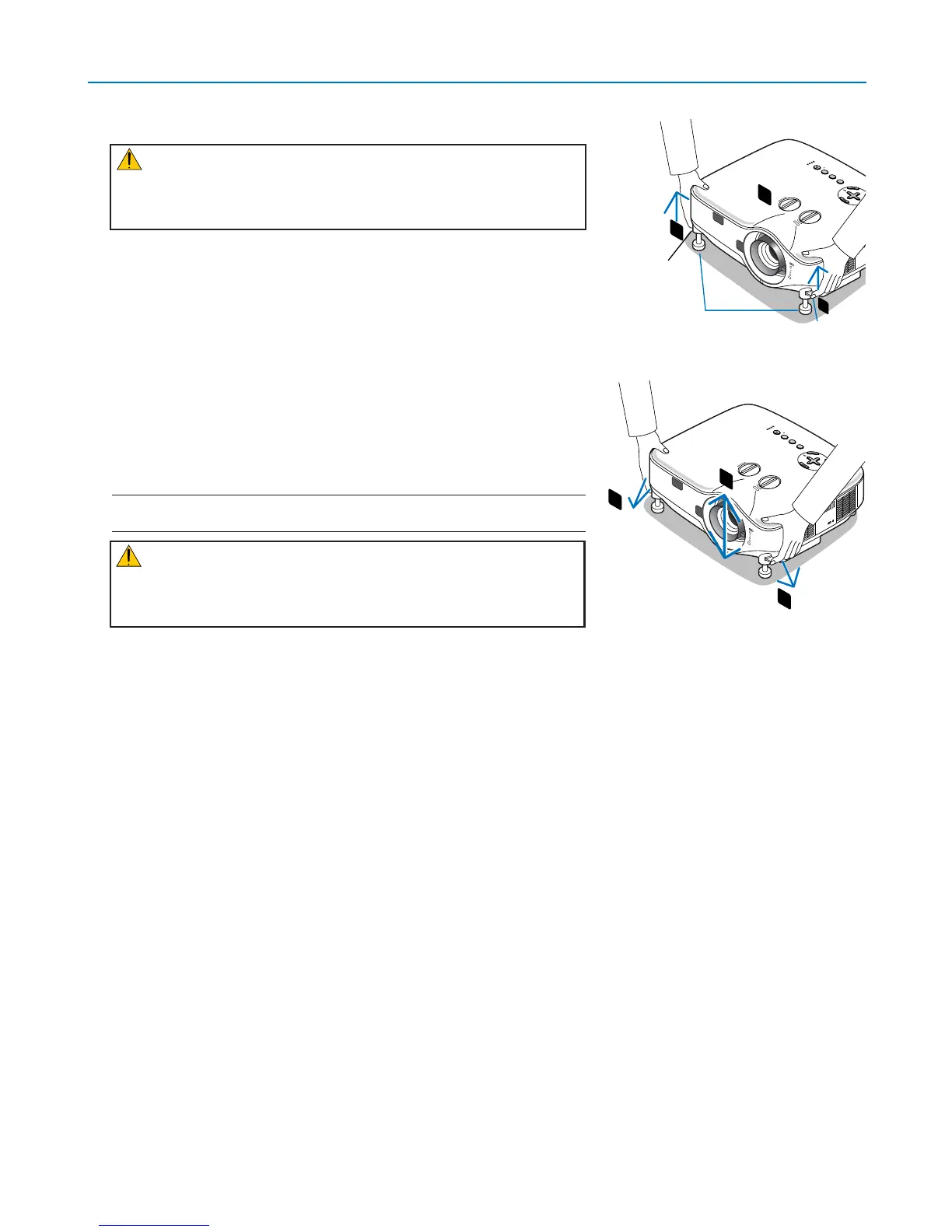

Adjusting the Tilt Foot
1. Lift the front edge of the projector.
CAUTION:
Do not try to touch the ventilation outlet during Tilt Foot adjustment as
it can become heated while the projector is turned on and during its
cool down period after it is turned off.
2. Push up the Adjustable Tilt Foot Levers on the right and left sides
of the projector to extend the adjustable tilt feet (maximum height).
3. Lower the front of the projector to the desired height.
4. Release the Adjustable Tilt Foot lever to lock the Adjustable tilt foot.
There is approximately 10 degrees (up) of adjustment for the front of the
projector.
Adjustable Tilt
Foot Lever
Adjustable Tilt
Foot Lever
NOTE: Your "Keystone" correction data can be reset by pressing and holding the
3D REFORM button for a minimum of 2 seconds.
CAUTION:
Do not use the tilt-foot for purposes other than originally intended.
Misuses such as using the tilt foot to carry or hang (from the wall or
ceiling) the projector can cause damage to the projector.
TIP:
For operating the [Keystone] screen, see "  Correcting Keystone Distortion"
on page
31.
