Digital RGB signal connection
• Connect a commercially available HDMI cable between the computer’s HDMI output connector and the projector’s
HDMI 1 IN or HDMI 2 IN connector.
• Connect a commercially available DisplayPort cable between the computer’s DisplayPort output connector and
the projector’s DisplayPort input connector.
• Select the source name for its appropriate input connector after turning on the projector.
Input connector INPUT button on the projector
cabinet
Button on the remote control
HDMI 1 IN 1:HDMI 1 1/HDMI 1
HDMI 2 IN 2:HDMI 2 2/HDMI 2
DisplayPort IN
3:DisplayPort
3/DisplayPort
Cautions when connecting an HDMI cable
• Use a certied High Speed HDMI
®
Cable or High Speed HDMI
®
Cable with Ethernet.
Cautions when connecting a DisplayPort cable
• Use a certied DisplayPort cable.
• Depending on the computer, some time may be required until the image is displayed.
• Some DisplayPort cables (commercially available) have locks.
• To disconnect the cable, press the button on the top of the cable’s connector, then pull the cable out.
• In case power supply from the DisplayPort IN terminal is required, please contact your dealer.
• When signals from a device that uses a signal converter adapter are connected to the DisplayPort input connector,
in some cases the image may not be displayed.
• When the HDMI output of a computer is connected to the DisplayPort input connector, use a converter (commer-
cially available).

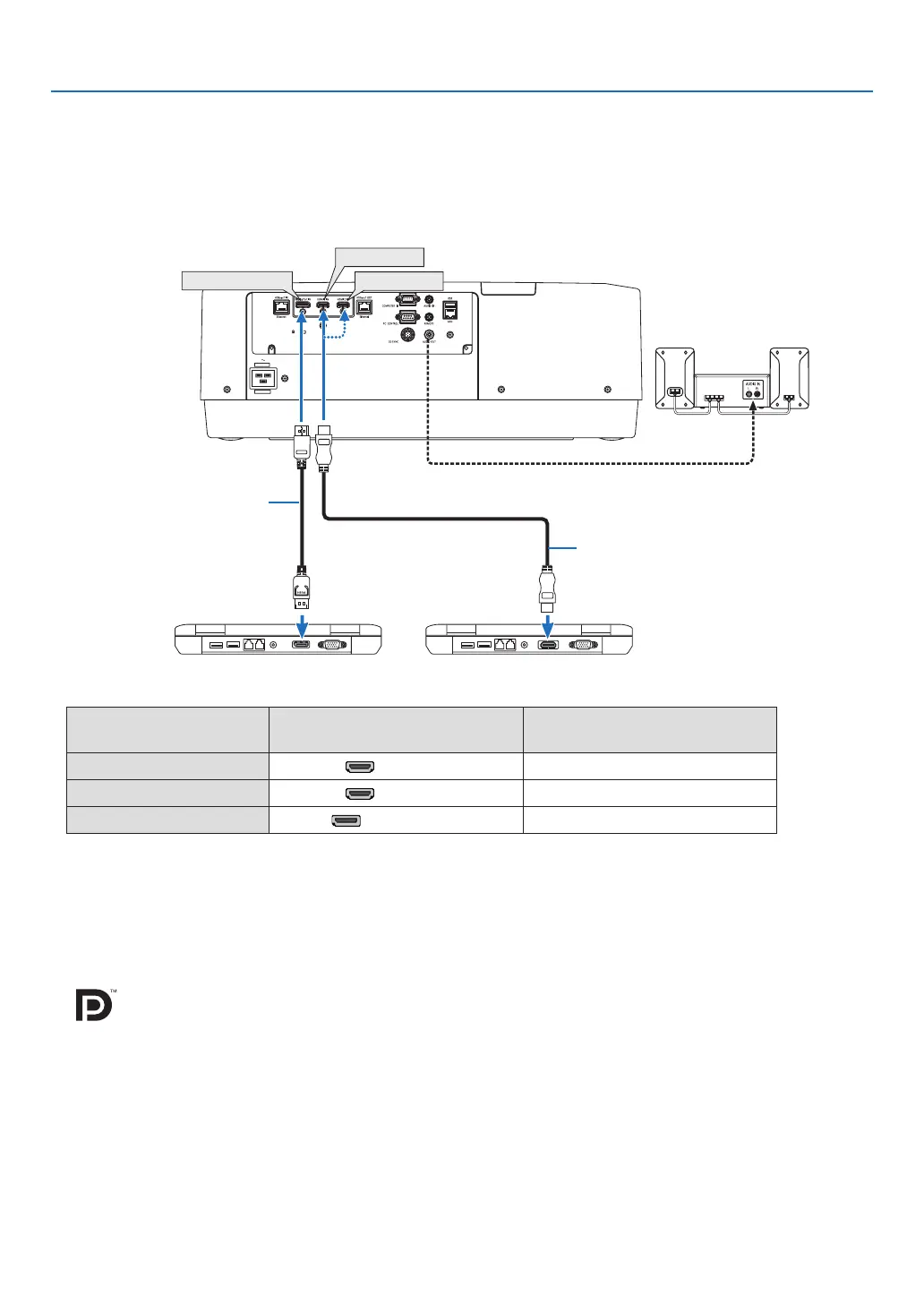

HDMI 1 IN
HDMI 2 IN
DisplayPort IN
HDMI cable (not supplied)
DisplayPort cable (not supplied)
