26
2. Projecting an Image (Basic Operation)

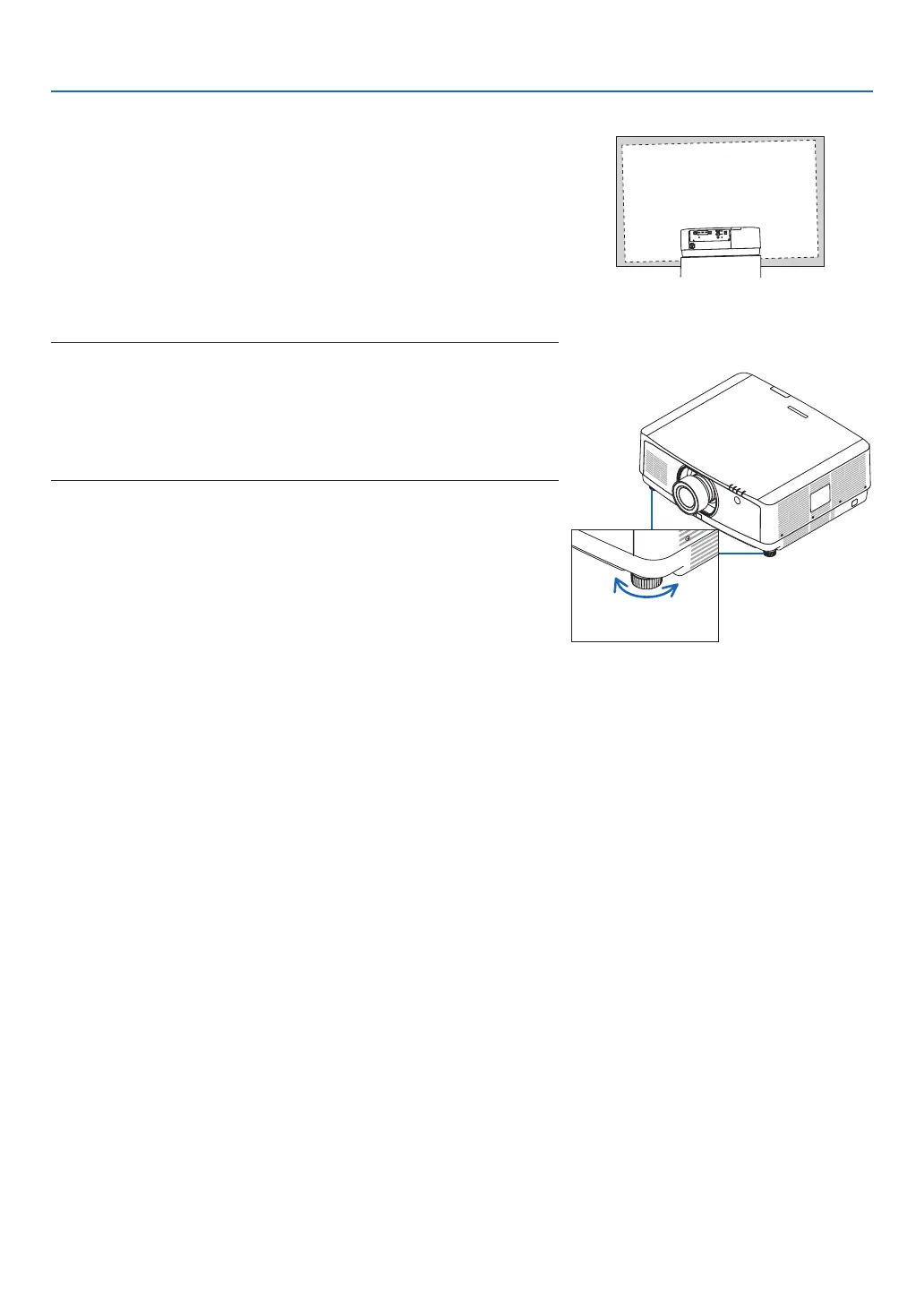

Adjusting the Tilt Foot
1. Turn the left and right tilt foot to adjust.
The tilt foot lengthen and shorten when turned.
Turn one of the tilt foot to adjust the image so that it is level.
• If the projected image is distorted, see “3-7 Correcting Horizontal
and Vertical Keystone Distortion [CORNERSTONE]” (→ page 36)
and “[GEOMETRIC CORRECTION]” (→ page 101).
• The tilt foot can be lengthened by a maximum of 10 mm/0.4".
• The tilt foot can be used to tilt the projector by a maximum of 1.4°.
NOTE:
• Do not lengthen the tilt foot any more than 10 mm/0.4". Doing so will make the
projector unstable.
• Do not use the tilt foot for any purpose other than adjusting inclination of the
projector installation angle.
Handling the tilt foot improperly, such as carrying the projector by grasping the
tilt foot or hooking it onto a wall using the tilt foot, could damage the projector.
Up
Tilt foot
Down
