8. Appendix

❶ Throw distance and screen size

Three separate bayonet style lenses can be used on this projector. Refer to the information on this page and use a

lens suited for the installation environment (screen size and throw distance). For instructions on mounting the lens,

see page 138.

Lens types and throw distance

Screen size

(inches)

Lens model name

NP40ZL NP41ZL NP43ZL

(inches) (m) (inches) (m) (inches) (m)

50 33 - 46 0.8 - 1.2 54 - 127 1.4 - 3.2 129 - 254 3.3 - 6.4

60 40 - 56 1.0 - 1.4 66 - 153 1.7 - 3.9 154 - 303 3.9 - 7.7

80 53 - 75 1.4 - 1.9 88 - 204 2.2 - 5.2 204 - 403 5.2 - 10.2

100 67 - 94 1.7 - 2.4 110 - 256 2.8 - 6.5 254 - 503 6.4 - 12.8

120 81 - 113 2.0 - 2.9 133 - 307 3.4 - 7.8 303 - 602 7.7 - 15.3

150 101 - 142 2.6 - 3.6 166 - 384 4.2 - 9.8 378 - 752 9.6 - 19.1

200 135 - 190 3.4 - 4.8 223 - 513 5.7 - 13.0 502 - 1001 12.7 - 25.4

240 163 - 229 4.1 - 5.8 267 - 616 6.8 - 15.6 601 - 1201 15.3 - 30.5

300 204 - 286 5.2 - 7.3 335 - 770 8.5 - 19.6 750 - 1500 19.1 - 38.1

400 272 - 382 6.9 - 9.7 447 - 1028 11.4 - 26.1 999 - 1998 25.4 - 50.8

500 340 - 478 8.6 - 12.1 559 - 1285 14.2 - 32.6 1247 - 2497 31.7 - 63.4

TIP

Calculation of the throw distance from the screen size

NP40ZL lens throw distance (inch/m) = H x 0.8 to H x 1.1 : 33"/0.8 m (min.) to 478"/12.1 m (max.)

NP41ZL lens throw distance (inch/m) = H x 1.3 to H x 3.0 : 54"/1.4 m (min.) to 1285"/32.6 m (max.)

NP43ZL lens throw distance (inch/m) = H x 2.9 to H x 5.7 : 129"/3.3 m (min.) to 2497"/63.4 m (max.)

“H” (Horizontal) refers to the screen width.

* Figures differ by several % with the table above because the calculation is approximate.

Ex.: Throw distance when projecting on a 150" screen using the NP41ZL lens:

According to the “Screen Size (for reference)” table (→ page 153), H (screen width) = 127.2"/323.1 cm.

The throw distance is 127.2"/323.1 cm × 1.3 to 127.2"/323.1 cm × 3.0 = 165"/420.0 cm to 382"/969.3 cm (because of the zoom lens).

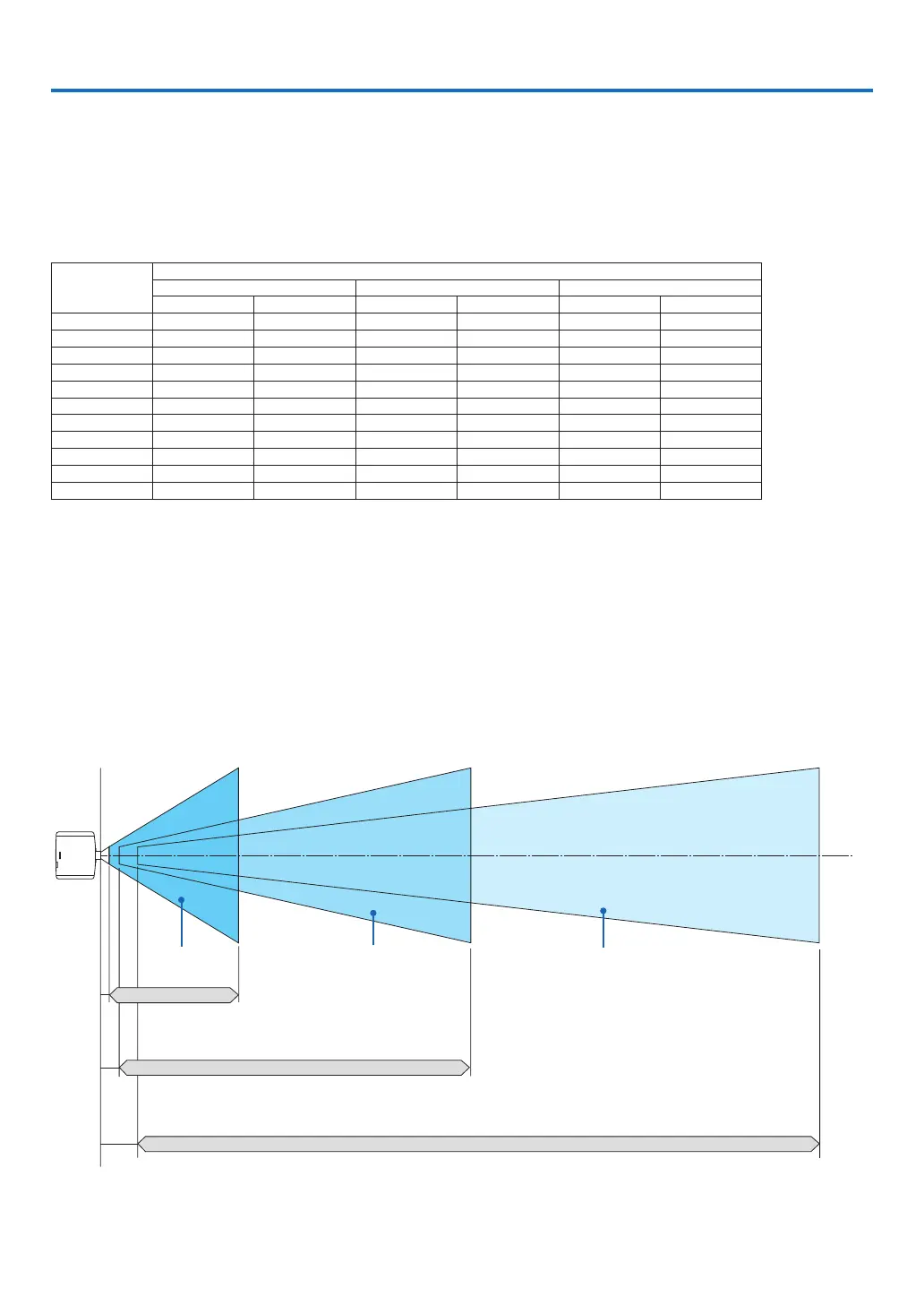

Projection range for the different lenses

50-500" 50-500" 50-500"

NP40ZL : 33" - 478"/0.8 - 12.1 m

NP41ZL : 54" - 1285"/1.4 - 32.6 m

NP43ZL : 129" - 2497"/3.3 - 63.4 m
