23
2. Projecting an Image (Basic Operation)
Applicable lens: NP40ZL/NP41ZL

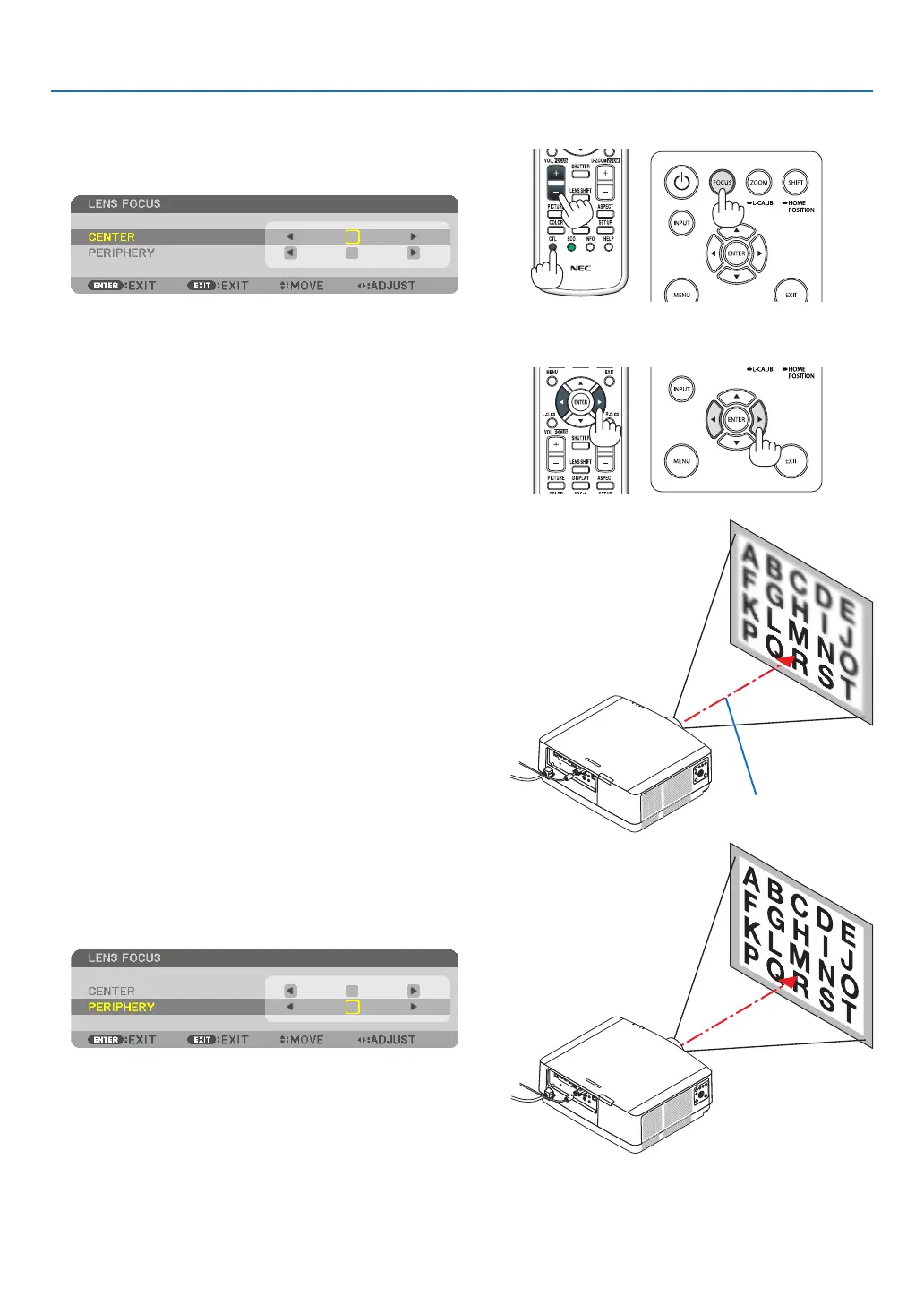

1. Press the FOCUS button on the cabinet.
The LENS FOCUS control screen will be displayed on.
* Press ◀▶ buttons to adjust focus. In another way, press
and hold the CTL button and then press VOL./FOCUS
+/− button on the remote control
2. When the cursor is on the CENTER on on-screen menu,
press either ◀ or ▶ button to align focus around the
optical axis.
* The picture shows and example when the lens shift
is moved upward. The focus for the lower part of the
screen is aligned.
When the lens is at the center, the focus for the center
of the screen is aligned.
Optical axis
3. Press ▼ button to select the PERIPHERY on the on-
screen menu, and then press either ◀ or ▶ button to
align the focus of screen peripheral area. During this
operation, the focus for around the optical axis will be
maintained.
To Next Page
