1. Check the product overview, supplied items and part names
9

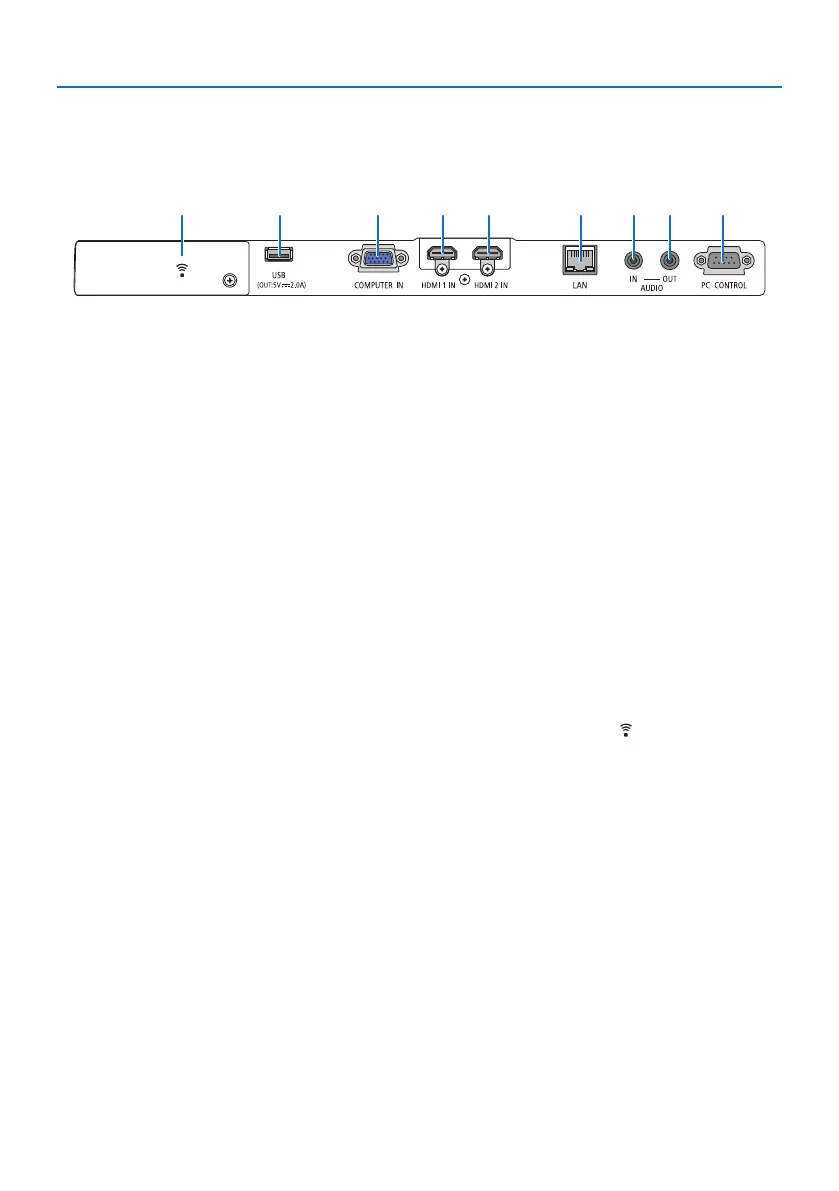

Terminal Panel Features
854621379
1. HDMI 1 IN Terminal (Type A)
(→ page 84, 85, 87)
2. HDMI 2 IN Terminal (Type A)
(→ page 84, 85, 87)
3.COMPUTERIN/ComponentInput
Terminal(MiniD-Sub15Pin)
(→ page 84, 86)
4.AUDIOINMiniJack(StereoMini)
(→ page 84, 86)
5.AUDIOOUTMiniJack(StereoMini)
Audio signal of the image projected from the
projector is output.
When audio equipment is connected, the
projector speaker is disabled.
6.LANPort(RJ-45)
(→ page 88)
7. USB Port (Type A)
Connect the USB memory. When picture data
is saved in a USB memory, the picture can be
projected with the [VIEWER] of the projector.
(→ page 95)
In addition, a 5 V/2.0 A power supply can be
supplied for expansion use.
8.PCCONTROLPort(D-Sub9Pin)
Use this port to connect a PC or control
system. This enables you to control the pro-
jector using serial communication protocol.
If you are writing your own program, typical
PC control codes are on page 139.
9. Wireless LAN cover (
)
There are two terminals behind the cover.
• USB(WirelessLAN)Port
(→ page 90)
• SERVICEPort(USBTypeB)
(for service purpose only)
