❷ Mounting the Optional Board (sold separately)
CAUTION
Beforemountingorremovingtheoptionalboard,besuretoturnofftheprojector,waitforthefanstostopandturn
offthemainpowerswitch.
Toolneeded:Phillipsscrewdriver(plus-head)
TheSB-01HCboardisusedasanexample.

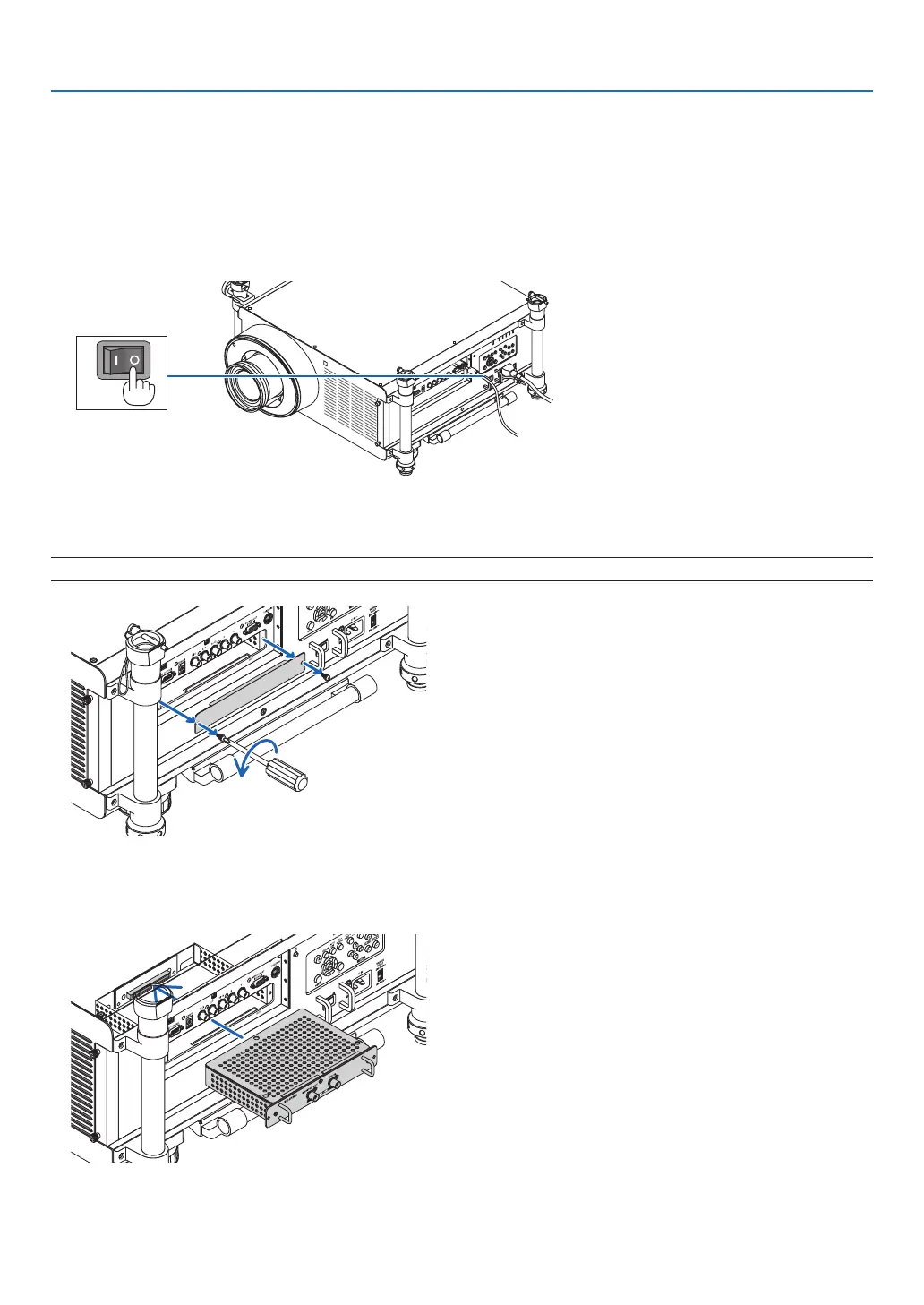

1. Turnoffthemainpowerswitchoftheprojector.
2. Loosenthetwoscrewsontheslotcoveroftheterminalpanel.
Remove the two screws and the slot cover.
NOTE:Keepthetwoscrewsandtheslotcover.
3. Inserttheoptionalboardintotheslot.
 Makesurethattheboardisinsertedintotheslotinthecorrectorientation.
 Incorrectorientationmaycausemiscommunicationbetweentheoptionalboardandprojector.
