NEC PH1000U - Cabinet Dimensions

226
9. Appendix
578 (22.8) 653 (25.7)
39.5 (1.6)
499 (19.6)
430 (16.9)
235 (9.3)
283.7 (11.2)
628 (24.7)
480 (18.9)
558 (22)
700 (27.6)
119.9
(4.7)
155.3 (6.1)
333 (13.1)
48.7 (1.9)

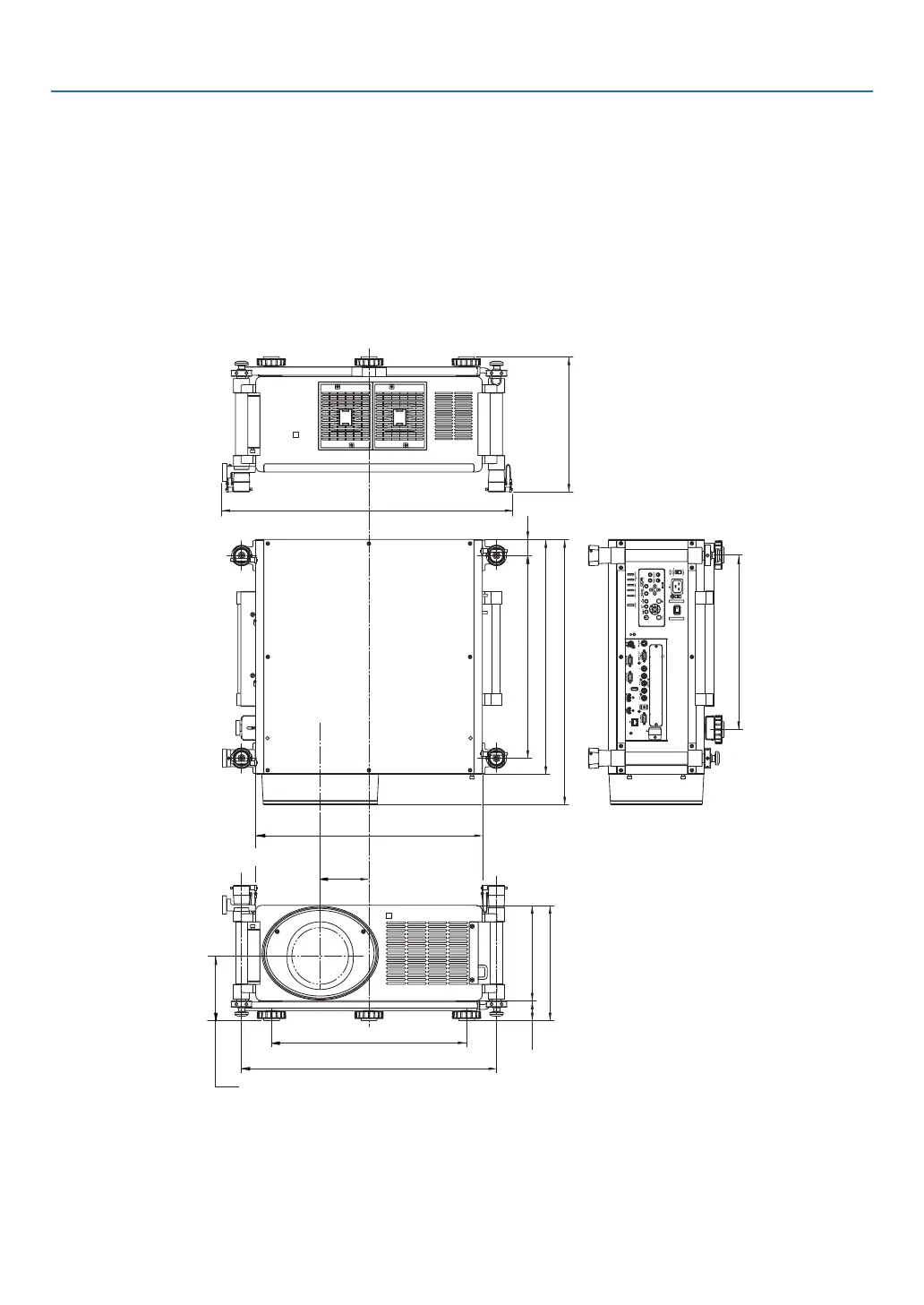

 Cabinet Dimensions
Lens center
Lens center
Unit:mm(inch)
