R900 cellular endpoint Wall and Pit MIU Installation and Maintenance
15
Chapter 4: Wall
Clear the selected location of all obstructions.
Avoid installing the R900 cellular endpoint behind metal fences or walls.
The maximum cable length between the encoder register and R900 cellular endpoint
depends on the register's manufacturer and model. See the following table for the
maximum cable lengths.

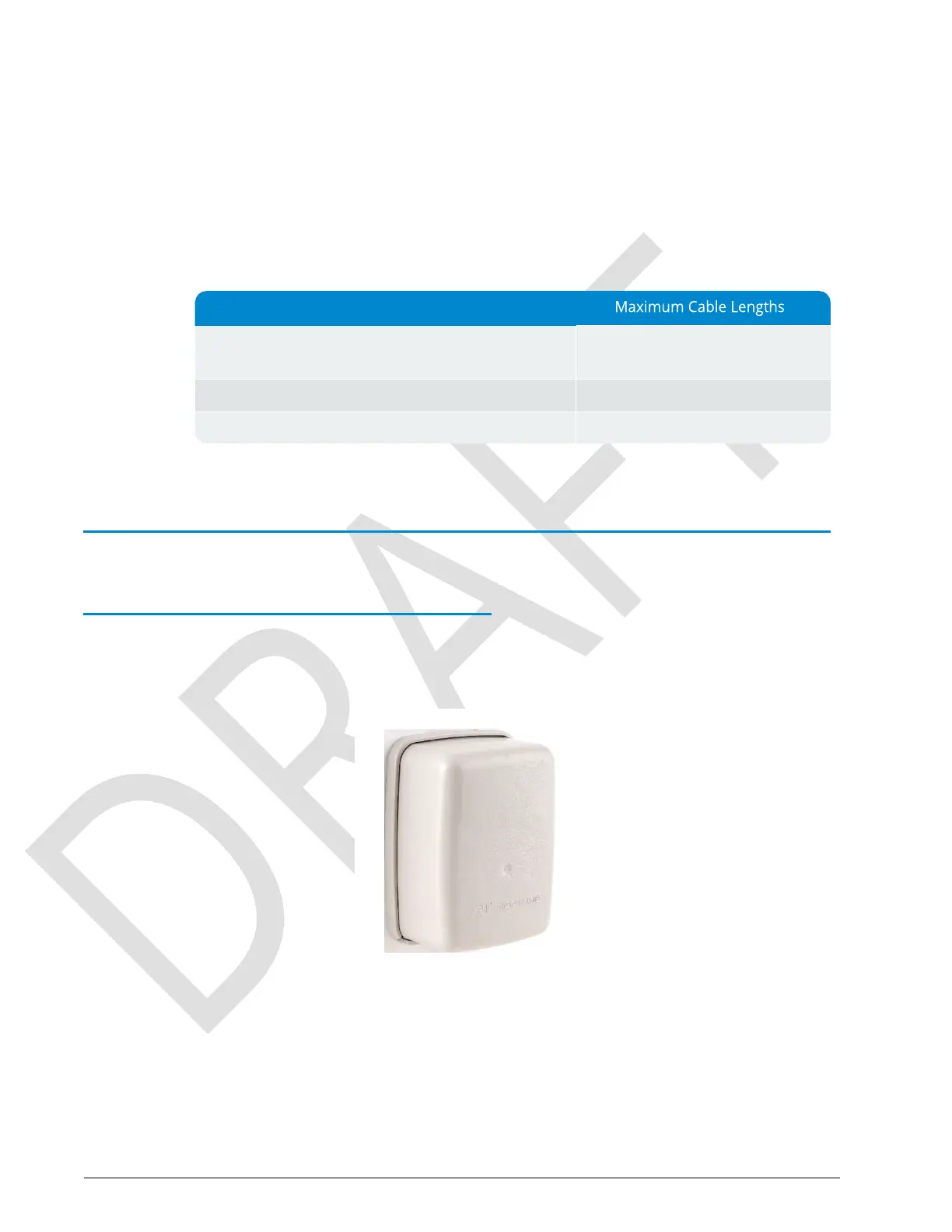

Table 7 – Maximum Cable Lengths
Installing the R900 cellular endpoint
This section defines the procedure to install the wall R900 cellular endpoint.
Removing the Main Housing
Complete the following steps to install the wall R900 cellular endpoint.
1.
Remove the main housing from the adapter.
Figure 12 – Main Housing
Encoder Register
ARB
®
V. Meets manufacturer's published
for wire length to the encoder.
ProRead™, E-CODER
®
, ProCoder™, MACH 10
®
.
Sensus Protocol registers.
500 feet (152 meters).
200 feet (61 meters).
To Next Page
