R900 cellular endpoint Wall and Pit MIU Installation and Maintenance
17
Chapter 4: Wall
2.
Pair the wires according to the color diagram.

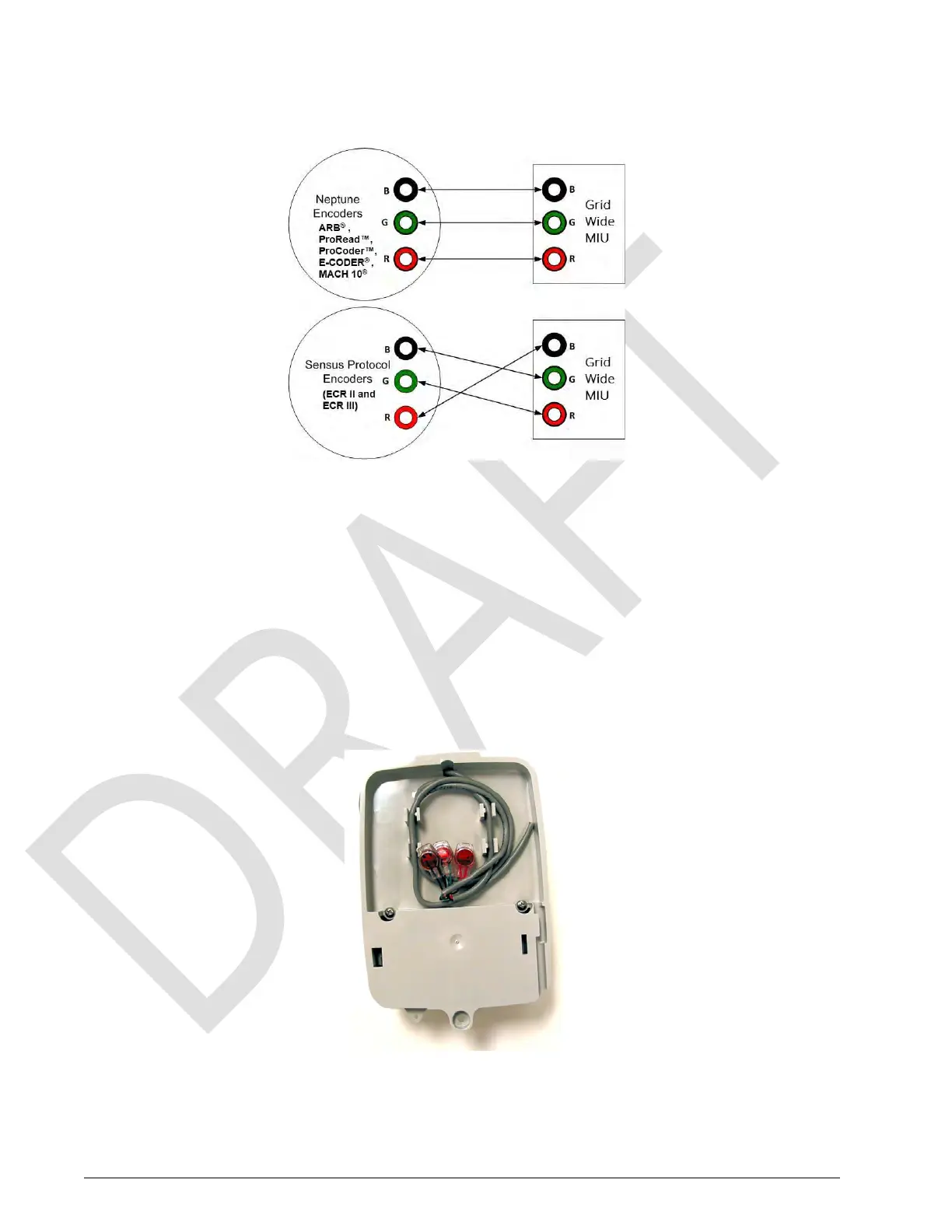

Figure 15 – Color Code for Wires
3.
Slide the paired wires into the grooves provided until they seat into the back of the gel
cap.
4.
Squeeze the gel cap firmly using the appropriate crimping tool to ensure a good
connection.
5.
Repeat this process until all connections are complete.
6.
Store excess wire and Scotchloks in the hollow cavity in the back of the R900 cellular
endpoint using the strain relief guides.
Figure 16 – Cable in Back of Mounting Adapter
