Chapter 5: Pit
Installation
R900 cellular endpoint Wall and Pit MIU Installation and Maintenance
31

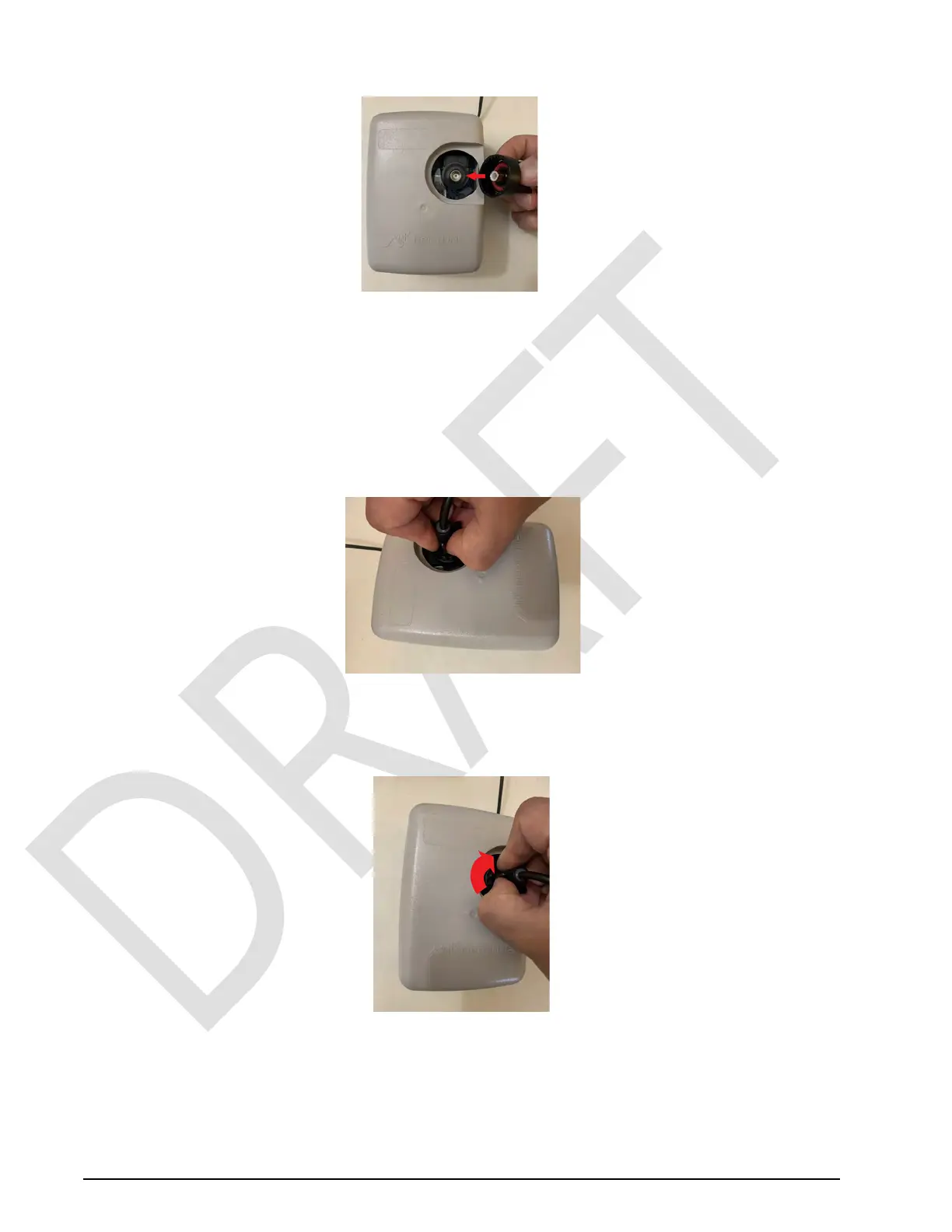

Figure 32 R900 cellular endpoint Conductor
Pin
6.
When the pin is properly aligned, push the antenna connection down fully onto the
connection of the endpoint, so that the latch plate is engaged on all three posts.
Figure 33 Aligning the Pin
7.
Turn the antenna clockwise until it locks into place.
Figure 34 Locking the Antenna into Place
8.
Connect the endpoint to the meter/register using the appropriate 3-wire
connection type (see “Installing scotchlock connectors” section for more details on
splicing)
