Chapter 5: Pit Installation
26
R900 cellular endpoint Wall and Pit MIU Installation and Maintenance Guide

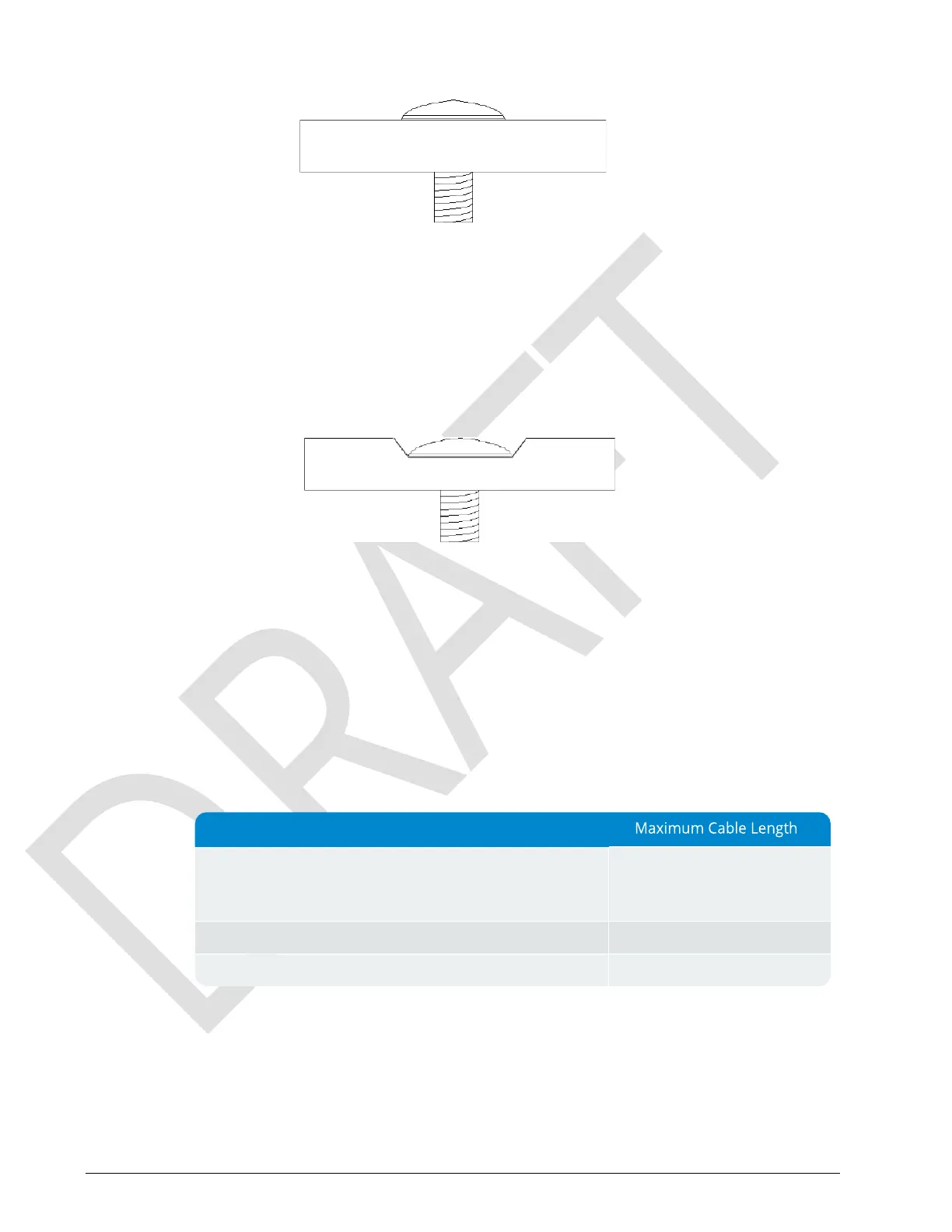

Figure 26 –Flange or Antenna Placement for Low Traffic Areas
• When installing in a high traffic area, Neptune recommends that the dome of the
flange or pit antenna be recessed in the pit lid as shown in the following
figure.
• Recessing the installation reduces the range of the pit antenna.
Figure 27 – Flange or Antenna Placement for High Traffic Areas
Although the R900 cellular endpoint has a cable already attached (2 feet or 6 feet),
some installations can require additional cable. In these cases, the maximum cable length
between the encoder register and the R900 cellular endpoint depends on the register's
manufacturer and model. For more information, see "Encoder Register Interface" on
page 3.
Table 8 – Cable Length and Manufacturer
Encoder Register
®
V Meets manufacturer's published
for wire length between encoder and
ProRead™, E-CODER
®
, ProCoder™, MACH 10
®
.
Sensus Protocol Register.
500 feet (152 meters).
200
feet (61 meters).
