32
R900 cellular endpoint Wall and Pit MIU Installation and Maintenance Guide

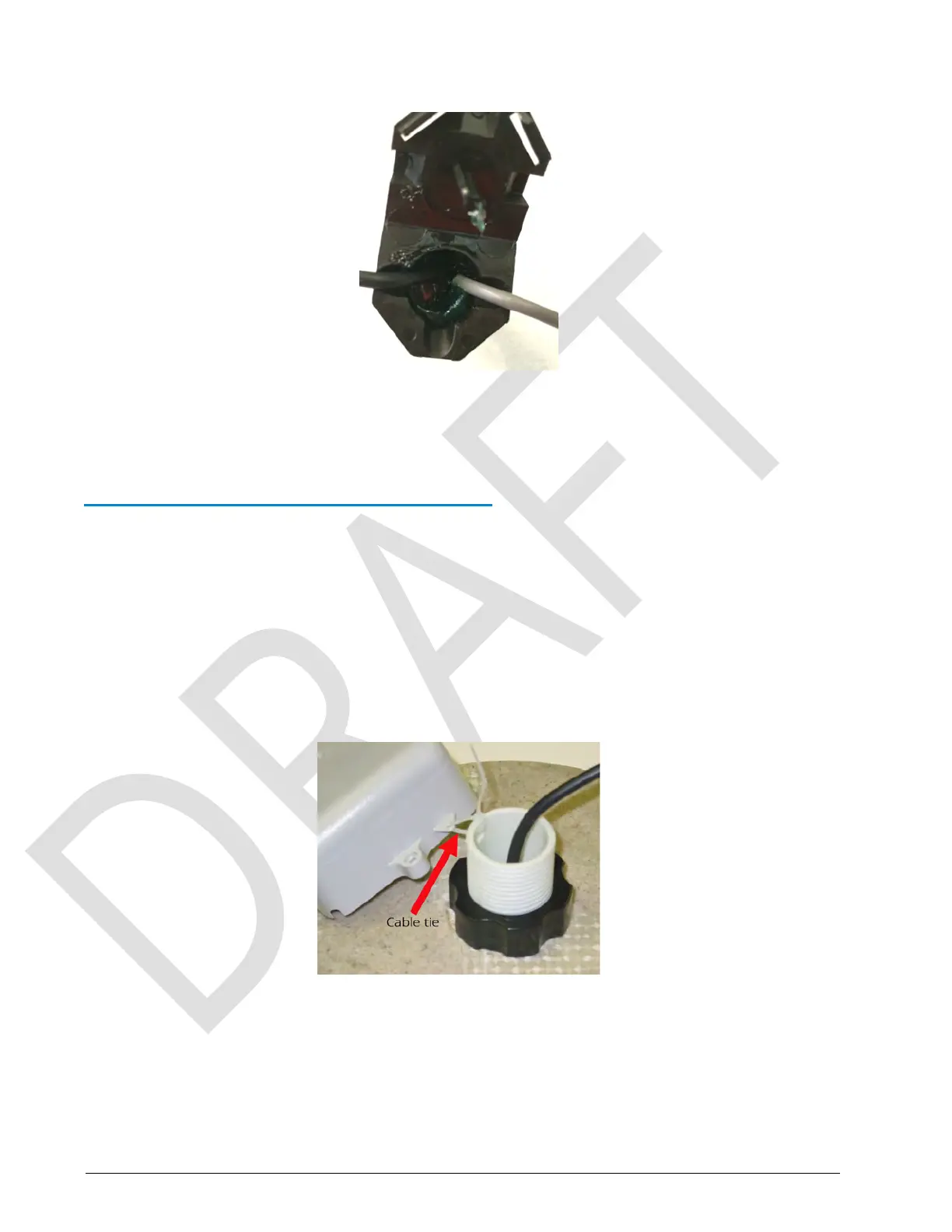

Figure 43 – Gray Wires in Slots
3.
Snap the cover closed to finish the installation.
Securing the Endpoint to the Antenna Tube
Follow this procedure in deep pits or vaults to secure the R900 cellular endpoint to the Antenna
Tube
1.
Place the R900 cellular endpoint in the pit location:
In a shallow pit application, you can place the R900 cellular endpoint beside the meter.
In deep pit applications, use a cable tie to suspend the R900 cellular endpoint from the
antenna shaft.
Do not lodge the R900 cellular endpoint between the meter box and any
components inside the box.
Figure 44 – Attaching the R900 cellular endpoint to the Antenna Shaft
2.
Place the R900 cellular endpoint in such a way that it does not lodge itself when
the pit lid is removed.
Make sure you activate the endpoint before completing the installation.
