Chapter 5: Pit Installation
30
R900 cellular endpoint Wall and Pit MIU Installation and Maintenance Guide

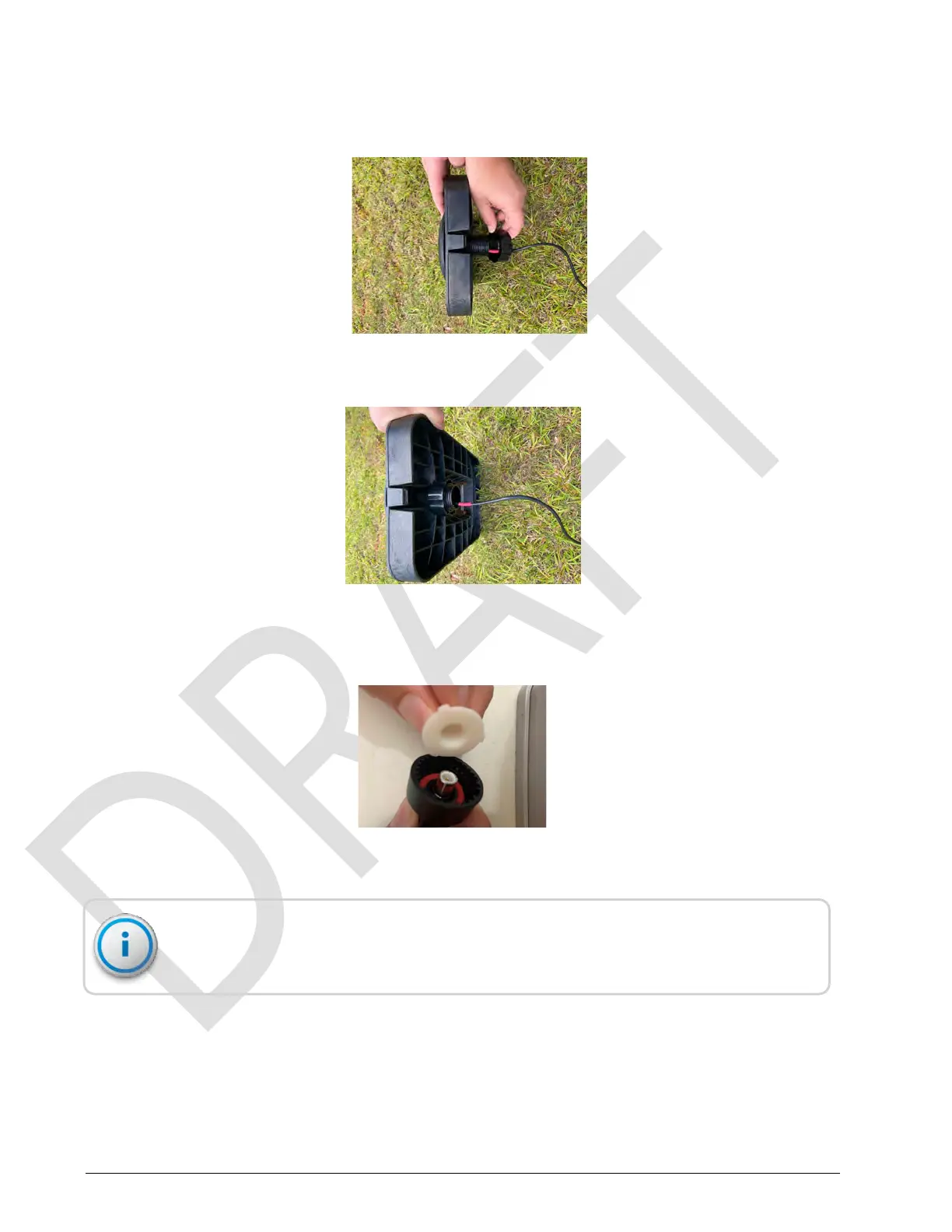

Figure 28 Inserting the Antenna into the Pit Lid
2.
Thread the locking nut onto the antenna, with the unthreaded end toward the lid.
Figure 29 Locking the Nut on the Antenna
Figure 30 Antenna Installation Complete
3.
Remove the protective cap from the antenna connector by pushing down and
twisting the protective cap counterclockwise
Figure 31 Removing the Protective Cap
4.
Remove the protective cap from the antenna connection on the endpoint.
5.
Connect the antenna to the endpoint ensuring that the center conductor pin
inside the connector is lined up with the hole in the center of the connector on
the endpoint.
Make sure there is a red, O-ring gasket in the connector and there is Novagard
®
gel in the
connector cavity.
