Chapter 5: Pit
R900 cellular endpoint Wall and Pit MIU Installation and Maintenance
25

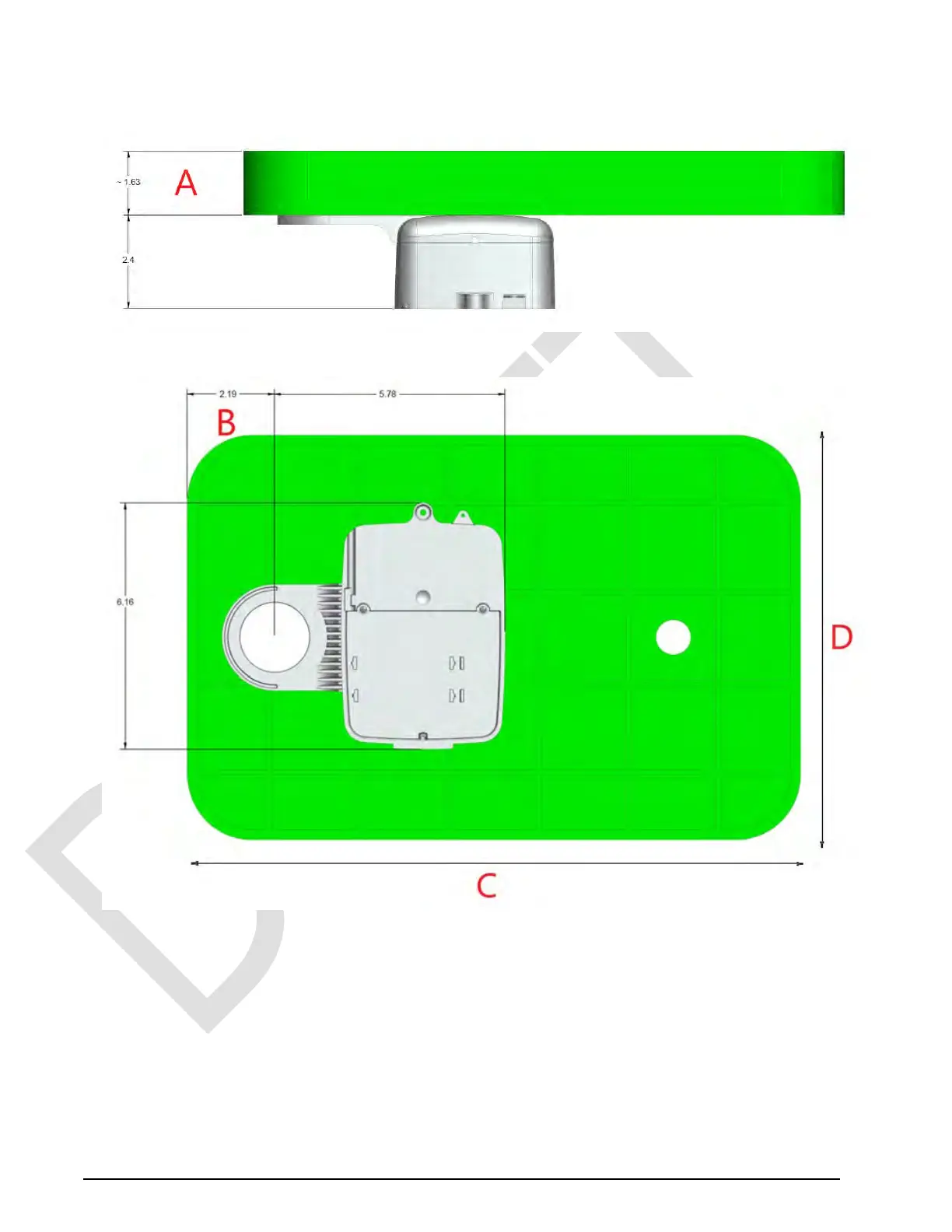

Figure 27 – R900 cellular endpoint - Pit w/Internal Antenna Clearances
• For Pit endpoints with the internal antenna, the meter pit must use a plastic
polymer lid. Pits with metal lids require the pit endpoint with external
antenna.
• Make sure the pit location gives adequate room for installing both the R900 cellular
endpoint and the flange or TTL pit antenna (if used).
• Install the flange or pit antenna above the lid in low traffic areas, as illustrated below, for
maximum
performance.
