NETGEAR GC510P User Manual

Hardware Description
The following sections describes the switch hardware features.
Front Panel
The front panel does not contain any components other than two LEDs: The upper LED is the Cloud
Connection LED and the lower LED is the Power LED (see LEDs on page 13).

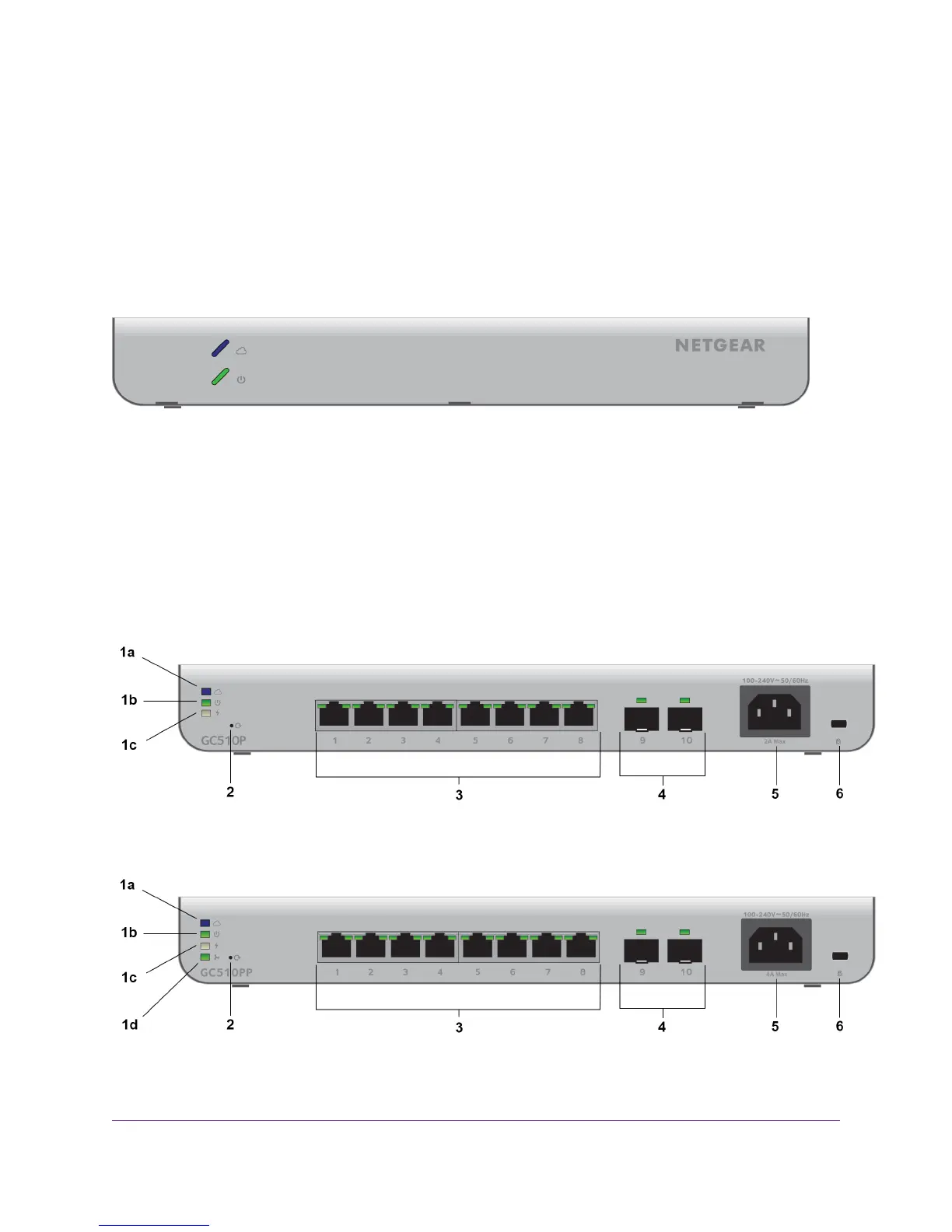

Figure 1. Front panel
Back Panel
Both model GC510P and model GC510PP provide eight 10/100/1000BASE-T RJ-45 PoE+ ports and two
dedicated Gigabit SFP fiber ports.
Both models integrate a fixed, internal power supply unit (PSU). Model GC510PP also integrates a fan.
The following figures show the back panels.
Figure 2. Back panel model GC510P
Figure 3. Back panel model GC510PP
Hardware Overview
12
Insight Managed 8-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP Fiber Ports

NETGEAR GC510P Specifications

General

Switch type	Managed
Quality of Service (QoS) support	Yes
Console port	RJ-45
Power connector	DC-in jack
Installed SFP modules quantity	2
Installed SFP+ modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	-
MAC address table	- entries
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	134 W
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Depth	188 mm
Width	314 mm
Height	44 mm
Weight	2010 g
