Connect PoE Equipment for Surveillance and Security
The following figure shows an example of how you can connect PoE and non-PoE equipment to the switch
for surveillance and security purposes.
In a small office or home office network, the blue network icon represents a router that is connected to an
Internet modem. In such a setup, you must connect one port on the switch to a LAN port on the router.

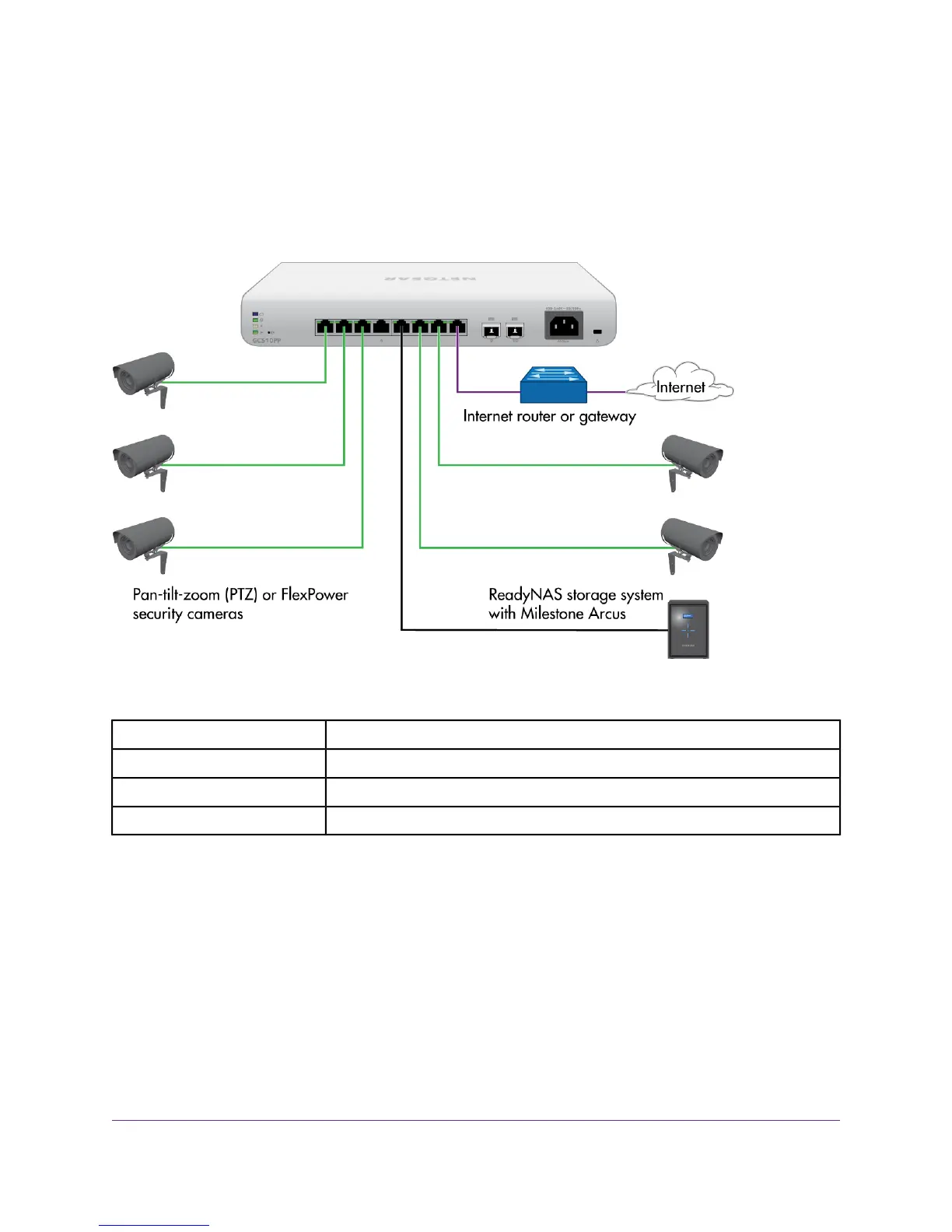

Figure 5. Sample switch surveilliance and security application
ConnectionLine Color
Internet router or gatewayPurple
PoE+ devices such as pan-tilt-zoom (PTZ) or FlexPower security camerasGreen
Network devices such as a ReadyNAS storage systemBlack
Applications
20
Insight Managed 8-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP Fiber Ports
