NETGEAR GC510P User Manual

Wall-Mount the Switch Horizontally With the Back Panel Facing Down
To mount the switch horizontally to a wall with the back panel facing down (that is, with the
cables at the bottom):

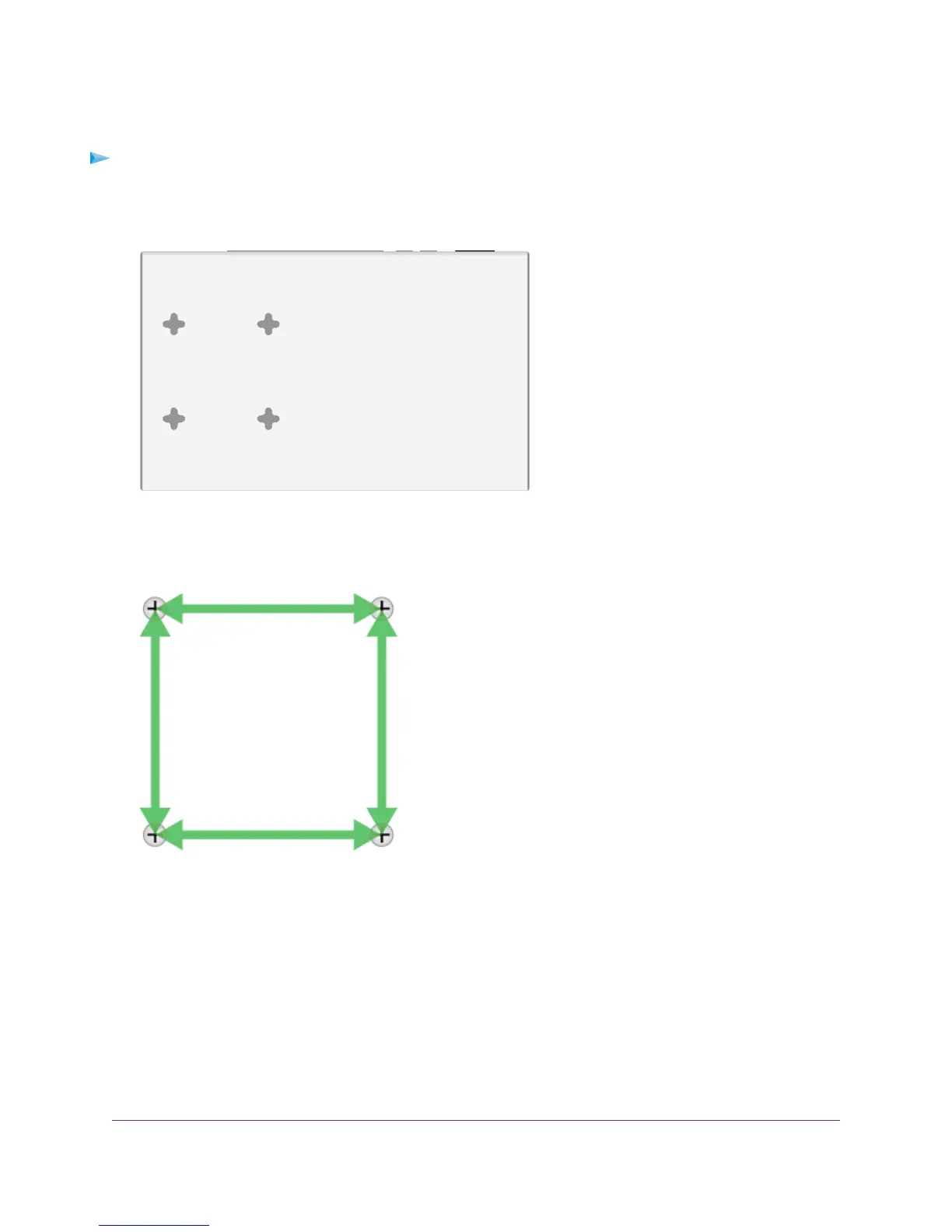

1. Locate the four holes on the bottom panel of the switch.
2. Mark the four mounting holes on the wall where you want to mount the switch.
The four mounting holes must be in a square at precise distances of 75 mm (2.953 inches) from each
other. In the following figure, each green arrow represents 75 mm.
3. Drill holes into the wall for four anchors in which you will insert M4 x L25 mm screws.
The screws and anchors are in the switch package.
4. Insert the anchors into the wall and tighten the screws with a No. 2 Phillips screwdriver.
Installation
26
Insight Managed 8-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP Fiber Ports

NETGEAR GC510P Specifications

General

Switch type	Managed
Quality of Service (QoS) support	Yes
Console port	RJ-45
Power connector	DC-in jack
Installed SFP modules quantity	2
Installed SFP+ modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	-
MAC address table	- entries
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	134 W
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Depth	188 mm
Width	314 mm
Height	44 mm
Weight	2010 g
