NETGEAR GC510P User Manual

Leave about 6 mm (¼ inch) of each screw protruded from the wall so that you can insert the screws
into the holes on the bottom of the switch.
5. Line up the holes on the bottom panel of the switch with the screws in the wall and mount the switch to
the wall.

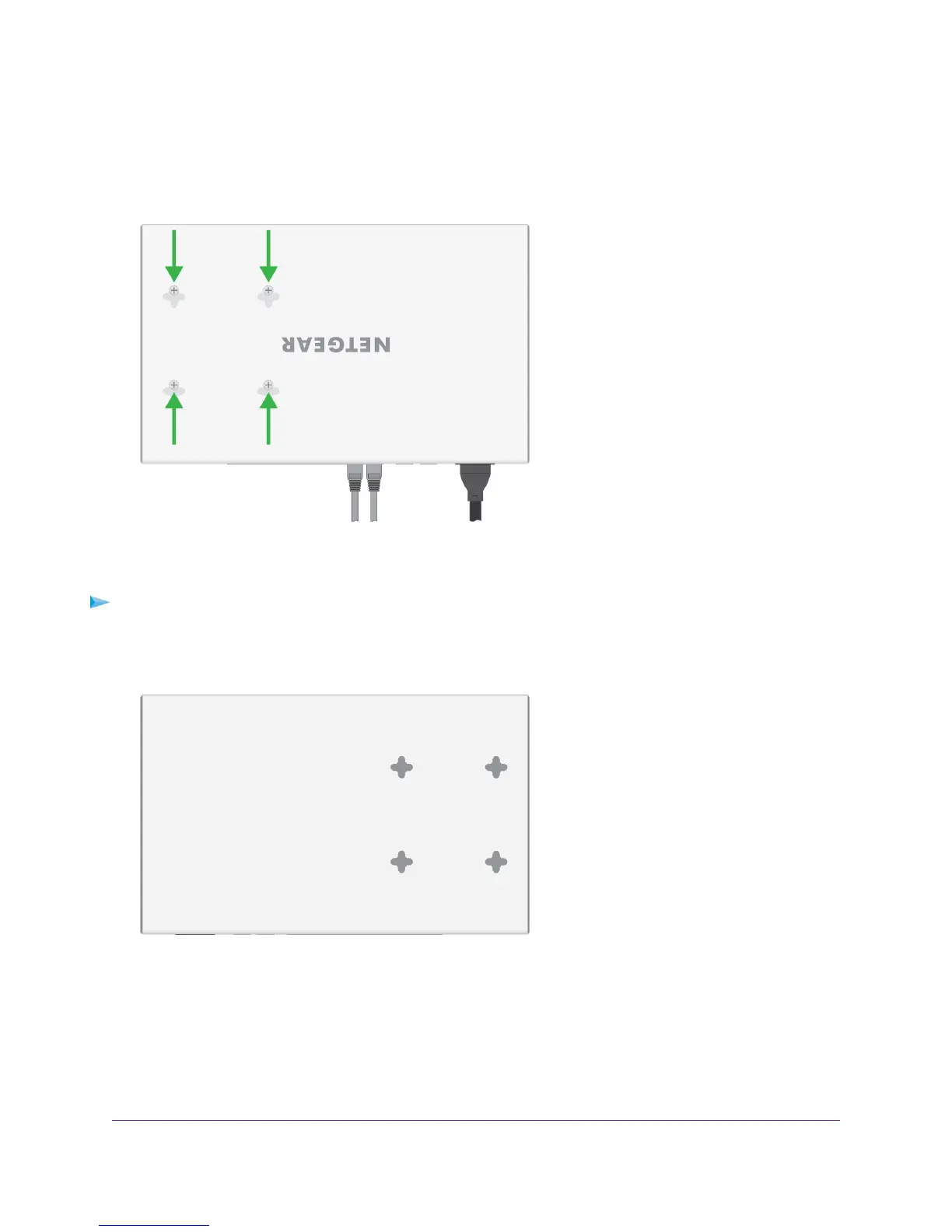

Wall-Mount the Switch Horizontally With the Back Panel Facing Up
To mount the switch horizontally to a wall with the back panel facing up (that is, with the
cables at the top):
1. Locate the four holes in the bottom panel of the switch.
2. Mark the four mounting holes on the wall where you want to mount the switch.
Installation
27
Insight Managed 8-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP Fiber Ports

NETGEAR GC510P Specifications

General

Switch type	Managed
Quality of Service (QoS) support	Yes
Console port	RJ-45
Power connector	DC-in jack
Installed SFP modules quantity	2
Installed SFP+ modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	-
MAC address table	- entries
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	134 W
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Depth	188 mm
Width	314 mm
Height	44 mm
Weight	2010 g
