NETGEAR GC510P User Manual

Contact your NETGEAR reseller to purchase these modules. If you do not want to
install an SFP module, skip this procedure.
Note

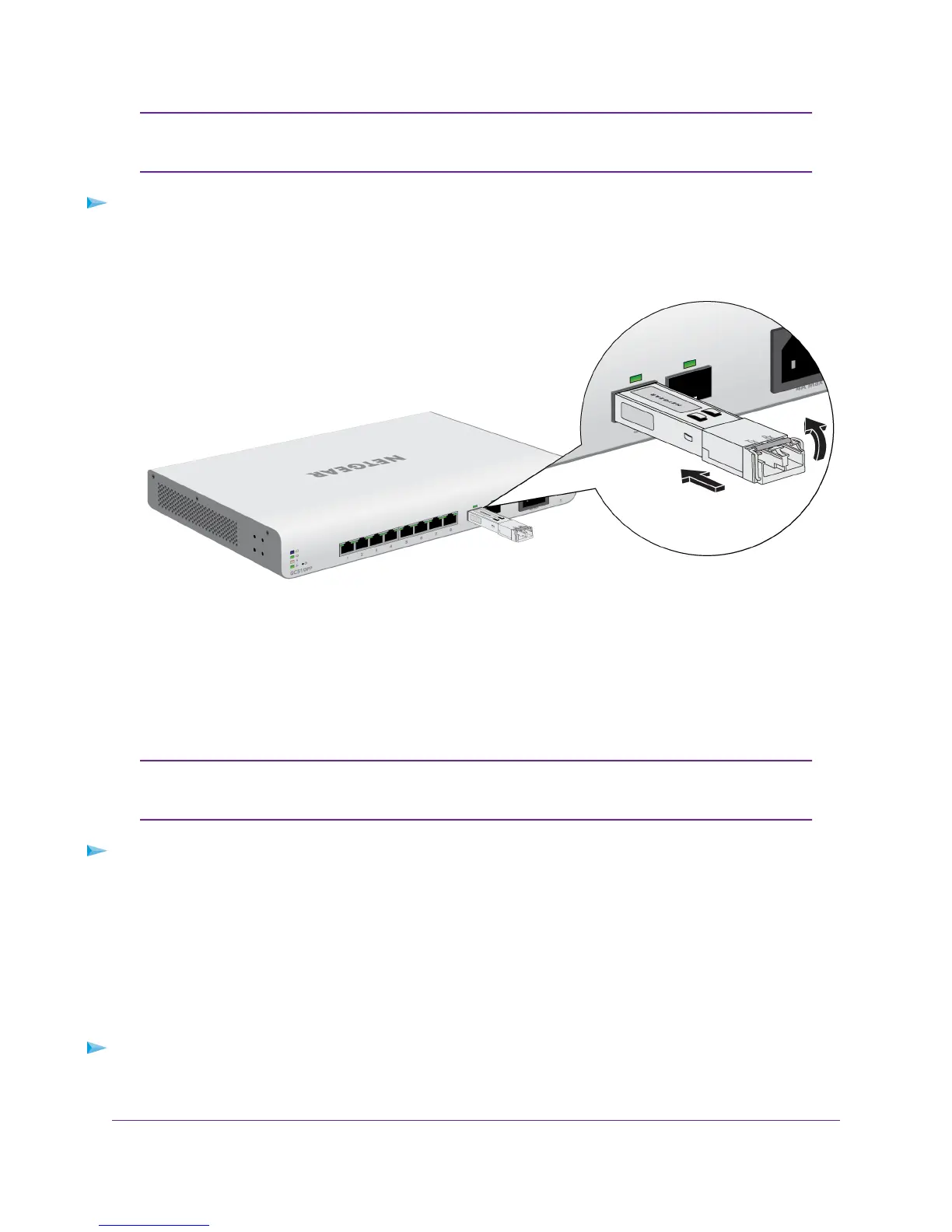

To install an SFP transceiver module:
1. Insert the transceiver into the SFP port.
2. Press firmly on the flange of the module to seat it securely into the connector.
Step 6: Connect Devices to the Switch
The following procedure describes how to connect devices to the switch’s RJ-45 ports.The switch supports
Auto Uplink technology, which allows you to attach devices using either straight-through or crossover cables.
Use a Category 5 (Cat 5), Cat 5e, or Cat 6 cable that is terminated with an RJ-45 connector.
Ethernet specifications limit the cable length between the switch and the attached
device to 328 feet (100 meters).
Note
To connect devices to the switch’s RJ-45 ports:
1. Connect a PoE or non-PoE device to an RJ-45 network port on the switch front panel.
2. Verify that all cables are installed correctly.
Step 7: Check the Installation
Before you apply power to the switch, perform the following steps.
To check the installation:
1. Inspect the equipment thoroughly.
2. Verify that all cables are installed correctly.
Installation
32
Insight Managed 8-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP Fiber Ports

NETGEAR GC510P Specifications

General

Switch type	Managed
Quality of Service (QoS) support	Yes
Console port	RJ-45
Power connector	DC-in jack
Installed SFP modules quantity	2
Installed SFP+ modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	-
MAC address table	- entries
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	134 W
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Depth	188 mm
Width	314 mm
Height	44 mm
Weight	2010 g
