Reference Manual for the ProSafe VPN Firewall FVS114
6-18 Advanced Virtual Private Networking
202-10098-01, April 2005
c.
From the main menu Advanced section, click the LAN IP Setup link. The following
menu appears

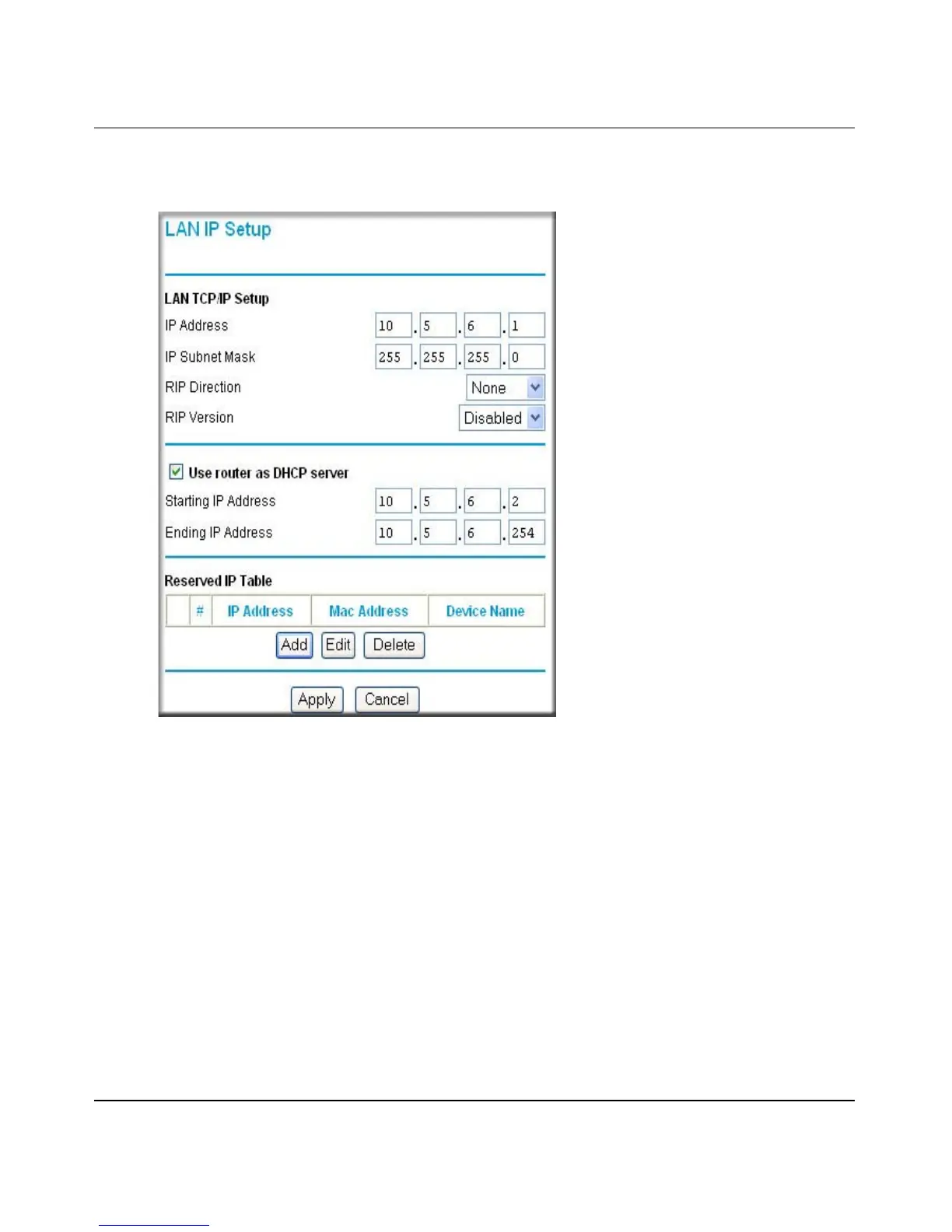

Figure 6-8: LAN IP Setup menu
d.
Configure the LAN IP address according to the settings above and click Apply to save
your settings. For more information on LAN TCP/IP setup topics, please see “Configuring
LAN TCP/IP Setup Parameters” on page 8-5.
Note: After you click Apply to change the LAN IP address settings, your workstation will
be disconnected from the FVS114. You will have to log on with http://10.5.6.1 which is
now the address you use to connect to the built-in Web-based configuration manager of
the FVS114.
