Reference Manual for the ProSafe VPN Firewall FVS114
Advanced Virtual Private Networking 6-19
202-10098-01, April 2005
3. Set up the IKE Policy illustrated below on the FVS114.
a. From the main menu VPN section, click on the IKE Policies link, and then click the Add
button to display the screen below.

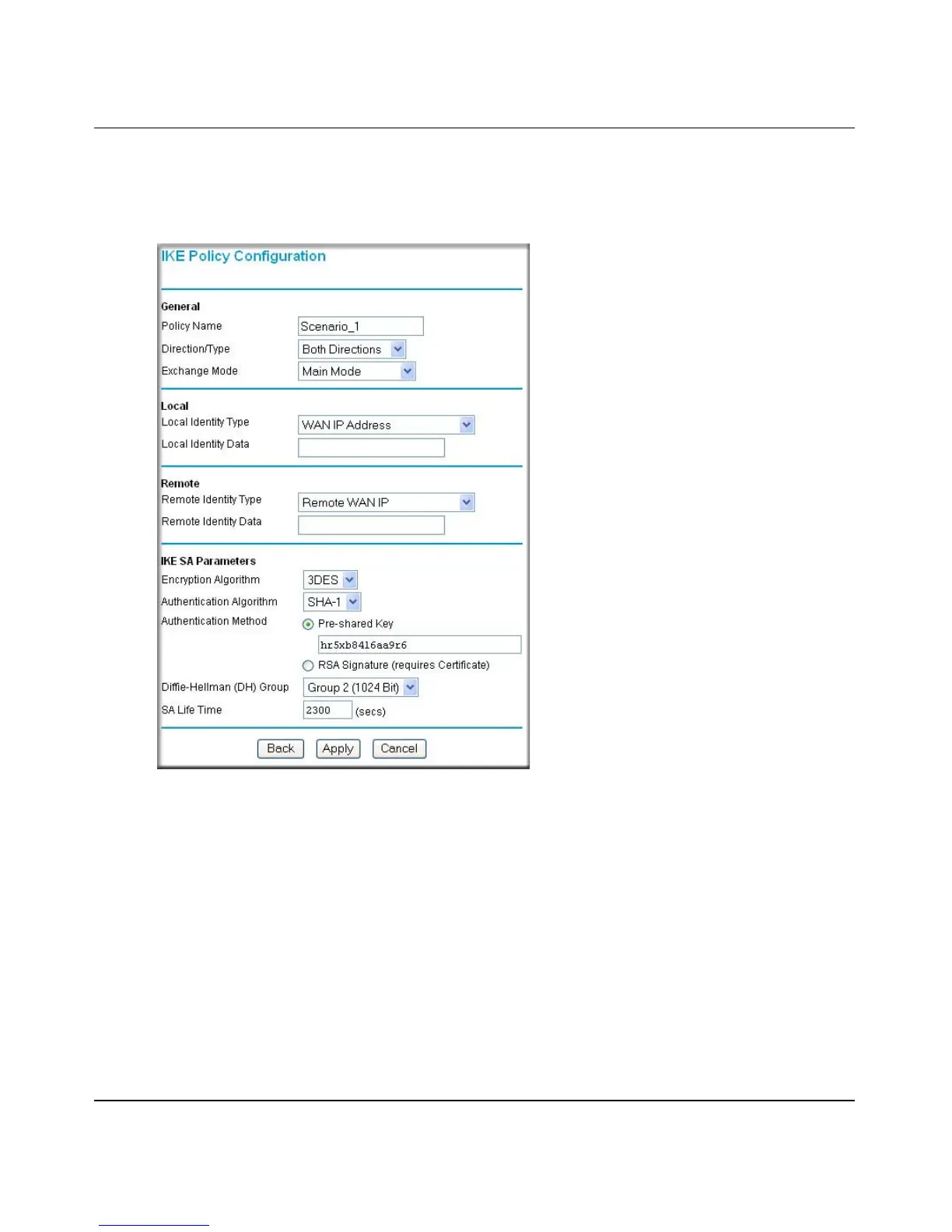

Figure 6-9: Scenario 1 IKE Policy
b.
Configure the IKE Policy according to the settings in the illustration above and click
Apply to save your settings. For more information on IKE Policy topics, please see “IKE
Policies’ Automatic Key and Authentication Management” on page 6-3.
