Reference Manual for the ProSafe VPN Firewall FVS114
6-20 Advanced Virtual Private Networking
202-10098-01, April 2005
4. Set up the FVS114 VPN -Auto Policy illustrated below.
a. From the main menu VPN section, click on the VPN Policies link, and then click on the
Add Auto Policy button.

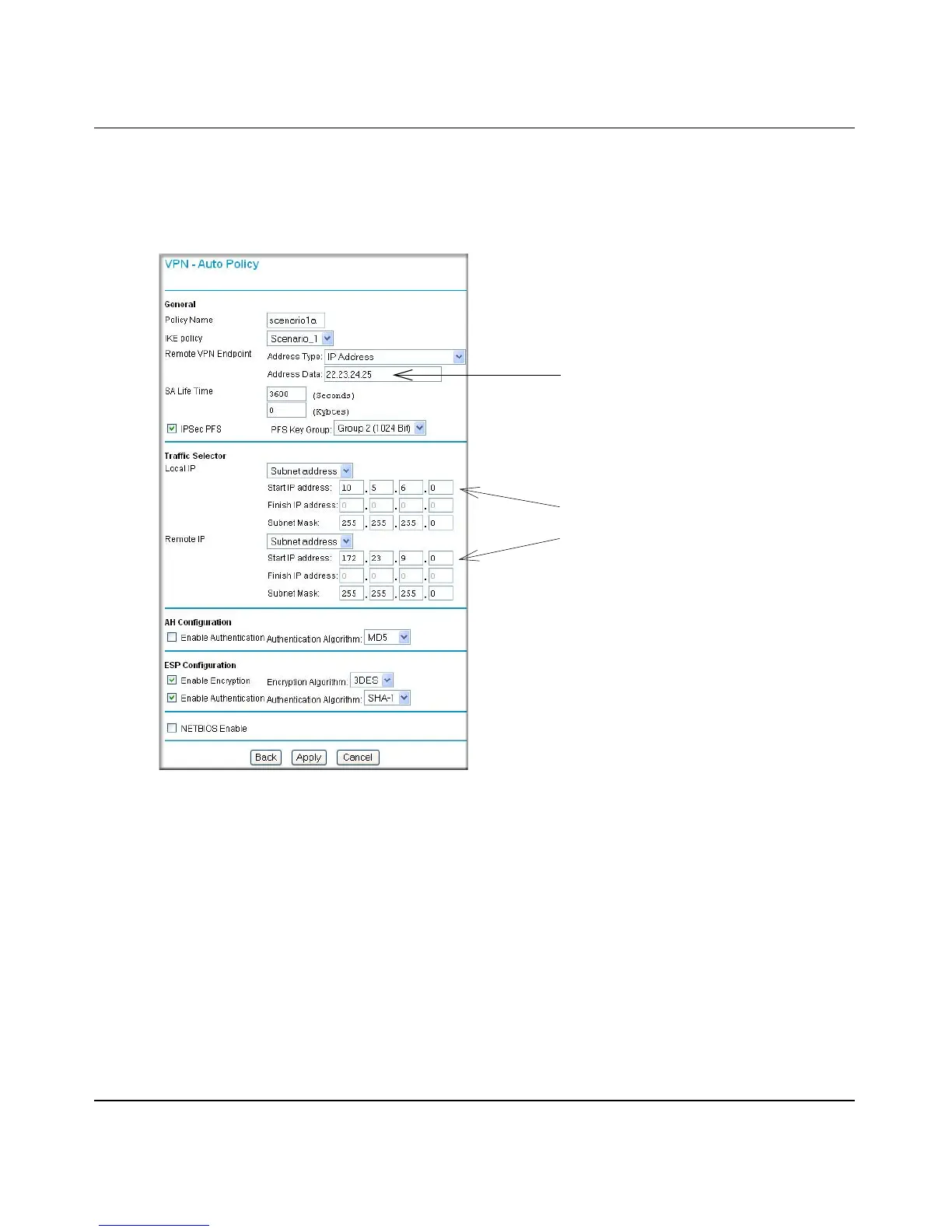

Figure 6-10: Scenario 1 VPN - Auto Policy
b.
Configure the IKE Policy according to the settings in the illustration above and click
Apply to save your settings. For more information on IKE Policy topics, please see “IKE
Policies’ Automatic Key and Authentication Management” on page 6-3.
5. After applying these changes, all traffic from the range of LAN IP addresses specified on
FVS114 A and FVS114 B will flow over a secure VPN tunnel.
WAN IP
address
LAN IP
addresses
