Storage Central Turbo Model SC101T and Storage Central Model SC101 User Manual
1-3
v1.0, December 2006

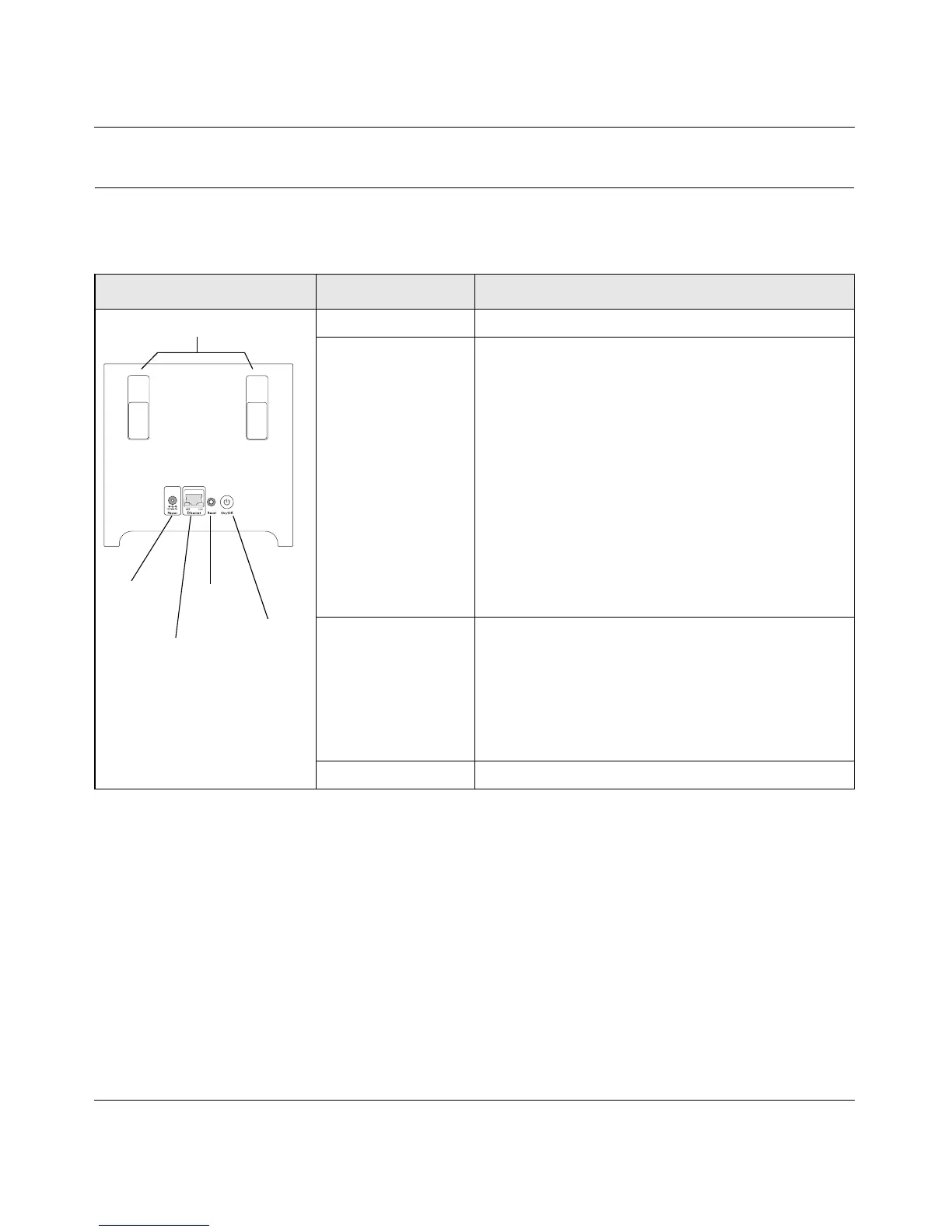

SC101T Rear Panel
The Storage Central Turbo SC101T rear panel is shown and described in the following table.
SC101T Rear Panel Item Description
Figure 1-2
Power connector Connects to the SC101T power adapter
Ethernet port with
LEDs
Use this port to connect to an Ethernet LAN.
The port has a green LED and a yellow LED to
indicate Ethernet LAN Link Activity.
• Green off: No power, or connected to 10/100Mbps
Ethernet LAN.
• Green on: Connected to 1Gbps Ethernet LAN.
• Green blinking: Data traffic on the 1Gbps
Ethernet LAN.
• Yellow off: No power, or connected to 1Gbps
Ethernet LAN.
• Yellow on: Connected to 10/100Mbps Ethernet
LAN.
• Yellow blinking: Data traffic on the 10/100Mbps
Ethernet LAN.
Reset button You can use the rest button to reboot the Storage
Central, or to reset it to factory default settings.
• Reboot: Push and release to reboot.
• Reset: Push and hold for eight or more seconds to
reset the Storage Central to factory defaults. This
restores the password for administrator to
“password”, and detaches all drives.
On/Off button Turn the Storage Central on or off.
Power
Ethernet
Reset
On/Off
connector
port with LEDs
button
button
latches
