Storage Central Turbo Model SC101T and Storage Central Model SC101 User Manual
2-8
v1.0, December 2006

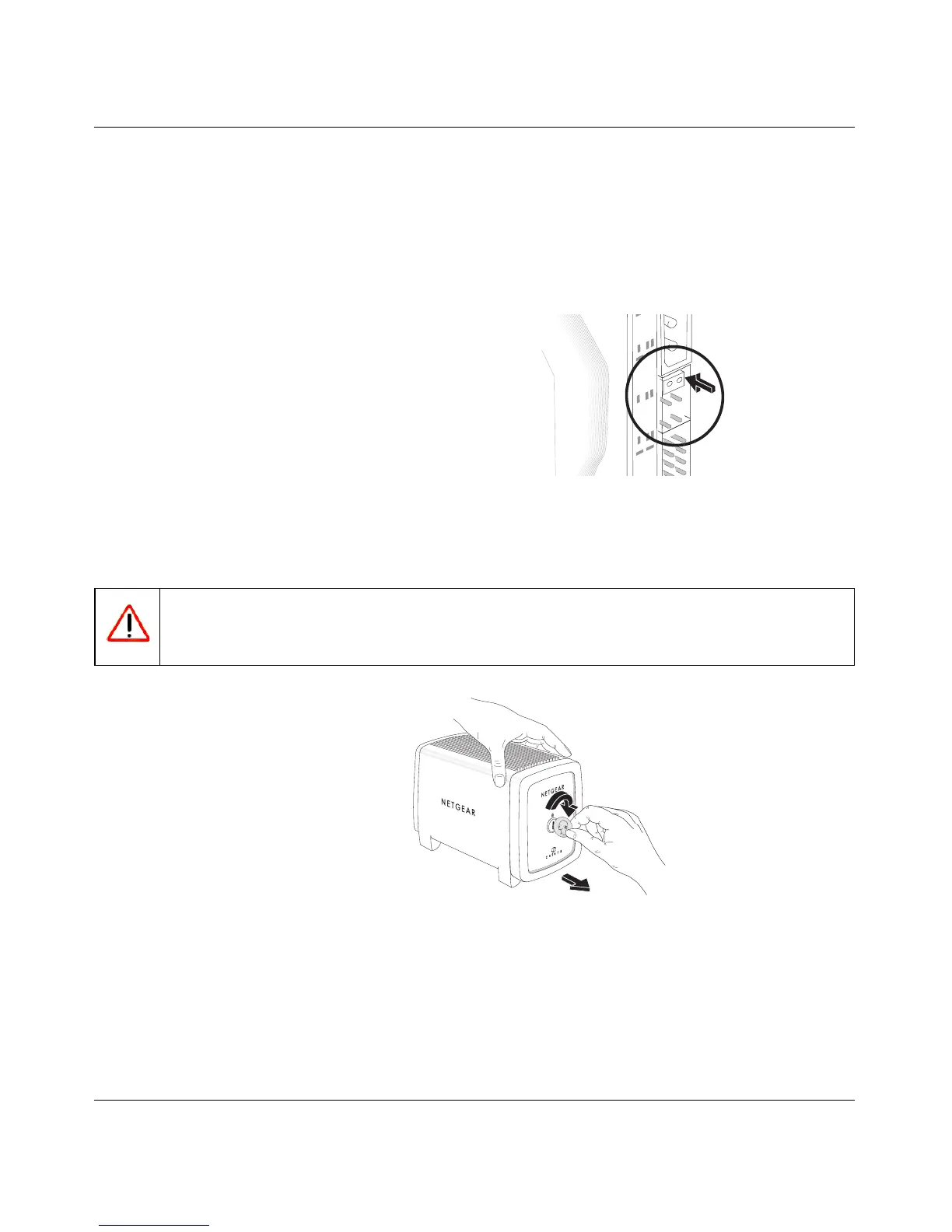

Verifying the Hard Disk “Cable Select” Setting
Hard disks must be set for cable select (marked “CS” on some drives) in order to work in the
Storage Central SC101. This is the default setting for many hard disks, but you should check this
setting before installation.
To verify the cable select setting:
Installing a Hard Disk and Connecting the SC101
1. Locate the hard disk jumpers.
• An example is shown to the right, but your hard
disk may differ.
• Look on the hard disk, or in the documentation
that came with the hard disk to find out which
setting is “cable select.”
2. Verify that the jumpers are set to “cable select”.
Figure 2-11
Warning: To avoid damaging your hard disks, unplug the power cord from the SC101
before adding or removing the disks.
To install an IDE hard disk drive into
your Storage Central:
1. Use a coin or screwdriver to open
the spring loaded cover lock by
turning it clockwise.
2. Remove the cover.
Figure 2-12
