NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
Preparing Your Network C-15
M-10153-01
Verifying TCP/IP Properties for Windows XP, 2000, and NT4
To check your PC’s TCP/IP configuration:
1. On the Windows taskbar, click the Start button, and then click Run.
The Run window opens.
2. Type cmd and then click OK.
A command window opens
3. Type ipconfig /all
Your IP Configuration information will be listed, and should match the values below if you are
using the default TCP/IP settings that NETGEAR recommends for connecting through a
router or gateway:
• The IP address is between 192.168.1.2 and 192.168.1.254.
• The subnet mask is 255.255.255.0.

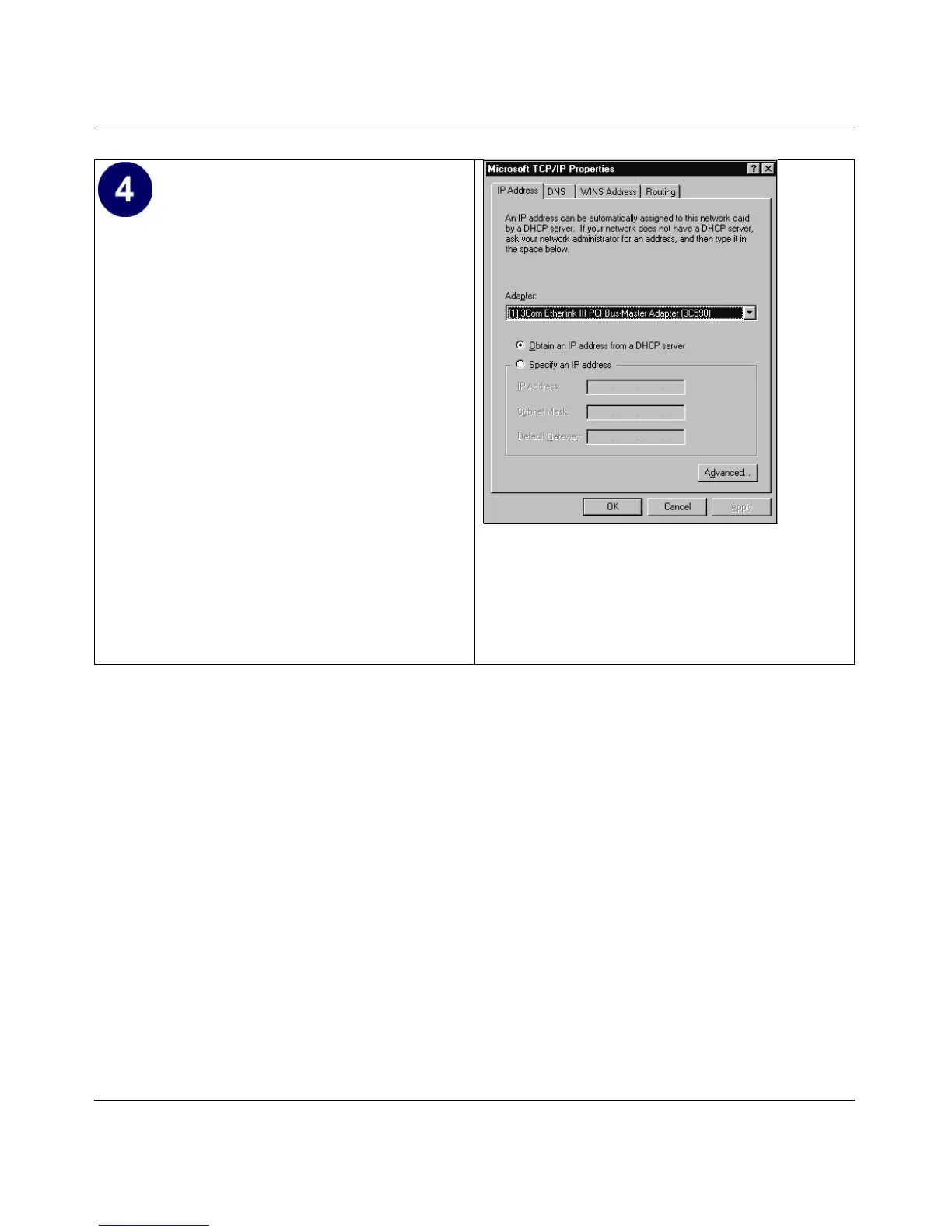

• The TCP/IP Properties dialog box now
displays.
• Click the IP Address tab.
• Select the radio button marked Obtain an IP
address from a DHCP server.
• Click OK. This completes the configuration
of TCP/IP in Windows NT.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
