NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
4-20 Wireless Configuration
M-10153-01
Configuring Advanced 802.11a Wireless Settings
From the main menu, click Advanced a Wireless Settings to view the configuration menu shown
below.

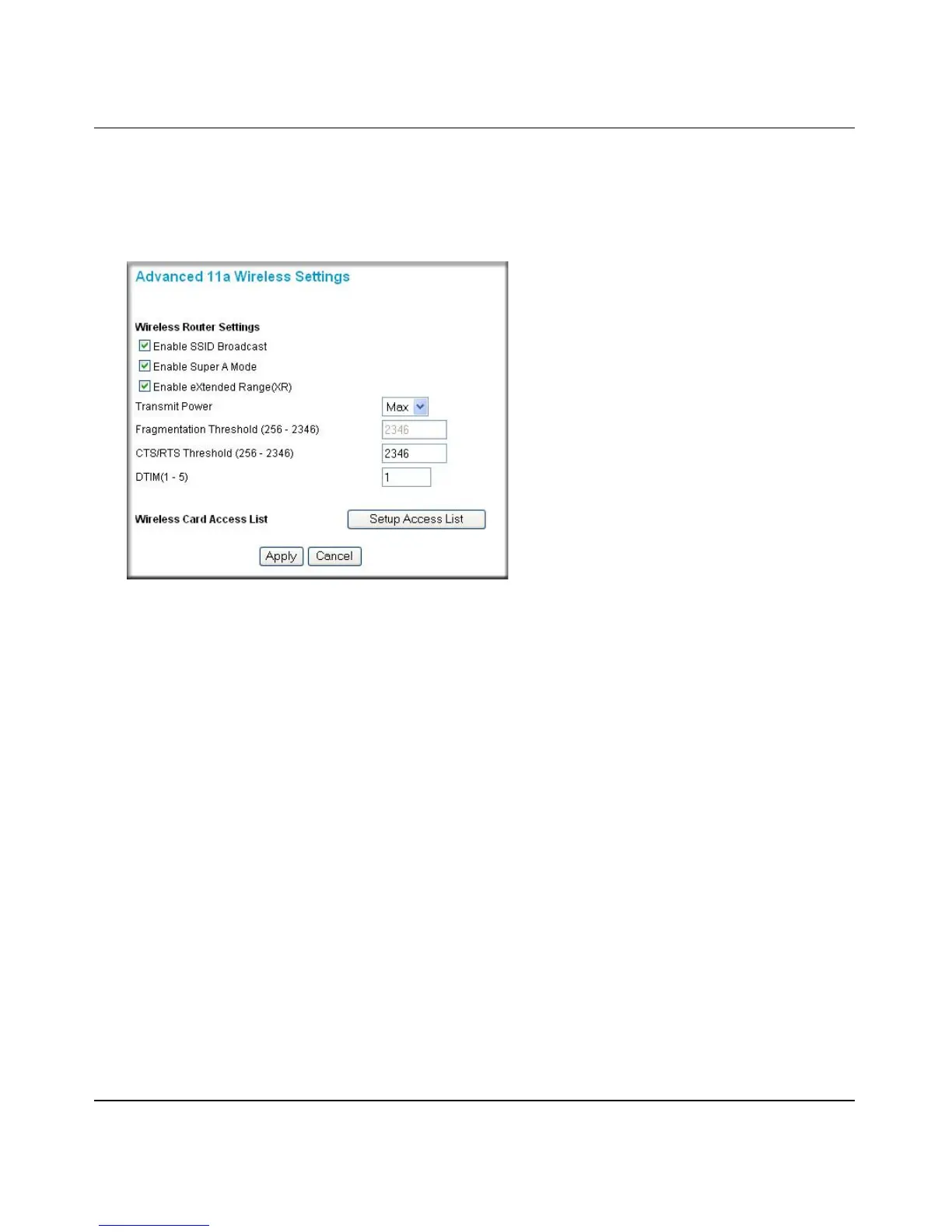

Figure 4-10: Advanced 802.11a Wireless Settings
• Enable SSID Broadcast — allow Broadcast of Network Name (SSID). If you disable
broadcast of the SSID, only devices that have the correct SSID can connect. Disabling SSID
broadcast nullifies the wireless network ‘discovery’ feature of some products such as
Windows XP.
• Enable Super A Mode — if enabled, the Wireless Router will enable data compression, packet
bursting and large frame support.
• Enable eXtended Range — eXtended Range (XR) technology provides significantly longer
range than basic 802.11 by maintaining connectivity when signals are made fainter when
passing through dense walls, floors, or other barriers. XR products require no additional
configuration and are fully interoperable with standard 802.11 technologies.
Note: The XR feature is NOT available when the wireless mode is “108Mbps only”.
• Transmit Power — Max, 75%, 50%, 25%, or Min. The default is Max.
• Fragmentation Threshold — value can be from 256 to 2346. The default is 2346.
• CRS/RTS Threshold — value can be from 256 to 2346. The default is 2346.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
