NETGEAR WGU624 User Manual

Maintenance 6-1
M-10153-01
Chapter 6
Maintenance
This chapter describes how to use the maintenance features of your Double 108 Mbps Wireless
Firewall Router WGU624. These features can be found by clicking on the Maintenance heading in
the main menu of the browser interface.
Viewing Wireless Router Status Information
The Router Status menu provides a limited amount of status and usage information. From the main
menu of the browser interface, click Router Status to view the status screen, shown below.

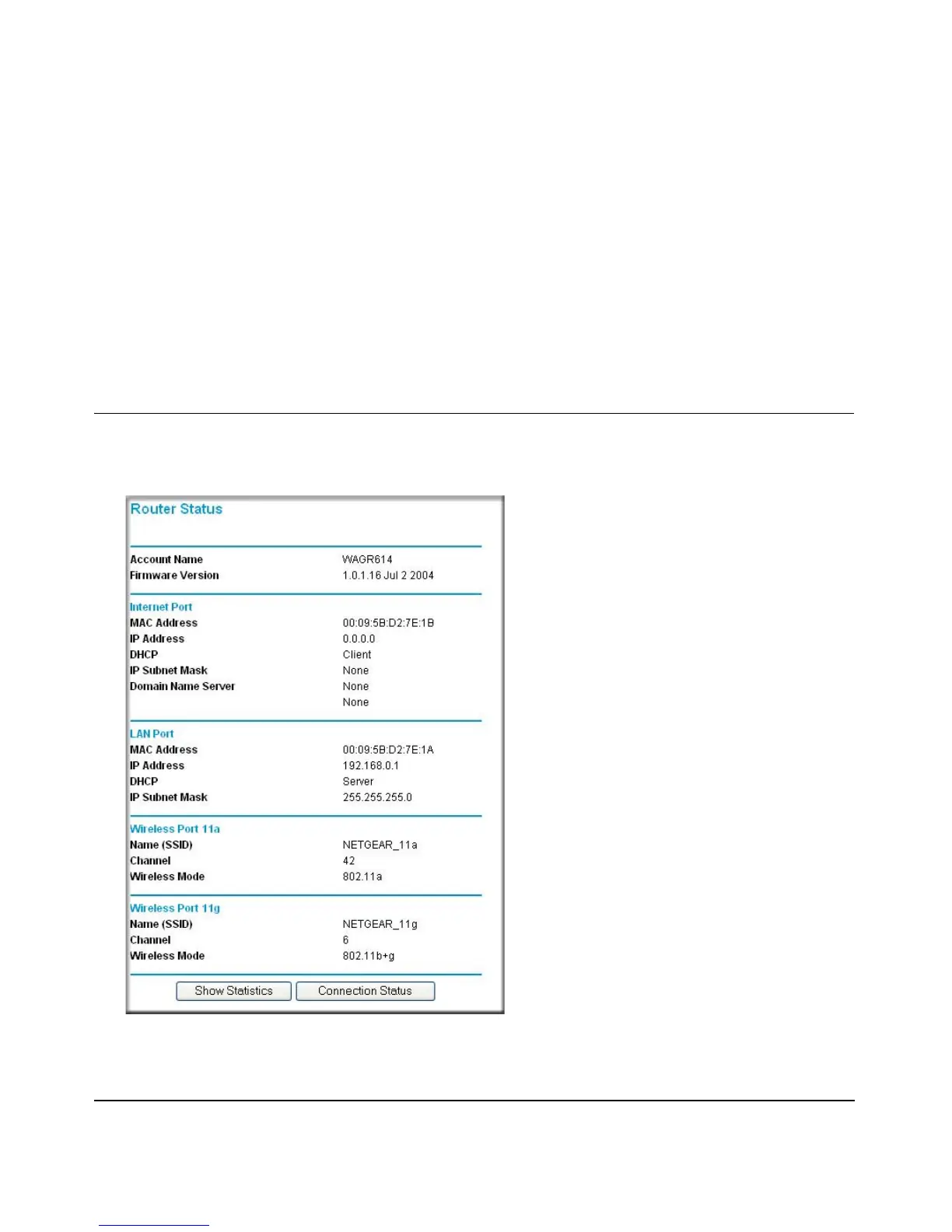

Figure 6-1: Router Status screen

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
