NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
Connecting the Router to the Internet 3-15
M-10153-01
Manual Telstra Bigpond Configuration
If your ISP uses Telstra Bigpond, select Telstra Bigpond for the Internet Service Provider in the
Basic Settings menu and you will see the following menu:

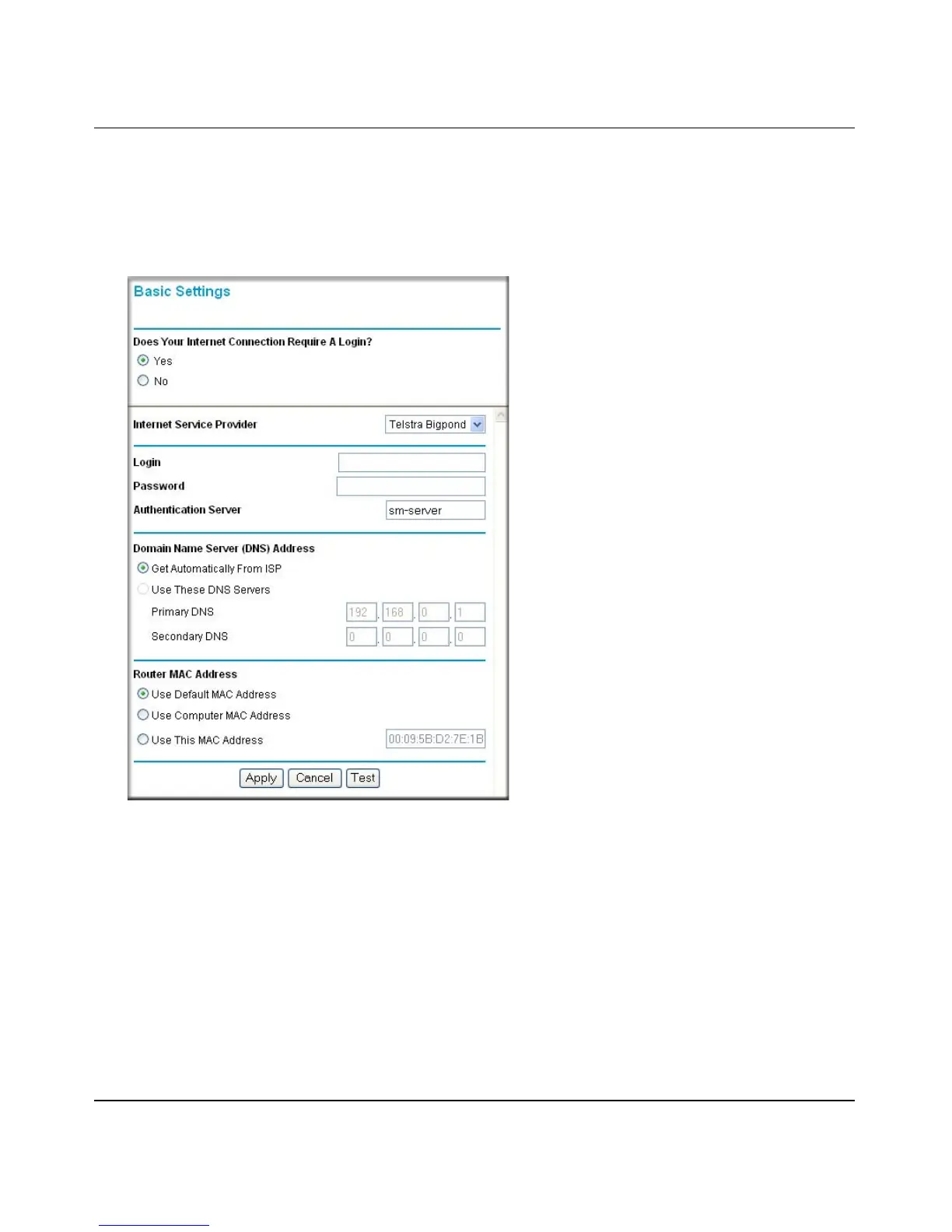

Figure 3-10: Telstra Bigpond Cable menu
To configure your Internet service connection for Telstra Bigpond, fill in the following fields:
• Enter your Login, Password and Authentication Server. These fields are case sensitive.
• If you know that your ISP does not automatically transmit DNS addresses to the router during
login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS
Server. If a Secondary DNS Server address is available, enter it also.
Note: If you enter DNS addresses, restart your computers so that these settings take effect.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
