NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
Maintenance 6-7
M-10153-01
Configuration File Management
The configuration settings of the WGU624 wireless router are stored within the router in a
configuration file. This file can be saved (backed up) to a user’s PC, retrieved (restored) from the
user’s PC, or cleared to factory default settings.
From the main menu of the browser interface, under the Maintenance heading, select the Backup
Settings heading to bring up the menu shown below.

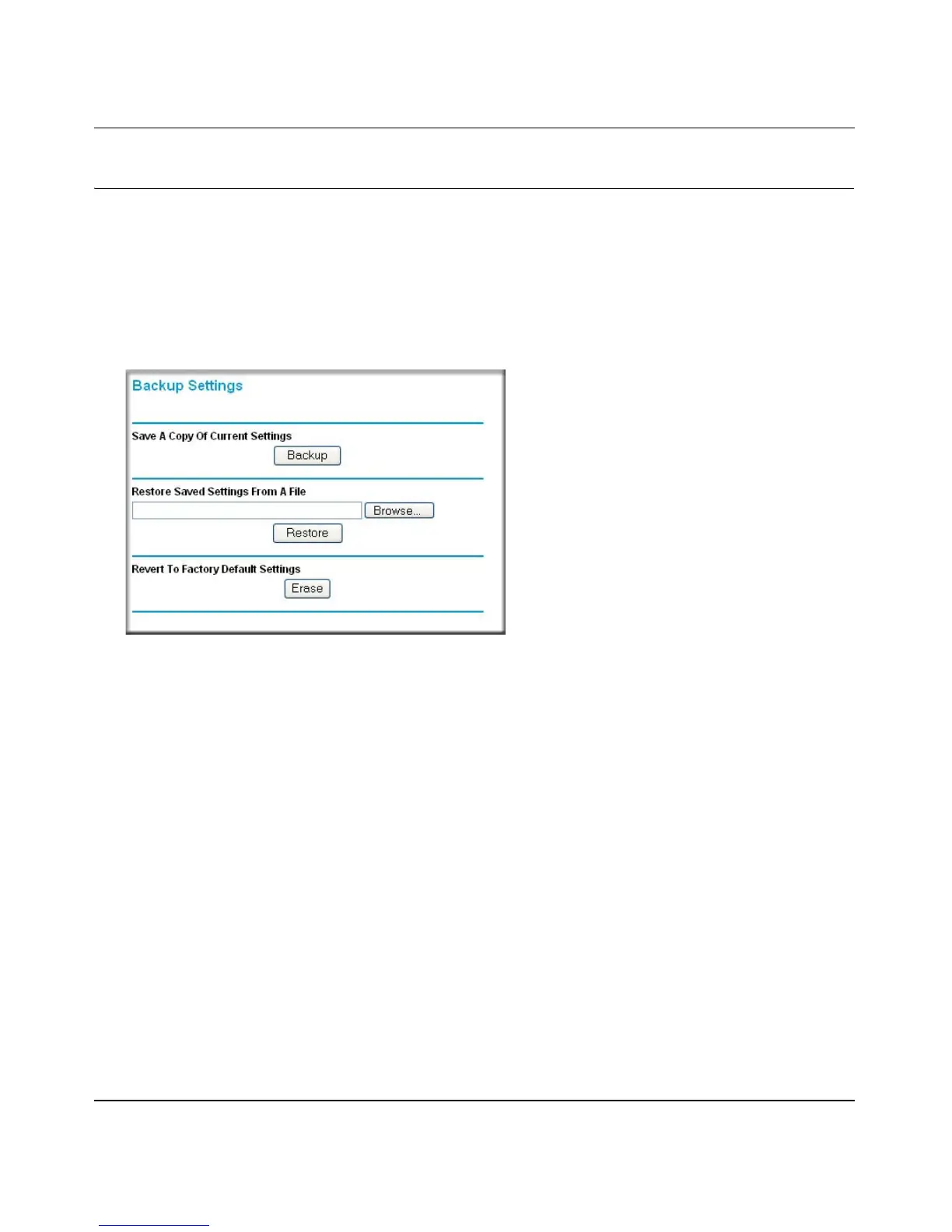

Figure 6-6: Backup Settings menu
Three options are available, and are described in the following sections.
Restoring and Backing Up the Configuration
The Restore and Backup options in the Settings Backup menu allow you to save and retrieve a file
containing your router’s configuration settings.
To save your settings, select the Backup tab. Click the Backup button. Your browser extracts the
configuration file from the router and prompts you for a location on your PC to store the file. You
can give the file a meaningful name at this time, such as pacbell.cfg.
To restore your settings from a saved configuration file, enter the full path to the file on your PC or
click the Browse button to browse to the file. When you have located it, click the Restore button to
send the file to the router. The router then reboots automatically.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
